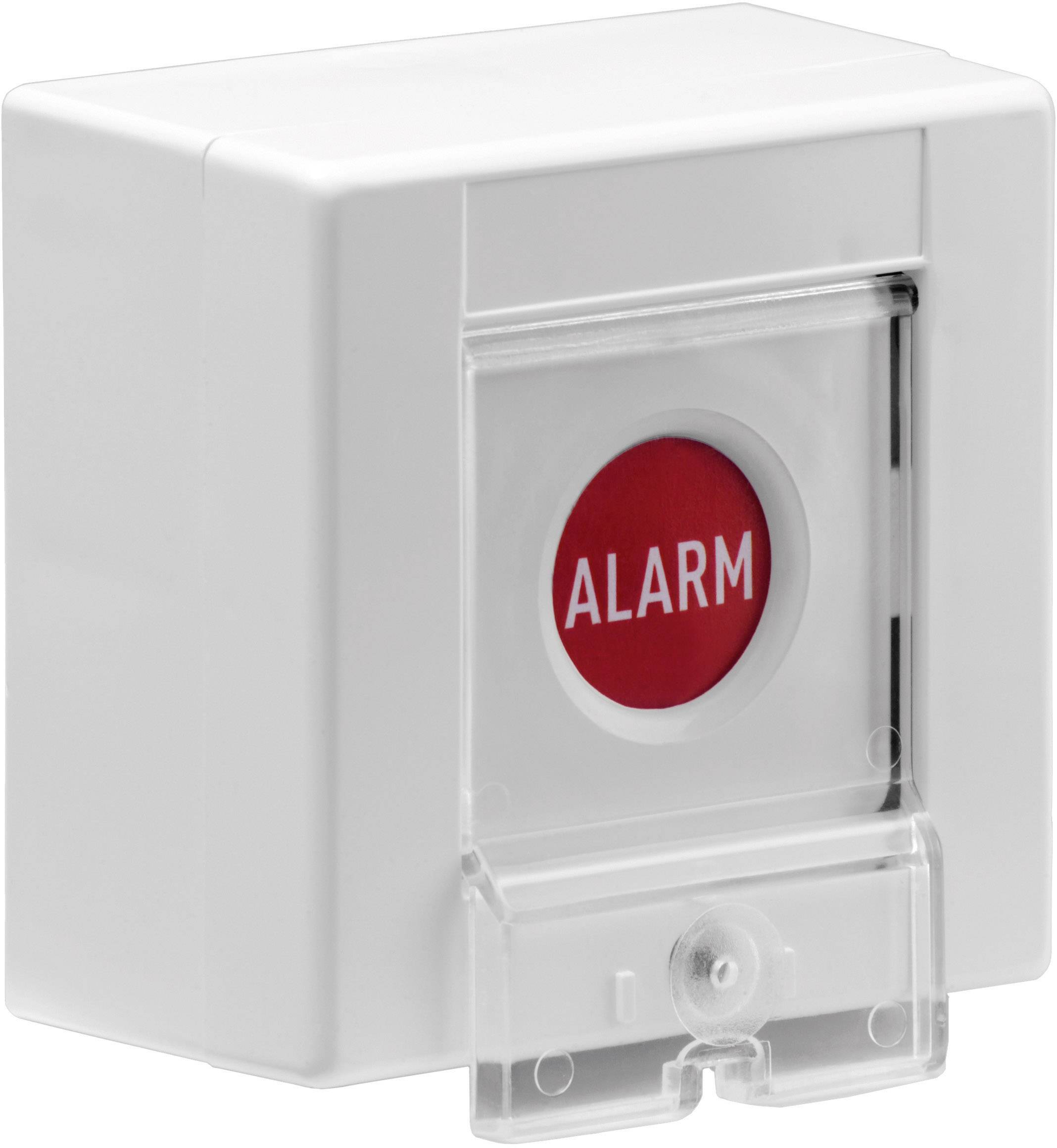

ABUS AZ6500 Panic button
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.11
€ 27.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Only 6 Piece(s) available
VdS AP hold up button
Highlights & Details
- Inconspicuous and discrete alarm
- For triggering a silent alarm
Technical specifications
- Switching capacity 3 A/75 V
- Dim
(W x H x D) 85 x 85 x 47 mm
- Product type
Panic button
- Factory colour
White
- Width
85 mm
- Height
85 mm
- Depth
47 mm
- Switching capacity
3A / 75 V
- Switching voltage
-
- Switching current
-
- Weight
180 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 753071 ABUS AZ6500 Panic button
Description
With the attack button you can trigger an attack alarm reliably, if you need help. The attack button, you can use as a stand-alone device or integrated into the burglar alarm system. The key is sabotage. For the assault and the tamper alarm is available one NO or NC contact available. The attack button is certified VSÖ and VdS C.
Features
- Tamper proof
- VdS C, VSÖ certified
- Connections 1 x NO/NC Alarm contact, 1 x NO/NC tamper contact
- Max. Switching power 3A/ 75V
- ABS casing material
- Protection type IP 32
- Wall mounting at site
- Operating temperature +5 ° - +55 ° C.
