ABUS FU7301B ABUS FU7301B Potentialfreier Glasbruchmelder Glass breakage detector
EAN:
Part number:
Item no:
Datasheet (PDF)
42 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€
Highlights & Details
Potential-free glass breakage detector (brown) with adhesive
- Potential-free glass breakage detector for attaching to the disc
- No power supply necessary
- Ideal for opening or mechatronics detector (terminal)
Technical specifications
- Cable type: 2-wire
- Detection range detector (m2): 4 m²
- Max. operating temperature: 55 °C
- Connections: NC switching contact max.
- Housing material: ABS
- Detection method: Acoustic
- Location: on glass surfaces
- Sensor type: piezo sensor
- Switching current: 15 mA
- Switching voltage: 15 V/DC
- Product type
Glass breakage detector
IP65
- Cable length
2.00 m
- Factory colour
Brown
- Width
18 mm
- Depth
9 mm
- Dim
(W x D) 18 mm x 9 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1234044 ABUS FU7301B ABUS FU7301B Potentialfreier Glasbruchmelder Glass breakage detector
User & Safety Instructions
User & Safety Instructions 1234044 ABUS FU7301B ABUS FU7301B Potentialfreier Glasbruchmelder Glass breakage detector
Description
Protect window panes effective against burglary
The wire detector monitors a single window with a radius of up to 2 m. For this purpose, the detector with the help of the enclosed adhesive directly to the window to be window.
Function and important assembling instructions
The detector detects the ultrasonic frequencies caused by breakage of glass and report the alarm center. It is at a distance of 20 to 50 mm to the frame of the window. Important: The detector should be located so as to be immediately noticed, if there is no contact more for the disk. The cable should also when opening and closing the window is not squeezed. The glass breakage detector requires no power supply.
This text is machine translated.
The wire detector monitors a single window with a radius of up to 2 m. For this purpose, the detector with the help of the enclosed adhesive directly to the window to be window.
Function and important assembling instructions
The detector detects the ultrasonic frequencies caused by breakage of glass and report the alarm center. It is at a distance of 20 to 50 mm to the frame of the window. Important: The detector should be located so as to be immediately noticed, if there is no contact more for the disk. The cable should also when opening and closing the window is not squeezed. The glass breakage detector requires no power supply.
This text is machine translated.
Features
- Potential-free glass breakage detector for attaching to the window (including suitable glue)
- No power supply necessary
- Ideal for mechatronic components with terminal or for use with radio opening detectors
- Cable length 2 m (2-wire)
- Detection range: Radius 2 m.
Scope of delivery

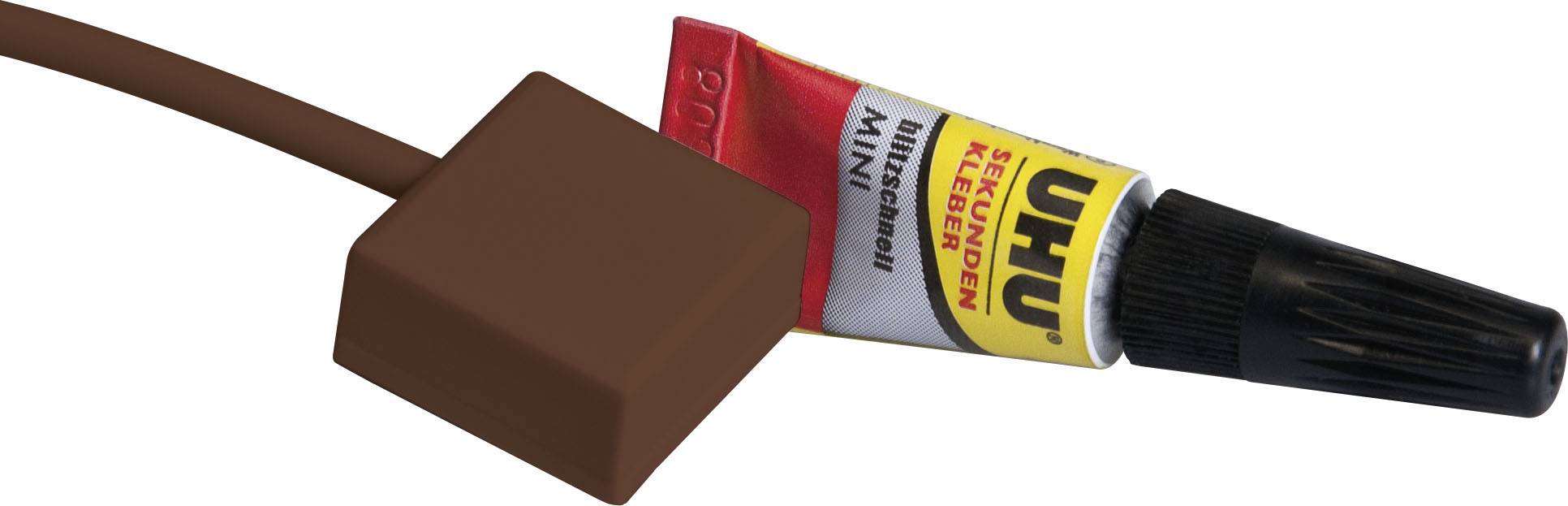

- Potential-free glass breakage detector including 2 m cable
- Adhesive
- User manual.
System requirements
- Connection to wire alarm system or existing radio-opening detector.
