Buy ABUS Interface converter RS232 auf RS485 Schnittstellen-Konverter TV8469

Adapter for converting RS485 to RS232 signal, grey housing with green connection terminal, DB9 plug visible below.

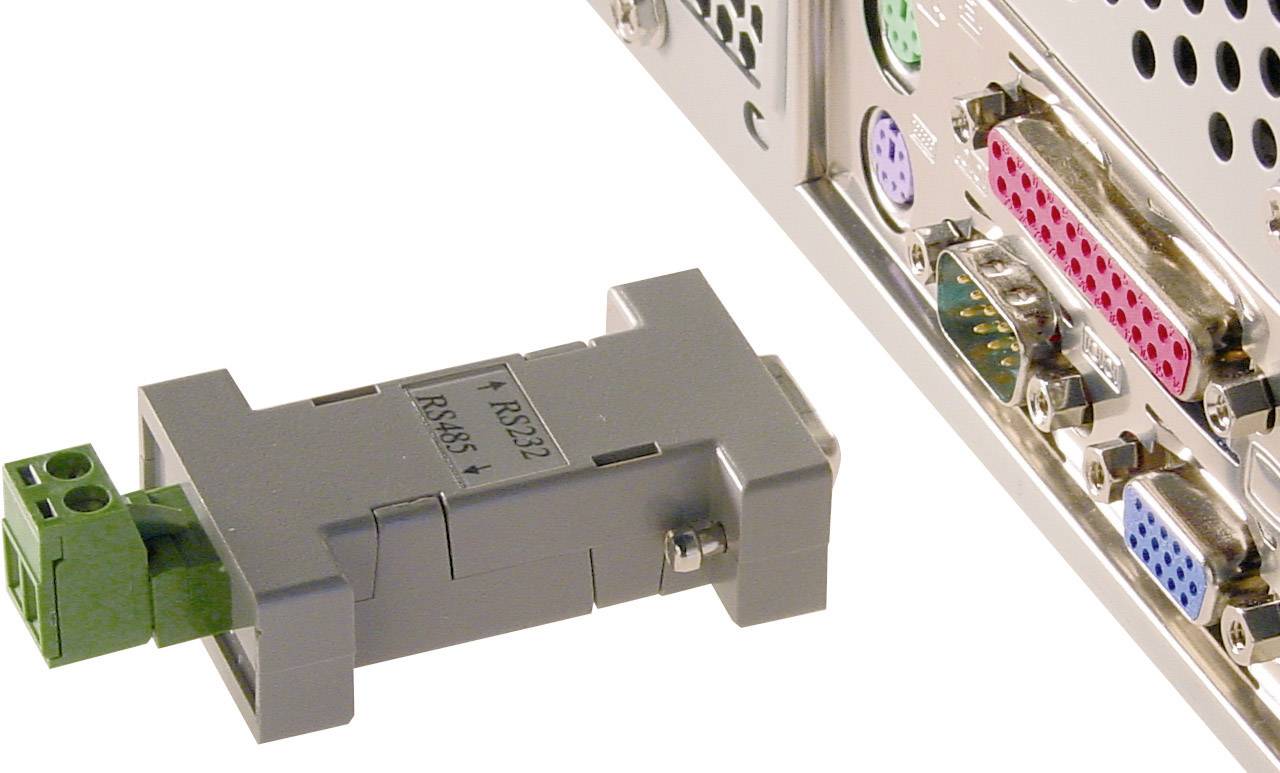

'RS232' Adapter beside the rear computer ports. Adapter connects serial interface with green connector.

1/2

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Interface converter RS-232 to RS485

Highlights & Details

Converts RS-232 to RS-485, semi-duplex

Technical specifications

Outputs: RS-232 / RS-485
Video output: -
Video input: -

Product type: Interface converter

Width: 17 mm

Height: 33 mm

Depth: 53 mm

Outputs: RS-232 / RS-485

Video output: -

Video input: -

Operating voltage: -

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 752666 ABUS Interface converter RS232 auf RS485 Schnittstellen-Konverter TV8469

User & Safety Instructions

User & Safety Instructions 752666 ABUS Interface converter RS232 auf RS485 Schnittstellen-Konverter TV8469

Description

With the help of the interface converter you can control a Speeddome camera (752777, 752790, 752804) via your PC.
The interface converter is connected to the PC via a serial connection (RS232), you connect the Speeddome to the interface converter via a 2-wired RS485 BUS cable. In all, you can use up to 31 Speeddome cameras with your PC. Thereby, one Speeddome camera is connected directly to the converter, the remaining 30 are connected to one another. The maximum transfer range from the interface converter to the last Speeddome is 1200 metres.
