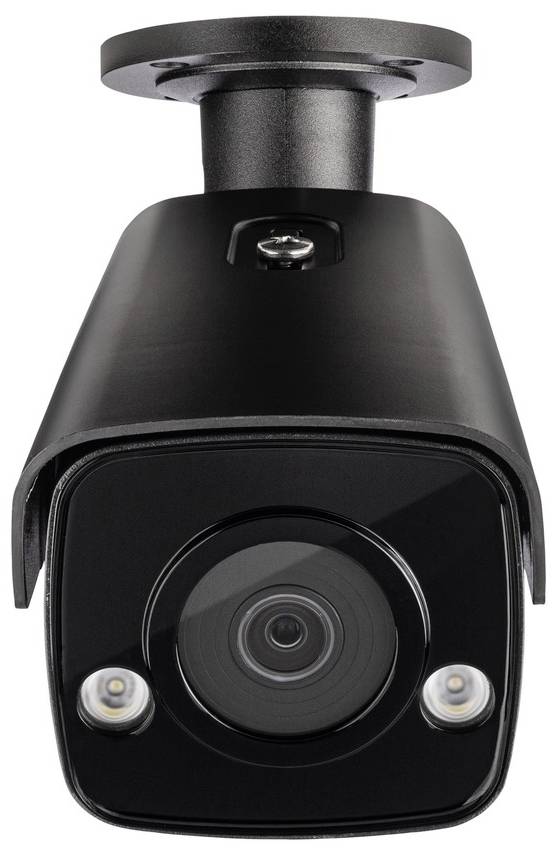

ABUS IPCS64611A LAN IP CCTV camera 2688 x 1520 p
EAN:
Part number:
Item no:
Datasheet (PDF)
LAN IP-Bullet camera;2688 x 1520 p;ABUS;IPCS64611AOutdoors
Highlights & Details
- 4 MPx Resolution (2,688 x 1,520 @ 25 fps)
- 2.8 mm fixed lens (108° viewing angle)
- Full-color day/night technology
Technical specifications
- 1 x RJ45, 1 x DC
- Minimum light (color): 0.0005 lx
- Aperture at minimum illumination (color): F1.0
- White-light LEDs 2 pieces
- PoE standard IEEE 802.3af
- Private zones: 4
- Number of users: 32
- Number of streams: 3
- Case material: metal
- Product type
CCTV camera
- Series
ABUS Professional
- Camera type
Bullet camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
2688 x 1520 p
- App compatibility
Yes
- Transfer type
LAN
- Used at
Outdoors
- Width
105 mm
- Height
105 mm
- Dim
(L x W x H) 282 x 105 x 105 mm
- Weight
1000 g
- Factory colour
Black
IP67
- Signal standard
IP
- Cable length
0 cm
- Camera type
IP camera
- Length
282 mm
- Focal length
2.8 mm
- IR coverage
50 m
- Keyboard layout
German, QWERTZ
- Microphone
No
- Sensor
1/1.8" Progressive Scan CMOS
- Additional IR light
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3088965 ABUS IPCS64611A LAN IP CCTV camera 2688 x 1520 p
User & Safety Instructions
User & Safety Instructions 3088965 ABUS IPCS64611A LAN IP CCTV camera 2688 x 1520 p
Description
DARK NIGHT: CLEAR DETAILS ON DISTANCE
This IP tube is a LAN camera with 4 MPx resolution and full color day/night function. With its white-light LEDs in IP67 housing, it can be used indoors and outdoors during day and night. Mobile access to the camera via ABUS link station APP.
Top surveillance: Strong in darkness
Clear color images in absolute darkness thanks to the full color day/night technology – rich in detail for a sound evidence. The low-light intensity is effectively amplified by the special lens and the extra-light-sensitive image sensor. The white-light LEDs provide extra light with fine dosing for the image sensor also on large distance, hardly visible for the eye.
Automatically Object detection
The security camera differentiates relevant movements (people, vehicles) from interferences (branches, light, etc.) – And minimizes unnecessary motion alarms.
Recording and compatibility
The recording is done on ABUS NVR, VMS/software or microSD card. The camera is compatible with ABUS Secvest, Secoris and WLX pro. Quick start Up Mounting with protected cable via installation box (TVAC32600). The software ABUS IP-Installer simplifies the setup on the network.
Notes: Without power supply, since PoE. The effective LED range varies depending upon the location of use.
This text is machine translated.
Features
- 4 MPx resolution (2,688 x 1,520 @ 25 fps) for solid surveillance images
- 2.8 mm fixed lens for a good overview (108° viewing angle)
- Highly detailed, well usable color pictures in darkness thanks to the full color day/night technology
- Automatically amplifies minimum ambient light using a special lens and very light-sensitive image sensor
- Subtle illumination of the field of vision with white light LEDs (up to 50 m range) for rich color images in total darkness (e.g. interior)
- Finely dosed illumination for the light-sensitive image sensor (hardly visible for the human eye)
- Object detection (people & vehicle): Video content analysis with fully automatic distinction between people / vehicles and interference (branches, lights, etc.)
- Intelligent video analysis with automatic Scene recognition (smart events) for precise motion alarms, recording and process optimization
- Output of 3 video streams in ideal resolution for e.g. live images, recording, mobile access, etc.
- Robust, weatherproof housing (IP67)
- Supports H.264, H. 265, MJPEG (inc. Dynamic GOP)
- MicroSD card slot for internal data storage, encrypted for high data security (optional)
- 12 V DC & PoE (802.3af)
- Alerts: E-mail, APP push, FTP, CMS
- Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display (not in Smart event mode)
- Digital Zoom
Scope of delivery
- 1x IP Tube 4 MPx black (2.8 mm, WL)
- 1x quick instructions
- 1x safety instructions
Hints
Memory card and power supply not included in delivery
