Buy ABUS MK1010B Magnetic contact

A brown temperature sensor with a long cable and mounting accessories. Ideal for air conditioning or heating systems for precise temperature measurement.

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

14-day return policy included

Report legal concerns

NC opening detector switch, sabotage protected, (VDS approval pending)

Highlights & Details

VDS approval applied for

Technical specifications

VdS-B

Dim: (L x W x H) 12 x 12 x 48 mm (with mount casing)

Product type: Magnetic contact

Factory colour: Brown

Width: 12 mm

Height: 48 mm

Dim. (add. text): with mount casing

Length: 12 mm

Contact type: NC

Cable length: 4 m

Switching capacity: 5 W

Switching voltage: 100 V DC

Switching current: voltage:100 mA

VdS No.: G 105519

Weight: 0.12

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 750846 ABUS MK1010B Magnetic contact

User & Safety Instructions

User & Safety Instructions 750846 ABUS MK1010B Magnetic contact

Certificate

Certificate 750846 ABUS MK1010B Magnetic contact

Description

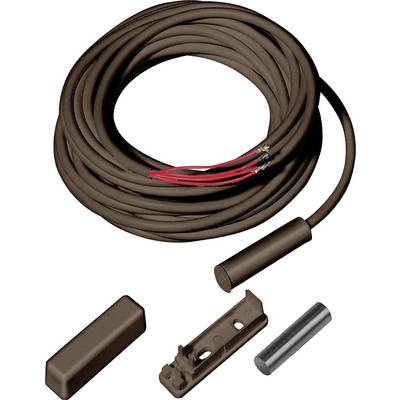

This opening detector features not only the two NC alarm contacts, but also an integrated sabotage loop. This makes it much more difficult to interfere with the connection cable. The reed switch and the magnet can be installed in parallel or end-to-end.
