Buy ABUS MK1010W ABUS SECURITY-CENTER - MK1010W Ein-/AufbauÖffnungsmelder VdS-B weiß Magnetic contact

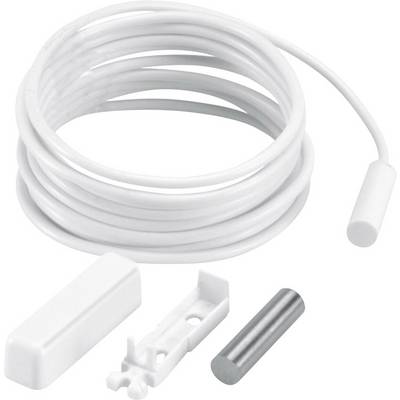

A white magnetic sensor with cable and accessories, including mounting bracket and metal cylinder, against a white background. Used for security applications.

Fast track dispatch on Tue, 6 Oct

121 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

14-day return policy included

Report legal concerns

NC opening detector switch, sabotage protected, (VDS approval pending)

Highlights & Details

VDS approval applied for

Technical specifications

VdS-B

Dim: (L x W x H) 12 x 12 x 48 mm (with mount casing)

Product type: Magnetic contact

Factory colour: White

Width: 12 mm

Height: 48 mm

Dim. (add. text): with mount casing

Length: 12 mm

Contact type: NC

Cable length: 4 m

Switching capacity: 5 W

Switching voltage: 100 V DC

Switching current: voltage:100 mA

VdS No.: G 105519

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 750755 ABUS MK1010W ABUS SECURITY-CENTER - MK1010W Ein-/AufbauÖffnungsmelder VdS-B weiß Magnetic contact

Description

This opening detector features not only the two NC alarm contacts, but also an integrated sabotage loop. This makes it much more difficult to interfere with the connection cable. The reed switch and the magnet can be installed in parallel or end-to-end.
