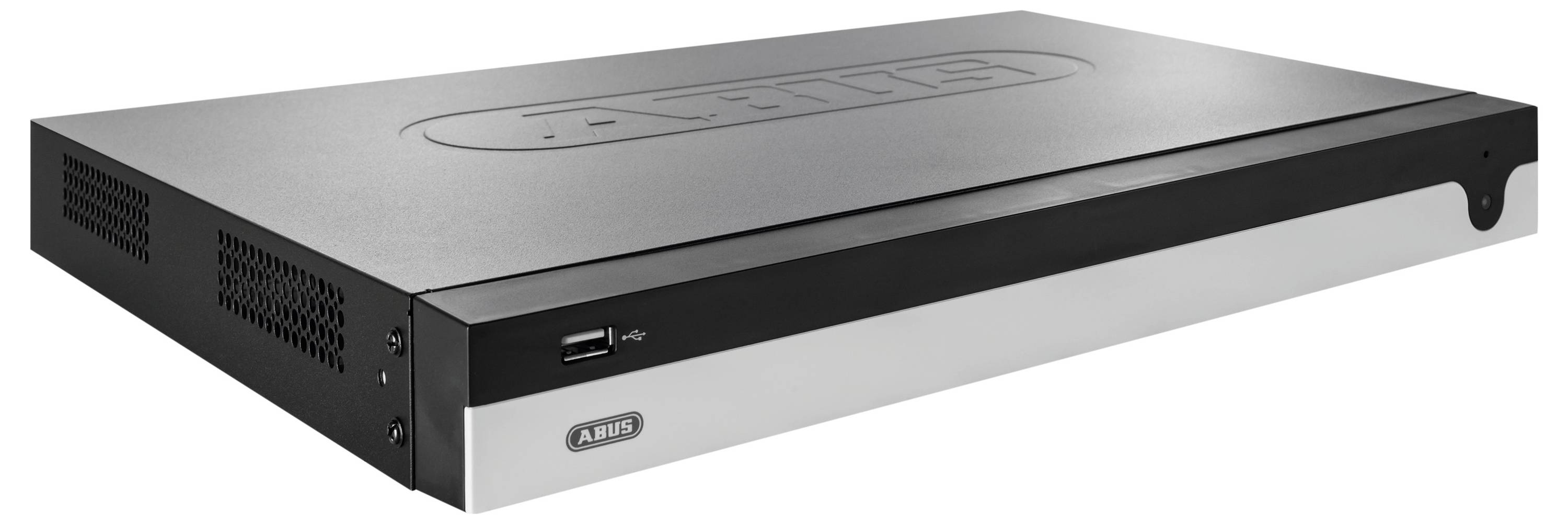

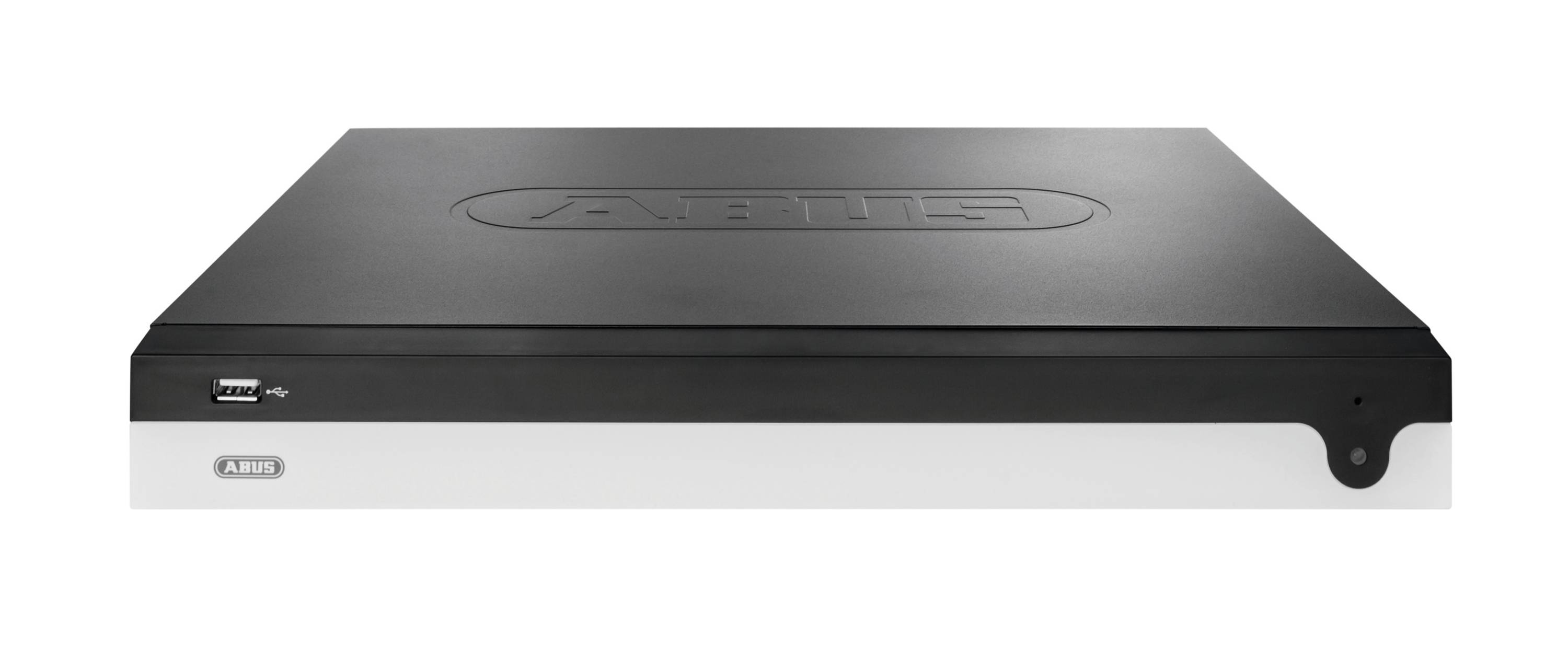

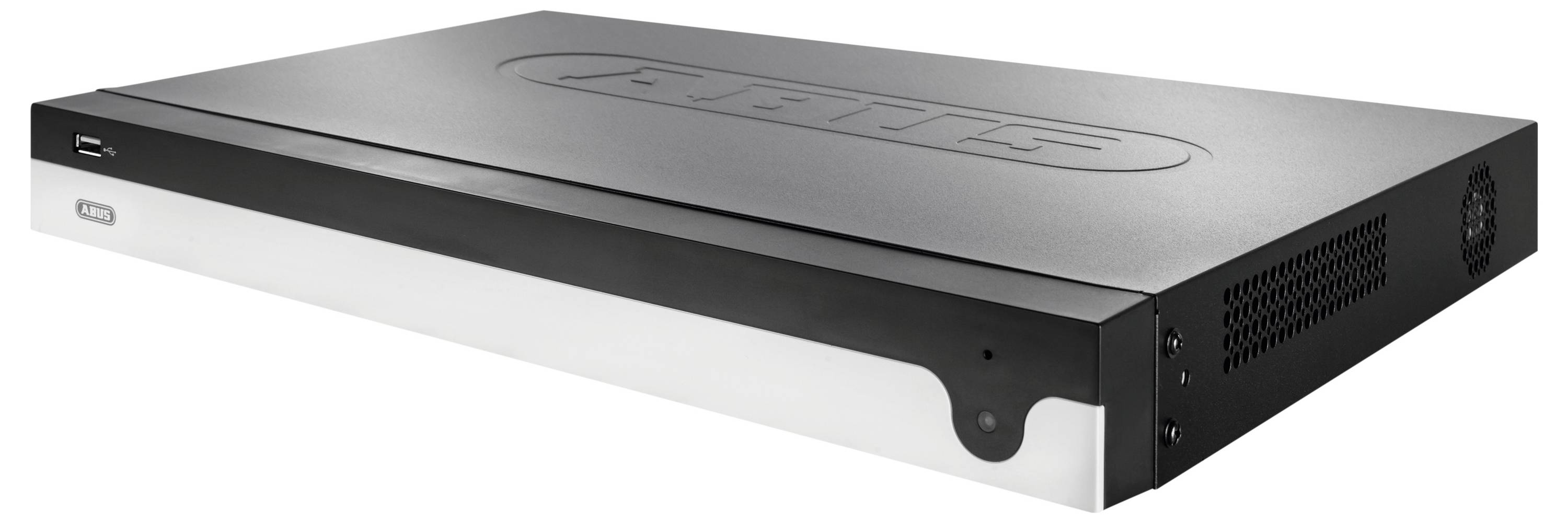

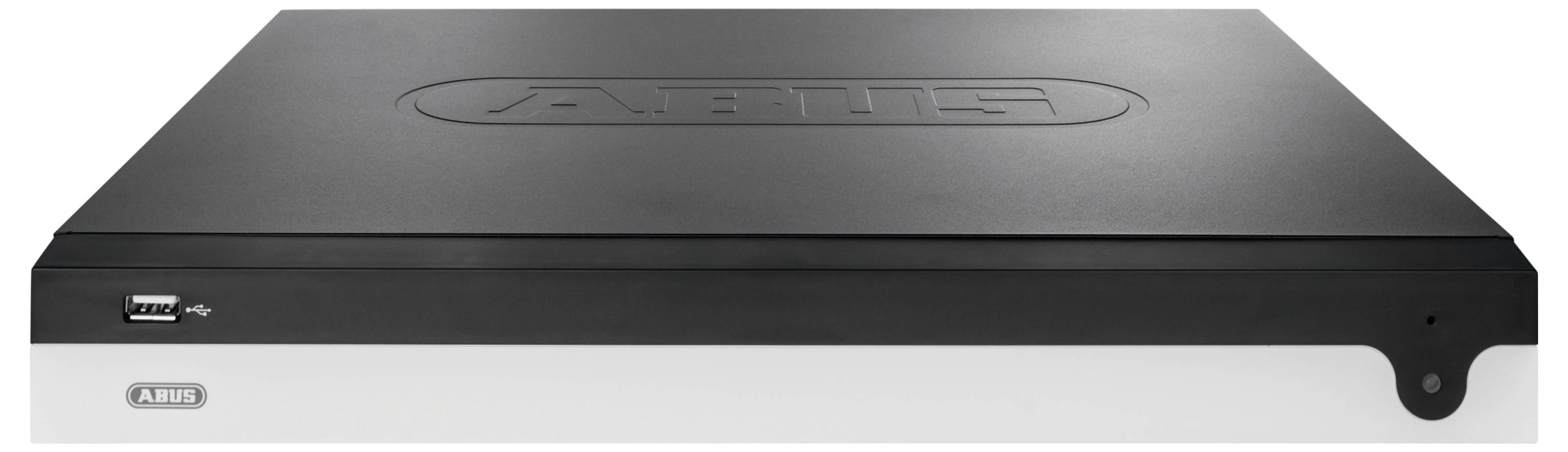

ABUS NVR10031 Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
16-channel network video recorder (NVR)
- Live view and recording of up to 16 IP cameras @ 8 MPx (4K)
- Performance network data throughput with up to 416 MBit/s (160 MBit/s in / 256 MBit/s out)
- Simple operation locally on the device, via web browser, ABUS CMS software or APP
- Process the VCA function from ABUS IP cameras for accurate detection and distinction of people and vehicles in real time
- Manual or controlled recording based on schedule, motion detection, alarm input or VCA
- Recording on up to 2 SATA hard disks
Technical specifications
- Product type
Network video recorder
- Signal standard
IP
- Channels
16
- Recording mode
Movement detection
Manual
Preset

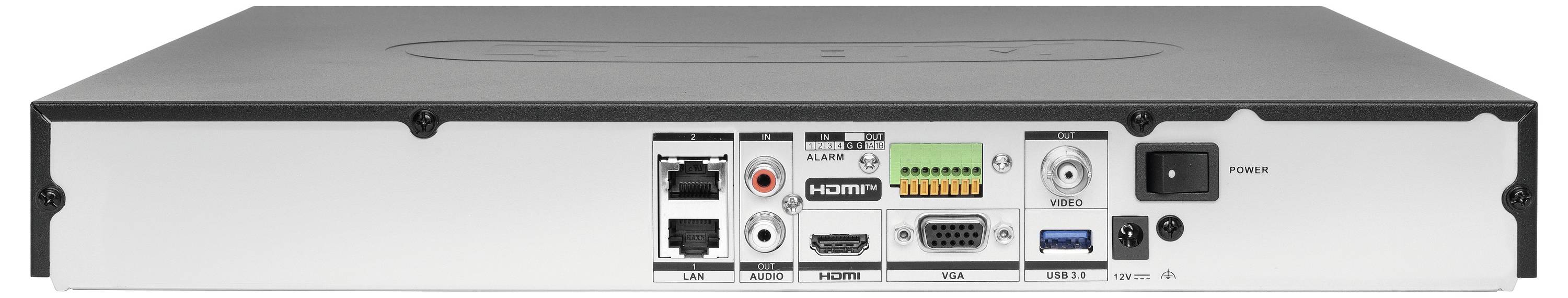

- Outputs
HDMI
VGA
BNC
RCA
USB
RJ45
- Inputs
RJ45
RCA
USB
- Factory colour
Black-silver
- Width
380 mm
- Height
315 mm
- Depth
50 mm
- Weight
1.8 kg
- Dim
(W x H x D) 380 x 315 x 50 mm
- Series
ABUS Smart Security World
- Memory expansion up to
16 TB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3795544 ABUS NVR10031 Network video recorder
User & Safety Instructions
User & Safety Instructions 3795544 ABUS NVR10031 Network video recorder
Description
Stream, operate and record up to 16 cameras
Thanks to intuitive installation wizards, setting up the cameras in the recorder is quick and safe. The clear menu allows an easy and fast programming. All ABUS cameras are integrated via protocol.
Free selection while operating
The local menu of the live view is clearly arranged and self-explanatory. Alternatively, the recorder can also be accessed via a web browser, ABUS CMS software or APP.
ABUS link station
The ABUS NVRs support the service ABUS LINK STATION. This allows easy setup in the APP. The access to the NVR from the Internet is done without the cumbersome port forwarding. Furthermore, the service provides a solution if there is only one IPv6 Internet address at the site.
Efficiency in everyday life
Fast and secure access control via the connectable ABUS license plate recognition camera. In the event of an event, a lot of time can be saved: The integrated motion detection with object detection (human/vehicle) enables a structured and efficient search of the events even for older ABUS IP cameras (see compatibility list).
This text is machine translated.
Thanks to intuitive installation wizards, setting up the cameras in the recorder is quick and safe. The clear menu allows an easy and fast programming. All ABUS cameras are integrated via protocol.
Free selection while operating
The local menu of the live view is clearly arranged and self-explanatory. Alternatively, the recorder can also be accessed via a web browser, ABUS CMS software or APP.
ABUS link station
The ABUS NVRs support the service ABUS LINK STATION. This allows easy setup in the APP. The access to the NVR from the Internet is done without the cumbersome port forwarding. Furthermore, the service provides a solution if there is only one IPv6 Internet address at the site.
Efficiency in everyday life
Fast and secure access control via the connectable ABUS license plate recognition camera. In the event of an event, a lot of time can be saved: The integrated motion detection with object detection (human/vehicle) enables a structured and efficient search of the events even for older ABUS IP cameras (see compatibility list).
This text is machine translated.
