ABUS Performance Line TVVR33622D Analog, AHD CCTV camera set 6-channel incl. 2 cameras 1920 x 1080 p 1 TB
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 289.92 / piece)
€ 335.29
-14 %
€
Highlights & Details
ABUS 6-channel Analog, AHD CCTV camera set 1 TB incl. 2 cameras for Outdoors, Indoors Performance Line
- Complete set with 2 analogueue mini dome cameras for video surveillanceInstallation, commissioning & configuration in a few stepsBrilliant pictures even with a lot of backlight, especially little light as well as darknessQuickly find searched scenes/recordings through clear playback view
Technical specifications
- CCTV features
IR LEDs
- Signal standard
Analog
AHD
- Channels
6
- Sensor type
CMOS
- Used at
Outdoors
Indoors
- Recording mode
Manual
Preset
Movement detection
Alarm
- Memory capacity
1 TB
- IR range (max.)
30 m
- Focal length
2,8 mm
- Max. viewing angle hor.
106°
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.005 lx
- Receiver size
W x L x H 315 x 240 x 48 mm
- Transmitter dimensions
Ø x H: 89.47 x 68.2 mm
- Weight
0.10
- Resolution (max.)
1920 x 1080 p
- Product type
CCTV camera set
Documents & Downloads
Datasheet
Datasheet 2616568 ABUS Performance Line TVVR33622D Analog, AHD CCTV camera set 6-channel incl. 2 cameras 1920 x 1080 p 1 TB
User & Safety Instructions
User & Safety Instructions 2616568 ABUS Performance Line TVVR33622D Analog, AHD CCTV camera set 6-channel incl. 2 cameras 1920 x 1080 p 1 TB
Description
All in one Video surveillance as required for operation, retail or home.Save time and money with this all-in-one set. You do not have to purchase everything separately, because the set contains with two surveillance cameras, a hybrid video recorder and all accessories all parts for the upgrade or construction of a professional surveillance system. The hard disk, the cabling and a computer mouse are practically available. And it becomes even cheaper because you do not have to organize a separate power supply for the analogueue HD cameras – one combination cable for each camera suffices to the recorder – data and power are flowing.The set can be operated independantly of the company or home network, which was a great fail-safety. If you want to access while traveling: The integration in your network takes only a few steps. Individual settings can then also be made remotely. Clever modes help you to quickly and efficiently search for recordings and scenes. The strong data compression ensures efficient storage utilization. Thus, according to requirements and depending on the configuration, it is possible to record for weeks or months – e.g. by manual triggering or motion detection. The mini dome cameras are ideal for discreet surveillance from the ceiling due to their design. Backlight situations (outside in sunshine, generally in entrance areas) master the cameras particularly well and even in extremely low light you get a sharp color image. Night vision is up to 30 meters.ABUS Link Station-App provides users with, for example Motion alarm a push message. The app's Pro version offers unlimited mobile access. With the Lite version free: Up to 60 minutes/month data stream (live view/playback).
This text is machine translated.
This text is machine translated.
Features
- All-in-one set of two analogueue HD surveillance cameras for indoor/outdoor use, hybrid video recorder including 1 TB hard drive/HDD (up to 10 TB possible), USB wireless mouse with batteries, two 30 m combination cables etc.Installation in a few steps; commissioning directly via monitor, or via PC/browser and free ABUS IP-Installer software; configuration with established user interface (motion detection, schedules etc.)Mini dome cameras with true WDR function (120 dB), ultra low light function, IR LEDs for night vision up to 30 meters (depending on the installation location), wind and weather suitable (protection class IP67), full HD resolution (2 megapixels, 1080p) and 106 degree viewing angleRecorder with quiet operation (without fan); supports the simultaneous display of several live streams on one monitor (Multi-View); fast finding of searched scenes through clear playback viewAlarm as required by a warning tone at the recorder, screen display (on-screen display/OSD signal), e-mail and/or push message on the app Easy mobile access to live streaming and recordings with smartphone/tablet via ABUS Link Station appConvenient management of several recorders on a central PC via free Central Monitoring Station software (ABUS CMS); up to 256 recorders and 1,024 cameras, if required in the technology mix (IP, Analogue HD)Can be extended at any time to a total of 4 analogueue HD cameras and 2 IP cameras (up to 2 or 6 MP); if required, all 6 channels can be used with IP cameras; also ideal for retrofitting/adding older systems (supports TVI, AHD, CVI and CVBS).
Scope of delivery

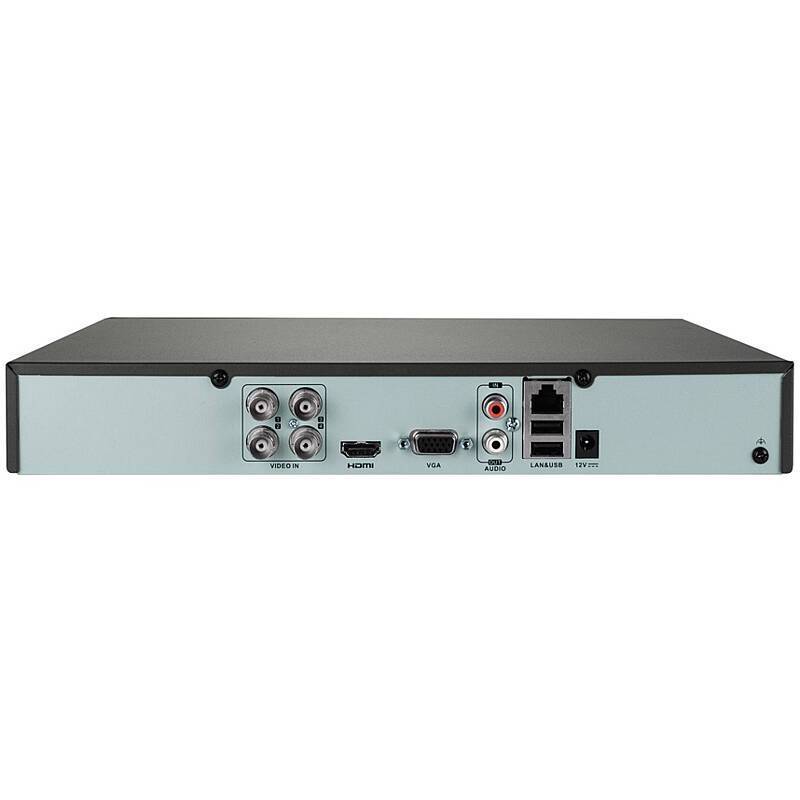

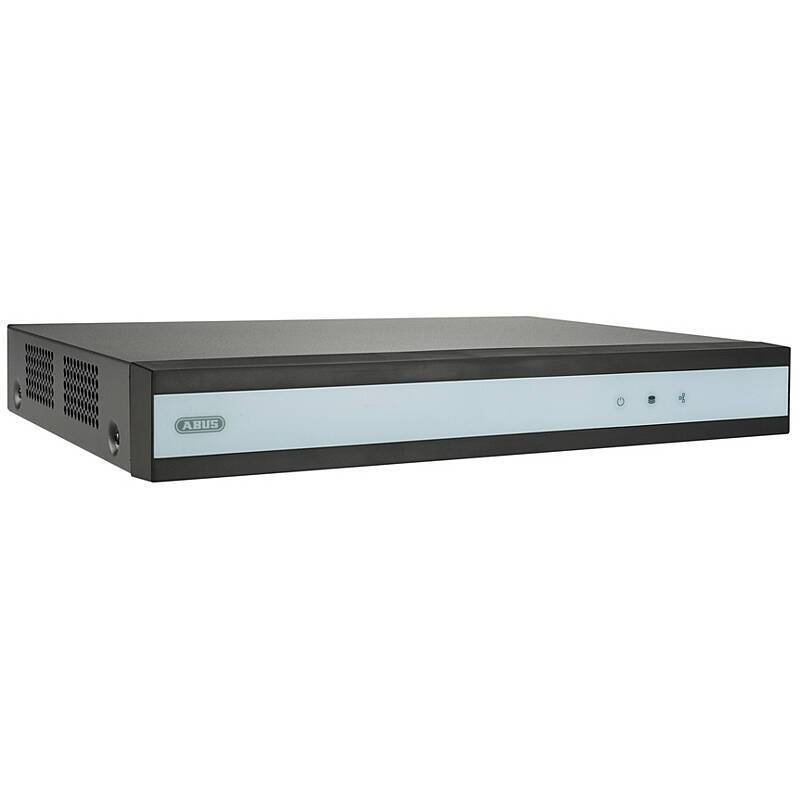

- 1 x 6 channel hybrid recorder (TVVR33602)

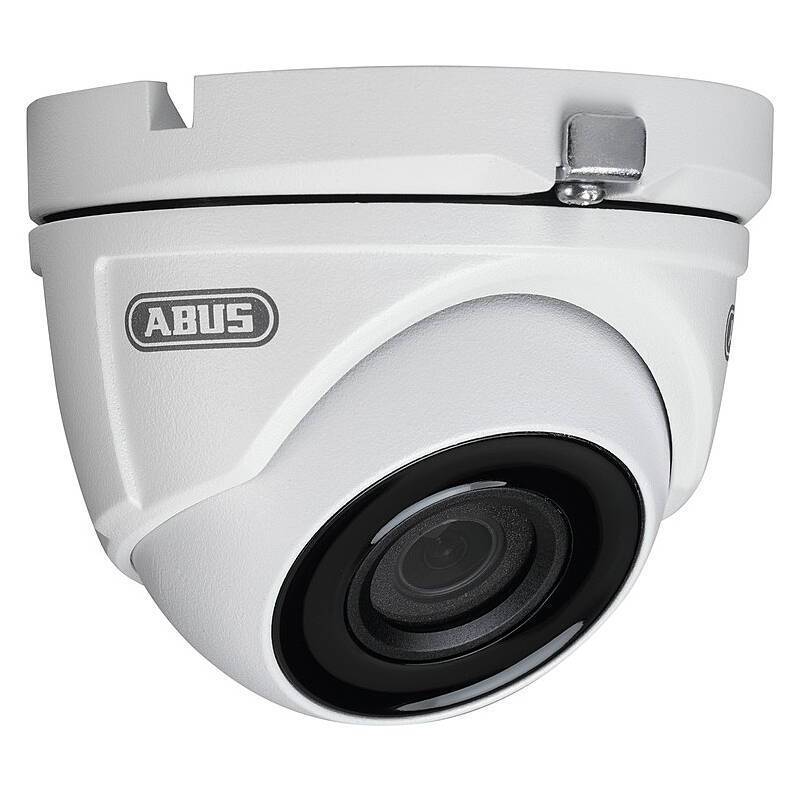

- 2 x 2MPx Mini Dome camera (HDCC32562)
- 1 x power supply recorder including multi-adapter (EU, AU, UK)
- 2 x power supply camera incl. multi-adapter (EU, AU, UK)
- 2x 30m combination cable (cameras)
- 1 x 1 m network cable (recorder)
- 1 x USB wireless mouse
- 2 x size AAA batteries
- 1 x 1 TB 2.5" SATA hard-disk (ready pre-installed)
- Instructions
- Screws.
System requirements
- Windows, iOS, Android
