ABUS Schloss / Zutrittskontrolle TVAC35500 PSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 4 Piece(s) available
Highlights & Details
2 A power supply unit for CCTV systems
- Integrated charge regulation for the 12 V/7 Ah lead gel rechargeable battery
- 8-pole connection strip, individually protected
- LED-control display for mains and fuse
Technical specifications
- Audio inputs: 0
- Output voltage: 12 VDC
- Operating voltage 230 V/AC
- Video input
0
- Product type
PSU
- Outputs
12 V/DC 2.5 A
- Weight
4.2 kg
- Width
338 mm
- Height
281 mm
- Depth
86 mm
- Factory colour
Multicolour
- Audio inputs
0
- Output voltage
voltage12 V DC
- Operating voltage
230 V AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 751332 ABUS Schloss / Zutrittskontrolle TVAC35500 PSU
User & Safety Instructions
User & Safety Instructions 751332 ABUS Schloss / Zutrittskontrolle TVAC35500 PSU
Description

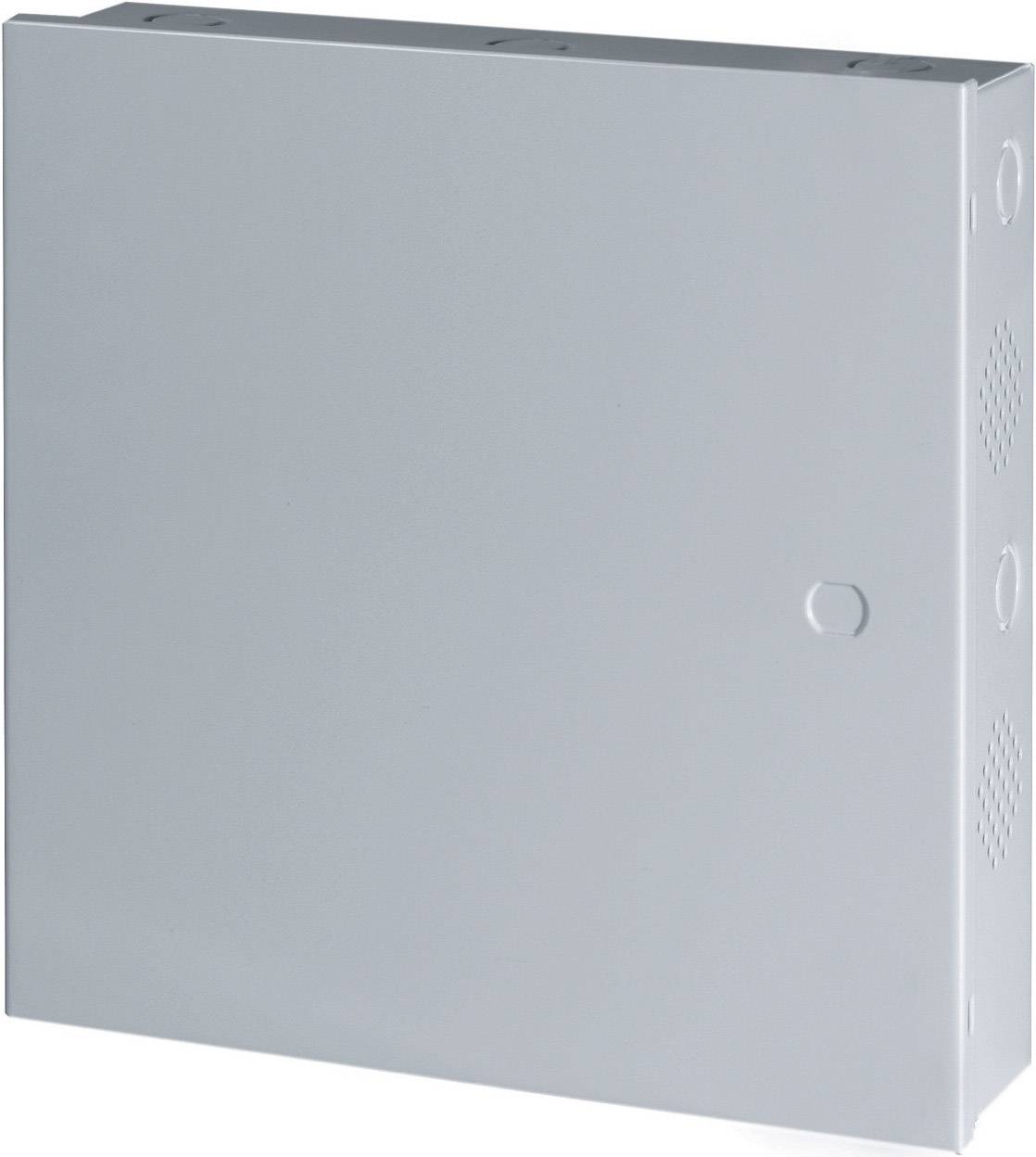

This stabilised power supply unit in a robust metal case provides easy access to the central voltage supply for your camera or alarm system. The power unit has space for a 12 V / 7 Ah emergency power rechargeable battery, in order to continue to supply your safety systems, even when the power fails. The connections for the power supply to your camera are secured individually. An LED control display for the mains and fuses enables simple, visual monitoring.
Features
- Input voltage: 230 V/AC
- Output voltage: 12 V/DC (stabilized)
- Nominal current: 2 A
- 8 separately secured outputs
- Overload and short circuit protection
- Inclusive of charging electronics for 7 ah lead accumulator
- Sabotage-supervised (cover switches)
- LED status display
Scope of delivery
- Power mains adapter
- Operating instructions
