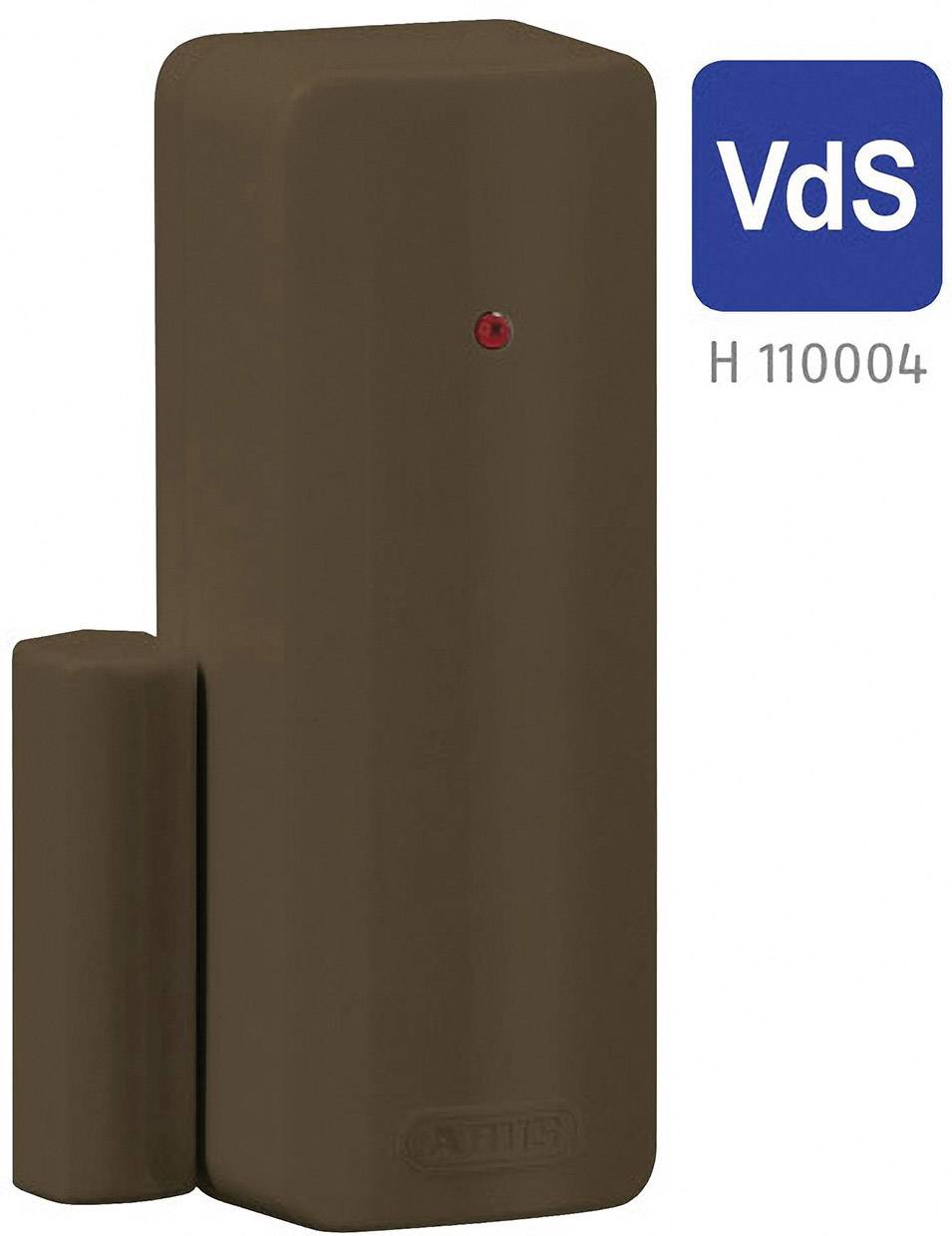

ABUS Secvest Funk-Öffnungsmelder CC braun FUMK50000B Wireless door alarm Brown ABUS Professional, ABUS Secvest

The radio opening detector is a component of the Secvest 2WAY and is also suitable for the terxon with a wireless expansion module. Unauthorized opening of doors and windows is a magnetic contact detected and reported to the radio controlled alarm control unit. The optimum installation site of the radio-controlled contact switch is in the middle of the door or window frame. Also be mounted at the bottom of the window frame is possible if the window is to be tilted at secured magnetic contact. The radio opening-detector consists of a detector and a magnet. These are parallel to each other - at a distance between 3 and 10 mm. The detector is triggered as soon as the distance increases. The wireless opening detectors for the Secvest 2WAY is in elegant white (FU 8320 W/FU 8321 W) and in brown (FU 8320 B/FU 8321 B). When wired connection of additional zones, you have the choice between the NC wiring (FU 8320 B/FU 8320 W) and the deol wiring (FU 8321 B/FU 8321 W). For the latter, are included in the delivery is integrated: a line resistance (2k2) and an alarm resistance (4k7). The additional reporting zone connect for example with a passive glass breakage detector. Thus you protect not only against unauthorised opening the window, but are also alerted when the glass is broken. Other settings, such as the deactivation of the LED or the use of the detector as a pure radio module are selected with a jumper.

This text is machine translated.
