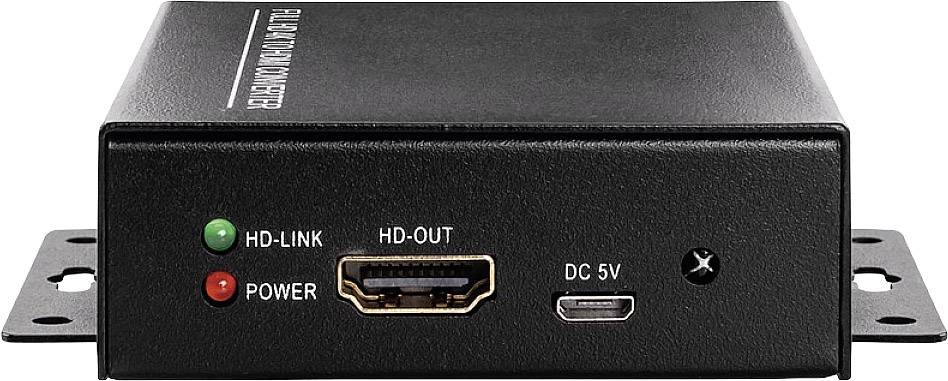

ABUS TVAC22400 HDMI converter
EAN:
Part number:
Item no:
Datasheet (PDF)
4K analogueue HD to HDMI converter
Highlights & Details
- For live viewing of an analogue HD camera on a monitor
- For any monitor or TV screen with HDMI
- Ideally suited for sales rooms, for example for confrontation monitors
Technical specifications
- Connections: 1 x Micro USB B for DC, 2 x BNC, 1 x HDMI
- VIDEO SYSTEM: TVI, CVI, AHD, CVBS
- Video input
1 x BNC
- Product type
HDMI converter
- Outputs
1 x HDMI, 1 x BNC (loop out)
- Weight
190 g
- Width
110 mm
- Height
95 mm
- Length
25 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248326 ABUS TVAC22400 HDMI converter
User & Safety Instructions
User & Safety Instructions 2248326 ABUS TVAC22400 HDMI converter
Description
The 4K analogueue HD to HDMI converter brings the live images of analogueue HD cameras, whether TVI, CVI, AHD or CVBS to a monitor. In addition, the video signal can be forwarded to a video recorder or any end device with BNC connection through the loop-out output.
This text is machine translated.
This text is machine translated.
Features
- Supports up to 8 MPX TVI, 8 MPX CVI, 5 MPX AHD and CVBS
- Full HD HDMI output
- One-channel TVI/CVI/AHD/CVBS loop-out.
Scope of delivery
- 4K analogueue HD to HDMI converter
- Power supply unit
- BNC cable;
