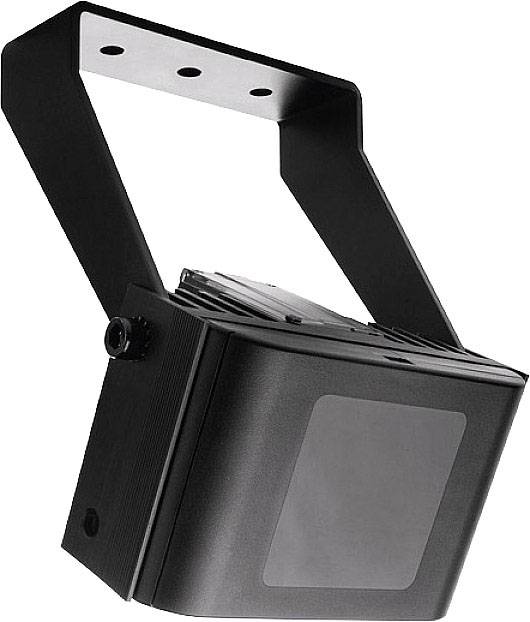

ABUS TVAC71070 IR illuminator IR range (max.) 130 m Outdoors
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
IR radiator, 15 W, 10°- 95° interchangeable lens
- Interchangeable diffusor lens
- Range up to 130 m
- Weatherproof housing IP66
Technical specifications
- IP66 protection rating
- Number of IR LEDs: 4
- Cable length 3 m
- Product type
IR illuminator
- Current consumption
15 W
- Used at
Outdoors
- Shaft length
850 nm
- Operating temperature
-50 °C to 50 °C
- Dim
(W x H x D) 78 x 110 x 68 mm
- Weight
750 g
- IR range (max.)
130 m
- Width
78 mm
- Height
110 mm
- Depth
68 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2247929 ABUS TVAC71070 IR illuminator IR range (max.) 130 m Outdoors
User & Safety Instructions
User & Safety Instructions 2247929 ABUS TVAC71070 IR illuminator IR range (max.) 130 m Outdoors
Description
The TVAC71070 LED infrared spotlight for improved illumination or expansion of the infrared illumination of surveillance cameras. The range and the detection angle is extremely flexible and universally suitable for many locations and projects with an interchangeable diffuser lens and a range of up to 130 m. With its high-performance IR LEDs, the spotlight generates improved night vision and is thus the ideal supplement for ABUS surveillance cameras with day/night function. The weather-proof IP66 housing also ensures full functionality even outdoors.
Range and compatibility
The exchangeable diffuser lens enables an insertion angle of 10° - 95°. With the included bracket, you can also tilt the IR rays vertically. For continuous horizontal alignment, we recommend our mounting angle TVAC31700.
Installation
To avoid cross-fading, there should be no light-reflective surfaces in the immediate vicinity of the IR spotlight and the camera. This also applies in general when installing ABUS cameras with IR LEDs.
This text is machine translated.
Range and compatibility
The exchangeable diffuser lens enables an insertion angle of 10° - 95°. With the included bracket, you can also tilt the IR rays vertically. For continuous horizontal alignment, we recommend our mounting angle TVAC31700.
Installation
To avoid cross-fading, there should be no light-reflective surfaces in the immediate vicinity of the IR spotlight and the camera. This also applies in general when installing ABUS cameras with IR LEDs.
This text is machine translated.
Features
- Interchangeable diffuser lens 10°, 20°, 30°, 40°, 80° & 95°
- weatherproof housing IP66
- variable voltage supply input 12 - 32V DC / 24 V AC +/-10%
- additional holder available for horizontal alignment TVAC31700

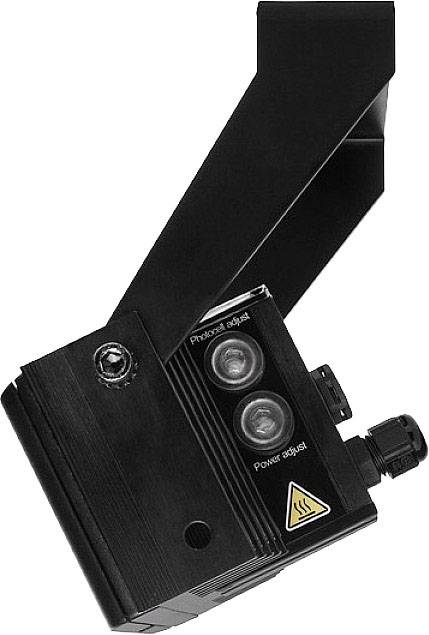

- integrated light sensor for automatic on and off switching
- control input for remote switching
- self-cleaning lens coating technology.
Scope of delivery
- IR illuminator
- Interchangeable socket set 10° to 95°
- Mounting tool for changing lens
- Mount
- L-key
- Fittings.
