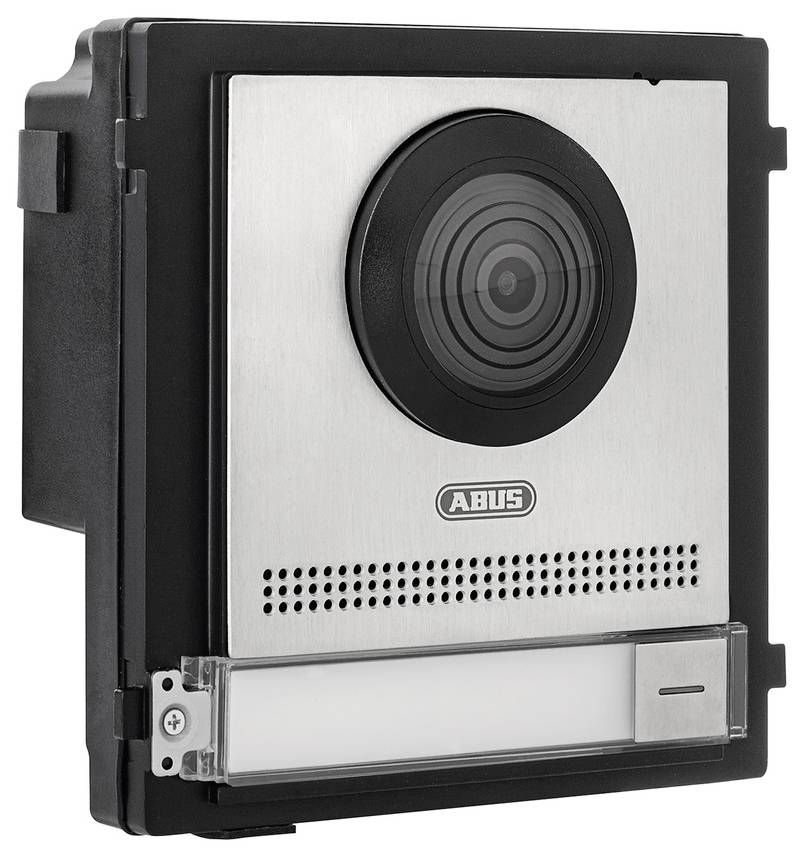

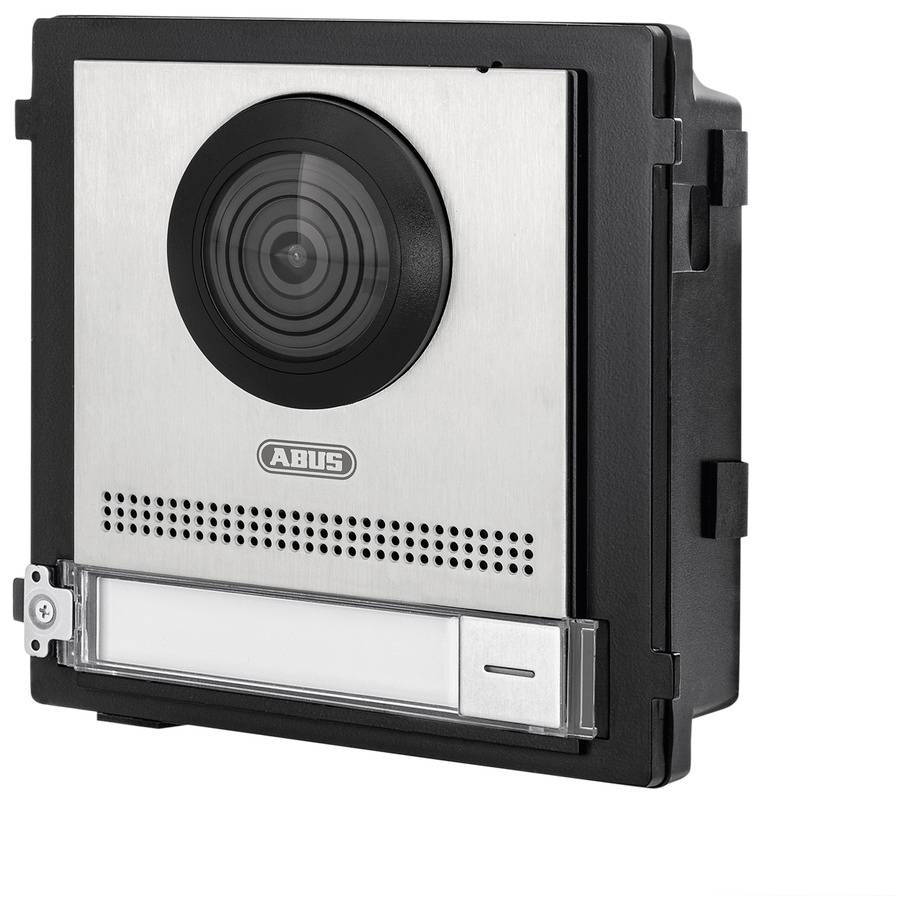

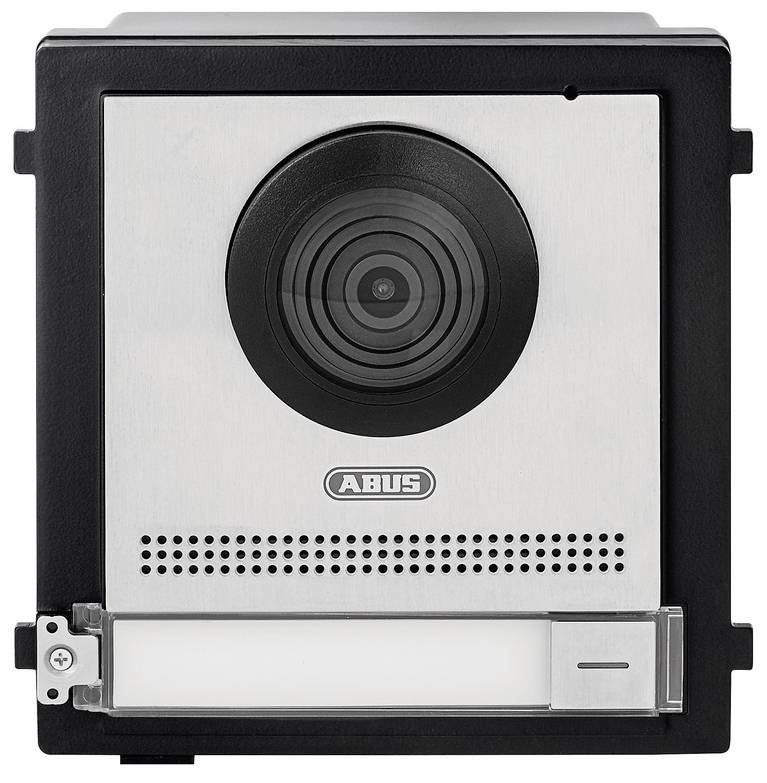

ABUS TVHS20001S IP video module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ABUS TVHS20001S
- IP video module for ModuVis door intercom system as basic configuration
- Central control unit of the door intercom system, min. 1 video module
- 2 megapixel (1080p) day-/night camera with IR-LEDs and 145° view
Technical specifications
- PoE standard IEEE 802.3af
- Angle of vertical vision 82°
- Horizontal Viewing angle: 146°
- Network connection RJ45
- Network connection LAN: RJ45 10M/100M self-adaptive
- Connectable devices: TVHS20020, TVHS20030, TVHS20040
- Product type
IP video module
- Series
ABUS Professional
- Resolution
1920 x 1080 p
- Operating voltage
12 V/DC PoE (802.3af)
- Power supply
PoE (Power over Ethernet)
- Dim
(L x W x H) 43.9 x 98 x 99.8 mm
- App compatibility
Yes
- Resolution (max.)
1920 x 1080 p
- Operating temperature
-40 - 60 °C
- Used at
Outdoors
- Weight
420 g
- Factory colour
Stainless steel
- Microphone
Yes
- Width
98 mm
- Height
99.8 mm
- Length
43.9 mm
IP65
- Transfer type
LAN
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3088932 ABUS TVHS20001S IP video module
User & Safety Instructions
User & Safety Instructions 3088932 ABUS TVHS20001S IP video module
Description
MODULAR & NOBLE: THE FLEXIBLE VIDEO-DOOR PHONE
See people in front of the door, talk to them, open the door. Easily modular to suit your building and your individual needs.
Your video intercom system
The video module is the central unit of the system. With camera, microphone and loudspeaker for intercom and doorbell button, it is the basic configuration for a call station. It transmits language clearly, clearly and without distortion. The Full-HD camera surveying the input range during a ringing event and delivers high-resolution images without distortion – thanks to IR LEDs during the day and night. The bell button with waterproof name plate has an adjustable background lighting.
Ease of use: Monitor and APP
You operate the ModuVis system on the indoor monitor or via ABUS link station APP on the mobile phone/tablet.
Good connections
2 E-door opener or Engine locks can be controlled, up to 4 external doorbell buttons can be connected.
IP Installation (PoE)
Voice and video are IP video module, monitor and other modules are transmitted via an IP network (PoE).
2-wire version: TVHS20010. Modular (expandable)
Modules are added as needed. For up to 49 bells, each with at least 1 monitor each residential party - and up to 16 IP-cameras for video monitoring. The versions of video module and monitor (IP/LAN or 2-wire) can be used in mixed operation.
The stainless steel version is very chic and durable.
This text is machine translated.
Features
- IP video module for Modi door intercom system as basic configuration of a speech unit (1 bell), expandable with further modules up to 49 bells
- Central control unit of the door intercom system, min. 1 video module per ModuVis system required (IP module: For installation via LAN/IP network)
- 2 megapixel (1080p) day/night camera with IR-LEDs and 145° viewing angle for an optimum overview of a bell event
- Delivers pin-sharp full-HD pictures without distortion
- Push-alarm for mobile devices when a bell occurs via ABUS link station APP
- High quality microphone and speaker for very high voice quality: Clear sound of voices, filtering out background noise (noise cancelling)
- Bell button with adjustable backlight (permanent, schedule, brightness sensor) and name plate with silicone seal
- Control of up to 2 doors via E-door opener or Motor lock (e.g. door door + garage/gate) incl. Power supply (simple wiring)
- 4 switch inputs, e.g. for connecting up to 4 external doorbell buttons
- Weather-protected with IP65, flexible installation via built-in frame (surface/flush-mounted)
- PoE network connection, power supply: 12 V DC & PoE (802.3af).
Scope of delivery
- 1x IP video module for door intercom (stainless steel)
- 1x quick instructions
- 1x safety instructions
