ABUS TVHS20210 #####Touch-Monitor
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ABUS TVHS20210
- Indoor unit for the intercom system ModuVis
- Simple operation and communication in excellent sound and image quality
- Live image display of the video module or from up to 16 network cameras
Technical specifications
- Storage medium: Optional microSD card (max. 32 GB)
- Connections 1 x DC/audio/video, 8 x alarm input, 2 x alarm output
- Product type
#####Touch-Monitor
- Series
ABUS Professional
- Resolution
1024 x 600 p
- Operating voltage
Via TVHS20310
- Dim
(W x H x D) 200 x 140 x 15 mm
- App compatibility
Yes
- Resolution (max.)
1024 x 600 p
- Operating temperature
-10 - 55 °C
- Screen size diagonal (inches)
7 inch
- Screen size diagonal (cm)
17.78 cm
- Factory colour
White
- Microphone
Yes
- Width
200 mm
- Height
140 mm
- Depth
15 mm
- Transfer type
Two-wire
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3088957 ABUS TVHS20210 #####Touch-Monitor
User & Safety Instructions
User & Safety Instructions 3088957 ABUS TVHS20210 #####Touch-Monitor
User & Safety Instructions 3088957 ABUS TVHS20210 #####Touch-Monitor
Description
TOTAL MODULAR: THE VIDEO DOOR INTERCOM
See people in front of the door, talk to them, open the door. Easy to install, modular to fit any building - and easy to operate on the monitor.
See everything, talk to, just open the door

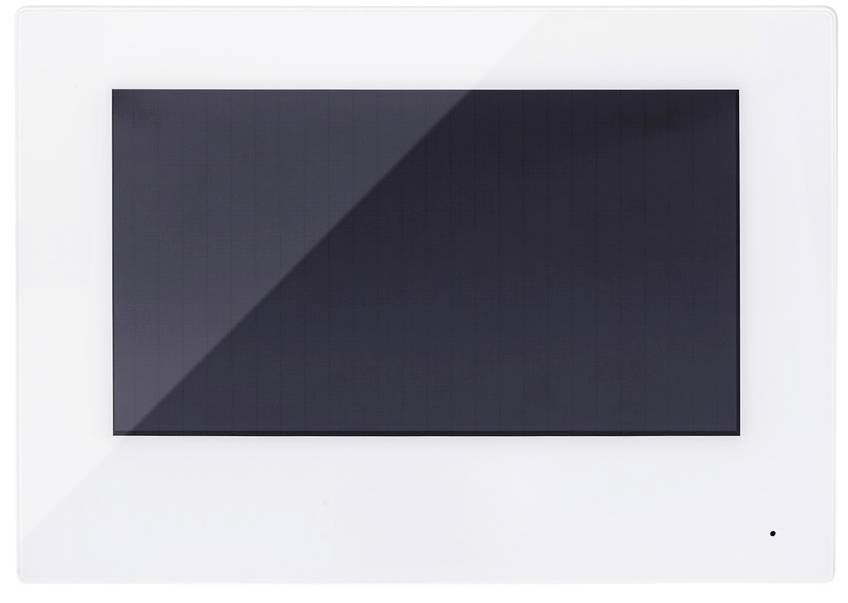

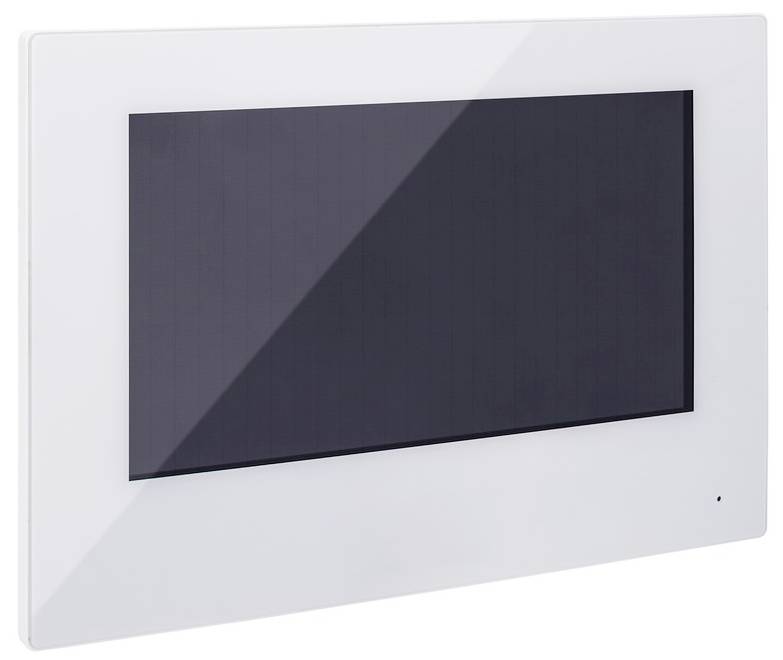

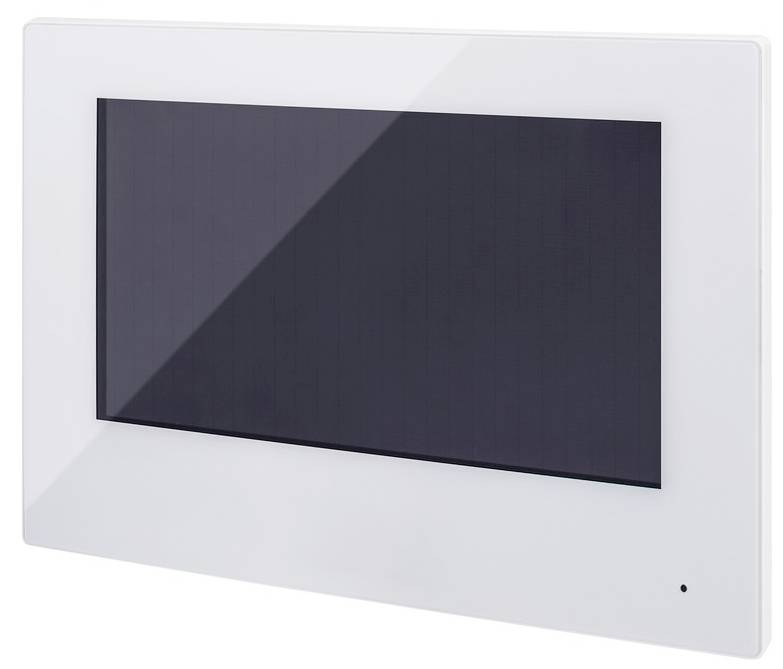

The 17.78 cm (7") touch monitor is the indoor unit for operating the ModuVis door intercom system. It displays the live images of the video module (and other cameras) and allows the intercom in high voice quality. The door is opened with touch - via the door opener (door buzzer) connected to the video module. The monitor has an internal memory for recording scenes.
Local and mobile usage comfort: Via monitor & APP
It is operated either via the stationary touch monitor or mobile on the Smartphone/tablet with the help of the ABUS link station APP. 2-wire installation The communication between 2-wire monitor, video module and other modules is done via 2-wire distributor (converter unit). IP/PoE/WLAN-version: See TVHS20200.
Totally modular, extensively expandable
A clear advantage: The ModuVis system allows you to have up to 49 parties to your home – with one monitor per apartment. The increase in security: Up to 16 IP cameras can be integrated for video surveillance and be displayed on the monitor. The monitor and video module (2-wire or IP/PoE/WLAN) variant is also selected – the systems are compatible with each other.
This text is machine translated.
Features
- Simple operation and communication in excellent voice and image quality within the door entry system
- Live image display of the video module or from up to 16 network cameras (IP/WLAN)
- Intercom and respond (e.g. open the door) when someone rings
- Built-in memory recording (microSD card slot)
- Save and view pictures of missed people who have been ringing
- Connects to an existing doorbell
- Relay output for door opener of the apartment door
- Digital input for floor-bell push
- With 6 bits. Wall bracket (mounting plate)
Scope of delivery
- 1x 17.78 cm (7") Touch Monitor 2-wire
- 1x Wall bracket
- 1x connection cable I/O
- 1x quick instructions
- 1x safety instructions
Hints
Memory card not included
