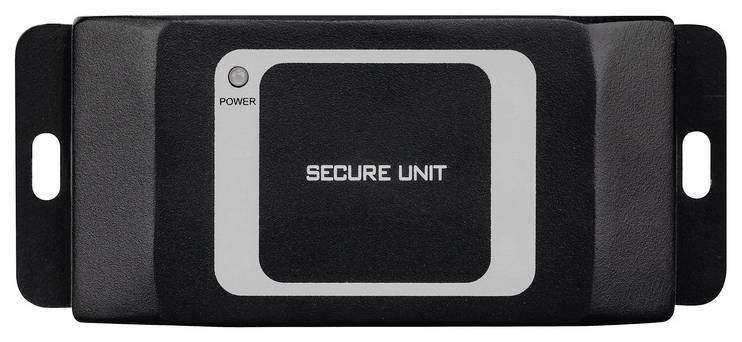

ABUS TVHS20340 Safety module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ABUS TVHS20340
- Security module for the ABUS door station
- Manipulation protection for the door station
- Interface for electric locks
Technical specifications
- Alarm output (NO/NC): Door opener relay (2A 30VDC / 0.5A 125AC)
- Connectable devices: TVHS20000, TVHS20010, TVHS20000S, TVHS20010S
- Connection 1 x RS-485
- Inputs: 1 x Exit Button, 1 x Lock, 1 x Door magnet, 1 x Alarm output
- Case material: metal
- Product type
Safety module
- Series
ABUS Professional
- Operating voltage
12 V DC
- Dim
(W x H x D) 115 x 48 x 25 mm
- Operating temperature
-30 - 55 °C.
- Weight
145 g
- Width
115 mm
- Height
48 mm
- Depth
25 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3088962 ABUS TVHS20340 Safety module
User & Safety Instructions
User & Safety Instructions 3088962 ABUS TVHS20340 Safety module
User & Safety Instructions 3088962 ABUS TVHS20340 Safety module
Information
Information 3088962 ABUS TVHS20340 Safety module
Description
The security module is used as additional protection against manipulation for the ABUS door station, in order to prevent the unauthorized opening of the door, in case of the violent burglary of the door station. In addition, electric cylinder cylinders or exit keys can be integrated via the safety module.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x security module
- 1x installation material
- 2x connection cable
- 1x drilling template
