ABUS WLAN Basisstation für WLAN Akku Cam PPIC90010 Wi-Fi IP-Hub 2-channel 1920 x 1080 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 65.54 / piece)
€ 77.30
-15 %
€ 65.54
plus VAT.
14-day return policy included
ABUS 2-channel IP Hub for Indoors WLAN Basisstation für WLAN Akku Cam
Highlights & Details
- For 2 battery camsOptimized reception and rangeLocal memory via microSDHot-spot function for local operation
Technical specifications
- Video compression: H.264
- Number of users: 3
- Recording modes: Max. 1080p
- Loudspeaker 85 dB @ 10 cm
- Storage medium: MicroSD card up to 128 GB
- Audio compression: PCM
- Power consumption: 180 W
- Encryption: AES
- Product type
Hub
- CCTV features
Saves footage on SD card
2-way communication
Speaker
Microphone
- Signal standard
IP
- Channels
2
- Transfer type
Wi-Fi
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
- Used at
Indoors
- Frequency
2.4 GHz
- Width
141 mm
- Depth
75 mm
- Height
141 mm
- Factory colour
White
- Weight
93 g
- Operating temperature
-10 - +40 °C
- Dim
(W x H x D) 141 x 141 x 75 mm
- App compatibility
Yes
- Resolution (max.)
1920 x 1080 p
- Hub
Required, included
- Power supply
PSU
Documents & Downloads
Datasheet
Datasheet 2163016 ABUS WLAN Basisstation für WLAN Akku Cam PPIC90010 Wi-Fi IP-Hub 2-channel 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 2163016 ABUS WLAN Basisstation für WLAN Akku Cam PPIC90010 Wi-Fi IP-Hub 2-channel 1920 x 1080 p
Information
Information 2163016 ABUS WLAN Basisstation für WLAN Akku Cam PPIC90010 Wi-Fi IP-Hub 2-channel 1920 x 1080 p
Information 2163016 ABUS WLAN Basisstation für WLAN Akku Cam PPIC90010 Wi-Fi IP-Hub 2-channel 1920 x 1080 p
Description
Optimise reception & range.The ABUS WLAN base station is the link between your ABUS WLAN battery cam and your router. It provides for the best possible reception of up to 2 battery cams and stores their video data in the protected building interior. An additional base station brings advantages, if 2 ABUS wireless rechargeable battery cams are used far away from one another, for example B. In front of the house in the entrance area and behind the house in the garden. In this case, you provide an additional base station for optimum reception to the router and the best possible range. In the building, connect the additional station permanently via USB adapter (included in the delivery) to a free socket in the direction of the second camera. The station gives you acoustic and visual feedback after a short time.The App2Cam Plus app takes you to the first live image in a few minutes. You receive push messages when a camera detects movement. Also the records of the battery Cams can be retrieved from now on in the APP, on-site and from while traveling. The base station stores all video data stored on the rechargeable battery cams directly and encoded on a microSD card (accessories, max. 128 GB) – with no additional cost or risk of a cloud. In the APP up to 8 stations can be integrated with 16 battery cams if needed.
This text is machine translated.
This text is machine translated.
Features
- Base station for up to 2 ABUS rechargeable battery cams
- Access via free mobile phone and tablet App App2Cam Plus
- Part of the ABUS Comfort line and Smart security world
- Compatible with the radio alarm system Smartvest
- Add additional base station(s) for more cameras, depending on the design/spatial conditions on site, if an additional WLAN battery cam is to be placed outside the range of an existing base station
- Up to 8 base stations can be integrated into the App2Cam Plus app and up to 4 base stations can be added to the Smartvest app
- Place inside in an open socket, best between your own router and battery cam(s) for optimal Wi-Fi reception
- Ready to use quickly through simple commissioning (with App Wizard in a few minutes
- Visual and acoustic feedback
- Save to microSD card (accessory, up to 128 GB), for locally stored camera footage that is always available inside the building (no cloud, no subscription)
- Operation/access via APP is purely local in your own WLAN and, if required, via Internet connection (encrypted).

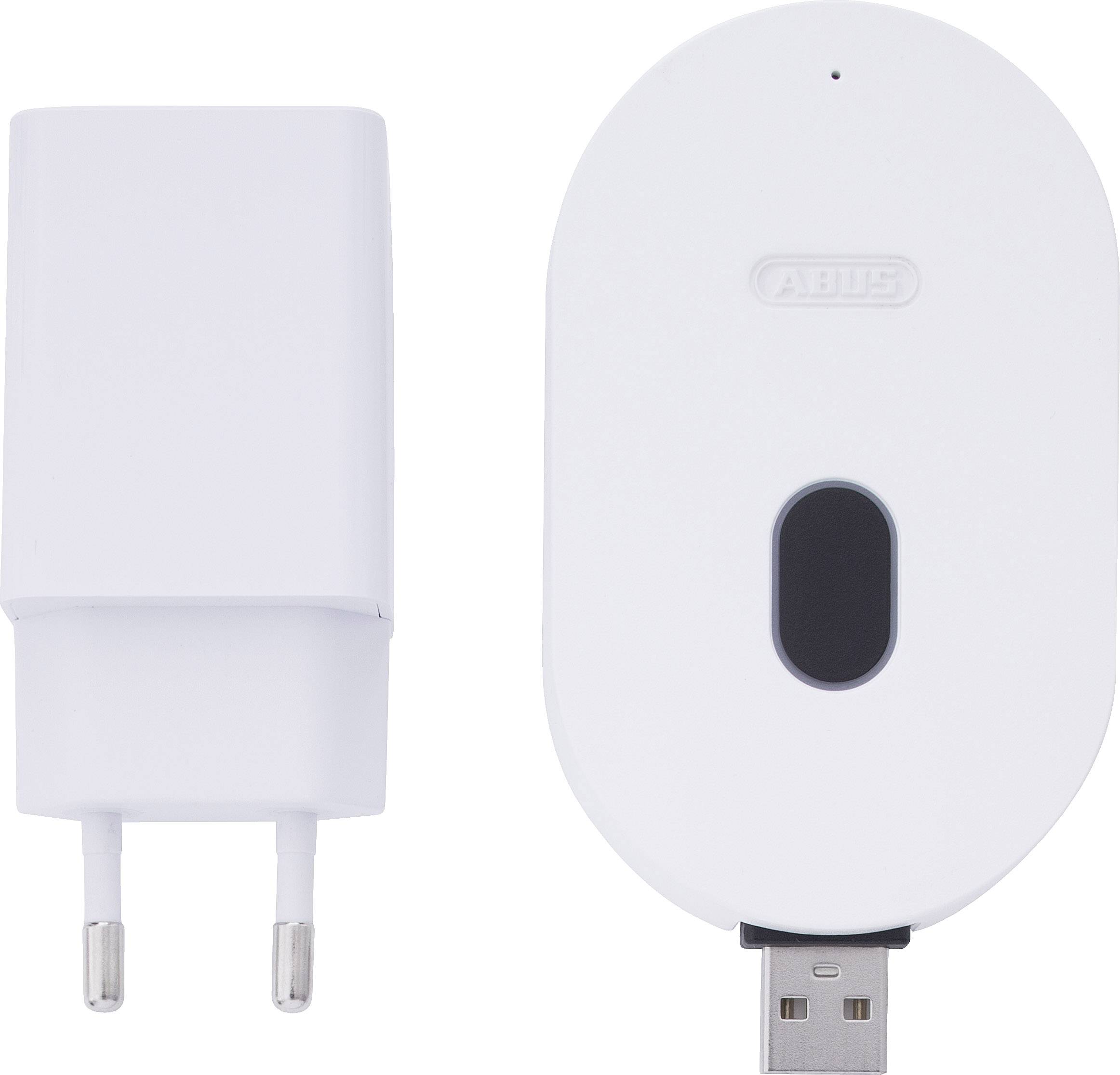

Scope of delivery
- 1x base station
- 1x EU charging plug
- 1x quick user guide
Hints
For operation with additional rechargeable battery Cam (PPIC90520).
Compatible with ABUS Smartvest wireless alarm system.
