ACV 30.3500-01 Isolation relay 140 A 1 breaker Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolation relay
Contact type
1 breaker
Switching voltage (max.)
13.5 V DC
Switching current (max.)
140 A
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 3 Piece(s) available
Highlights & Details

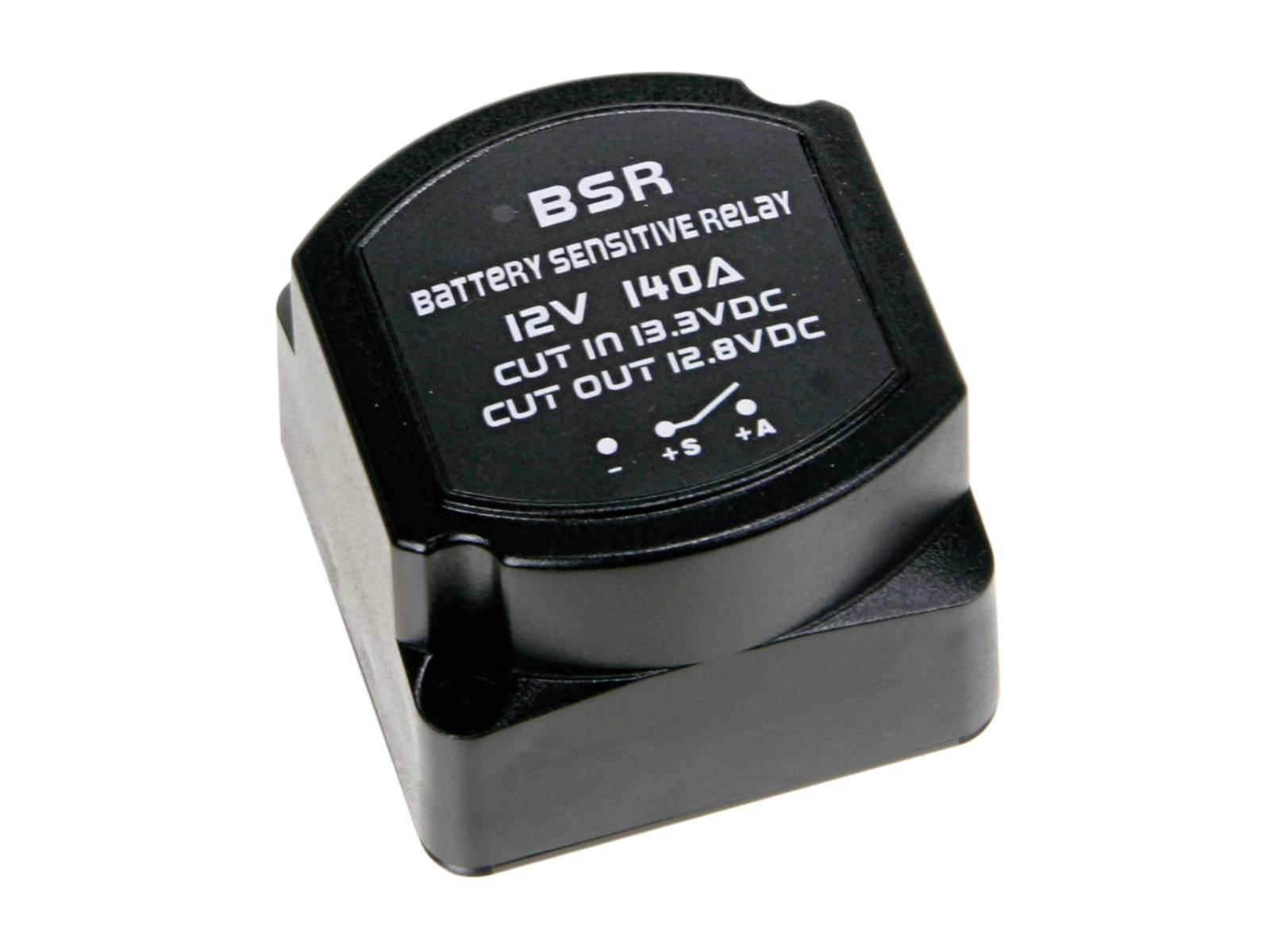

ACV 30.3500-01 Automotive relay 67.5 x 67.5 x 54.5 mm Electrical connection Electronic separator relay
- The bi-directional circuit allows current to flow in both directions for seamless connection/disconnection of two batteries for charge control. The automatic voltage detection controls the connection or disconnection on the basis of the system voltage and simplifies the installation without any manual intervention. The normally open contact arrangement prevents an unintended closing of the circuit until activation and thus reduces the quiescent current. The integrated LED-display signals the relay status clearly and supports the diagnosis and installation check.
Technical specifications
- Packaging type
Piece
- Product type
Isolation relay
- Type
30.3500-01
- Max. pick-up voltage
13.5 V DC
- Contact type
1 breaker
- Switching voltage (max.)
13.5 V DC
- Switching current (max.)
140 A
- NO switching current (max.)
140 A
- Width
67.5 mm
- Height
54.5 mm
- Length
67.5 mm
- Dim
(L x W x H) 67.5 x 67.5 x 54.5 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595004 ACV 30.3500-01 Isolation relay 140 A 1 breaker Piece
Description
This car relay serves as an electronic circuit breaker that automatically connects or disconnects the vehicle batteries depending on the voltage state. It monitors the system voltage and operates its normally open contact to connect or disconnect circuits. This prevents the starter battery from discharging by stopping the recovery when certain thresholds are not reached. The device is intended for installation in vehicles when it is necessary to switch high current between the battery banks on. It is suitable for integration with charging systems so that the connection is only established when the alternator output reaches the required value. Typically, it is integrated into battery management circuits to control charge distribution and protect the starter capacity. The status LED provides the installer with a simple visual display.
This text is machine translated.
This text is machine translated.
Features
- Width: 67.5 mm
- Height: 54.5 mm
- Length: 67.5 mm.
- Maximum switching current 140 A.
- Maximum switching voltage +13.5 V DC
- Contact configuration: Opener (NO)
- Relay type: Electronic isolation relay
- Packaging type: Pieces
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
