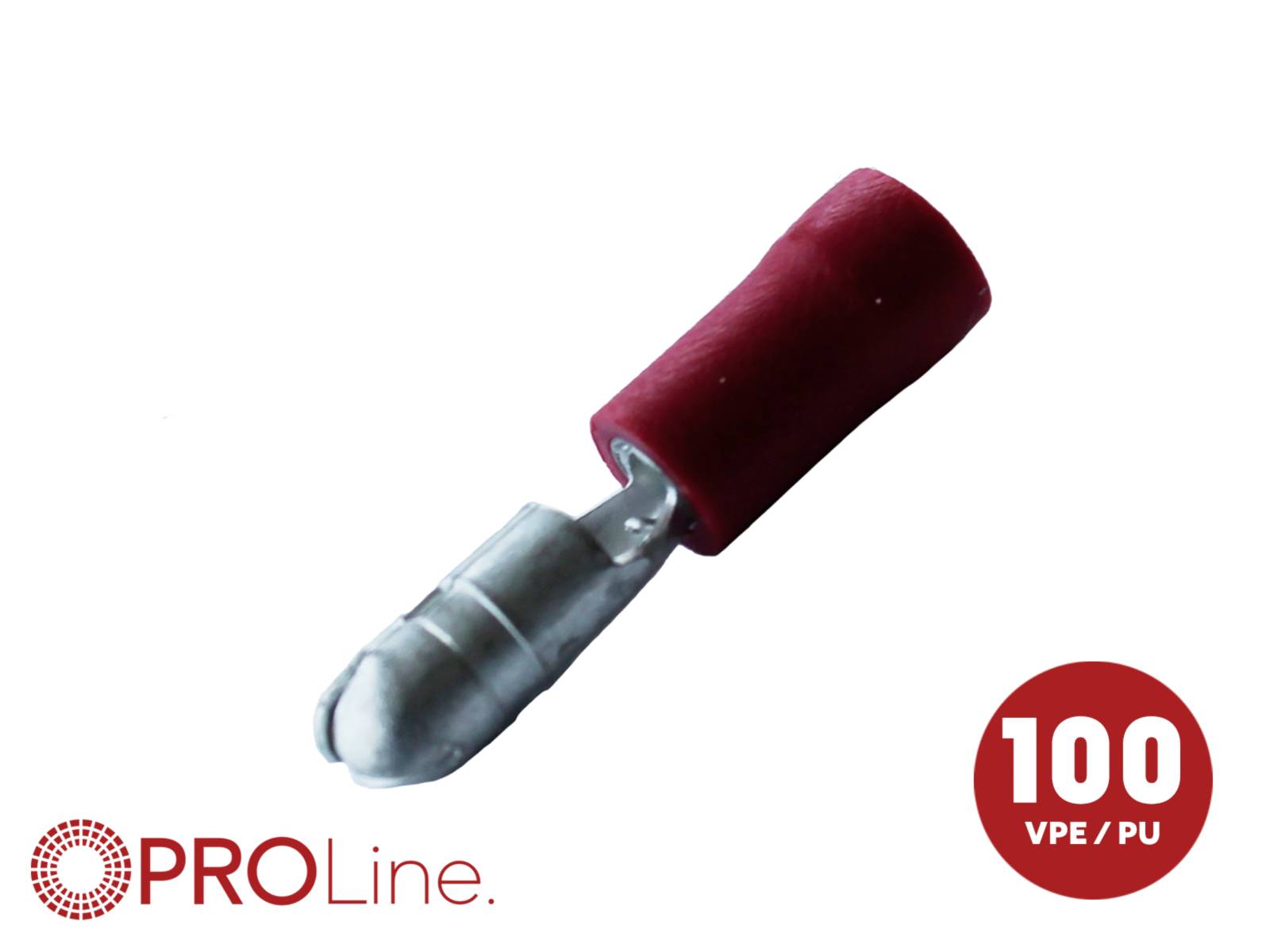

ACV 340025-1-0-p Bullet connector Pin diameter: 4.0 mm Insulated Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector
Pin Ø
4.0 mm
Insulation type
Insulated
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
4% = € 0.25
€ 5.62
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
ACV 340025-1-0-p round connector 4.0 mm, insulated, vinyl PVC
- The round plug-in geometry with a pin diameter of 4.0 mm ensures a reliable axial contact and thus simplifies a quick plugging during the mounting. The insulating vinyl sleeve stabilizes the connection and reduces the load transfer on the conductor for more durable connections. The narrow cross-section range enables the use of different wire sizes and thus the easy integration in cable harnesses and repair work. The one-piece design facilitates individual use and storage for maintenance work and small series installations.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector
- AWG max.
16
- AWG (min.)
22
- Pin Ø
4.0 mm
- Insulation type
Insulated
- Factory colour
Red
- Content
1 pc(s)
- Manufacturer part #
340025-1-0-p
- Type
340025-1-0-p
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595148 ACV 340025-1-0-p Bullet connector Pin diameter: 4.0 mm Insulated Red 1 pc(s) Piece
Description
This round plug is a one-piece, insulated butt connector system for connecting and terminating stranded conductors. To do this, the conductor is inserted into the wire-end sleeve and connected to the matching counterpiece to create a secure electrical contact. The insulating sleeve supports the crimp connection and contributes to the stability of the mechanical alignment during vibrations, while the cylindrical contact surface ensures a conductor path with low contact resistance. Typical applications are inLine splices and removable wire connections in switching cabinets, vehicle wiring and cable harnesses, where a compact, maintenance-friendly plug is needed. The installation is done by pressing in the conductor in the plug and connecting with the counter-part. The plug is suitable for moderate ambient conditions without impairing the basic electrical function.
This text is machine translated.
This text is machine translated.
Features
- Pin diameter 4.0 mm
- Wire cross-section: 0.5–1.5 mm²
- AWG range: 22–16
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation color red
- Temperature range: -10 °C to +75 °C
- Packaging type: Pieces
- Connector type: Round connector
- Features: UL-listed; high tensile strength; corrosion protection; mechanical stability
