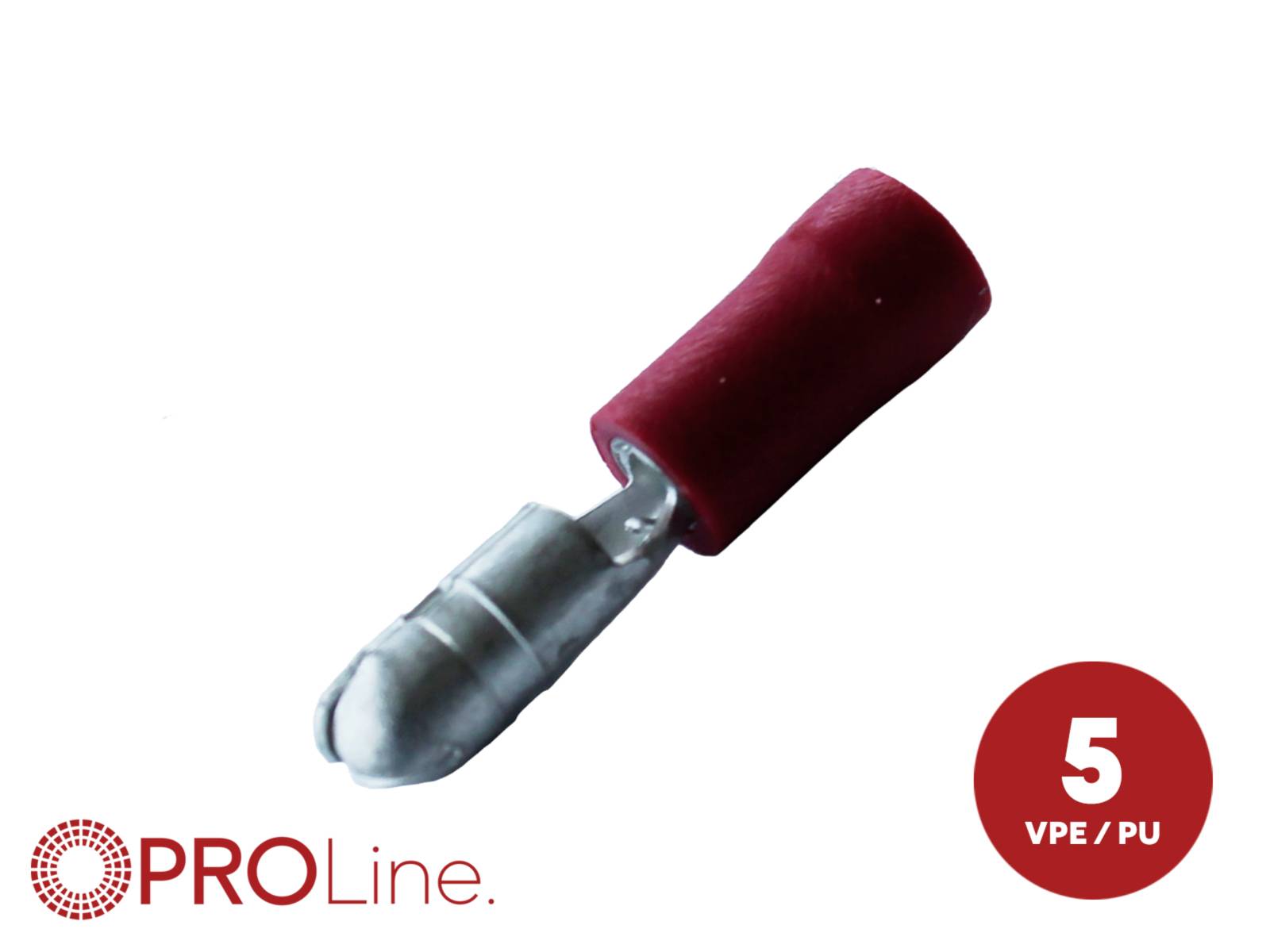

ACV 340025-1-5-p Bullet connector 0.5 mm² 1.5 mm² Pin diameter: 4.0 mm Insulated Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector
Min. cross section
0.5 mm²
max. cross section
1.5 mm²
Pin Ø
4.0 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
5
5% = € 0.10
€ 1.82
10
7% = € 0.14
€ 1.78
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Only 1 Piece(s) available
Highlights & Details
ACV 340025-1-5-p round connector 4.0 mm, insulated brass
- The round plug profile with 4.0 mm pin diameter ensures a simple plug connection for the fast mounting in wiring sections.
- The insulating vinyl sleeve provides for electrical separation and simplifies use when crimping.
- The compatible cross-section range from 0.5 mm² to 1.5 mm² enables the connection of common conductors with small cross-section and thus facilitates the standardization of wiring.
- The electrolytically tin-plated brass contact offers a reduced contact resistance and allows repeated mechanical latching without rapid wear.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector
- Min. cross section
0.5 mm²
- max. cross section
1.5 mm²
- AWG max.
16
- AWG (min.)
22
- Pin Ø
4.0 mm
- Insulation type
Insulated
- Factory colour
Red
- Contact material
Brass tin plated
- Insulation material
PVC
- Content
1 pc(s)
- Manufacturer part #
340025-1-5-p
- Type
340025-1-5-p
- Cross-section range
0.5 - 1.5 mm²
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595149 ACV 340025-1-5-p Bullet connector 0.5 mm² 1.5 mm² Pin diameter: 4.0 mm Insulated Red 1 pc(s) Piece
Description
This connector serves as one-piece crimp connection terminal for detachable, axial electrical connections. The installation is done by stripping the conductor, inserting in the sleeve and pressing the terminal with a crimping tool, in order to create a gas-tight connection. The insulation sleeve then encloses the connection, minimizing the risk of a short circuit. The metal contact transfers the current through the contact surface, while the galvanized surface reduces the surface oxidation. Typical applications are wiring harnesses and general electrical assemblies where compact, easy-to-maintain connections are required and a round shock connection simplifies the separation and reconnection.
This text is machine translated.
This text is machine translated.
Features
- Pin diameter 4.0 mm
- Insulation material: Vinyl PVC
- Insulation color red
- Contact material: Electrolytically tin-plated brass
- Cross-section range: 0.5 mm²–1.5 mm²
- AWG range: 22–16
- Connector type: Round shock connector
- Temperature range: -10 °C to +75 °C
- Packing: Piece
- Connector characteristics: UL-listed; high tensile strength; corrosion protection; mechanical stability
