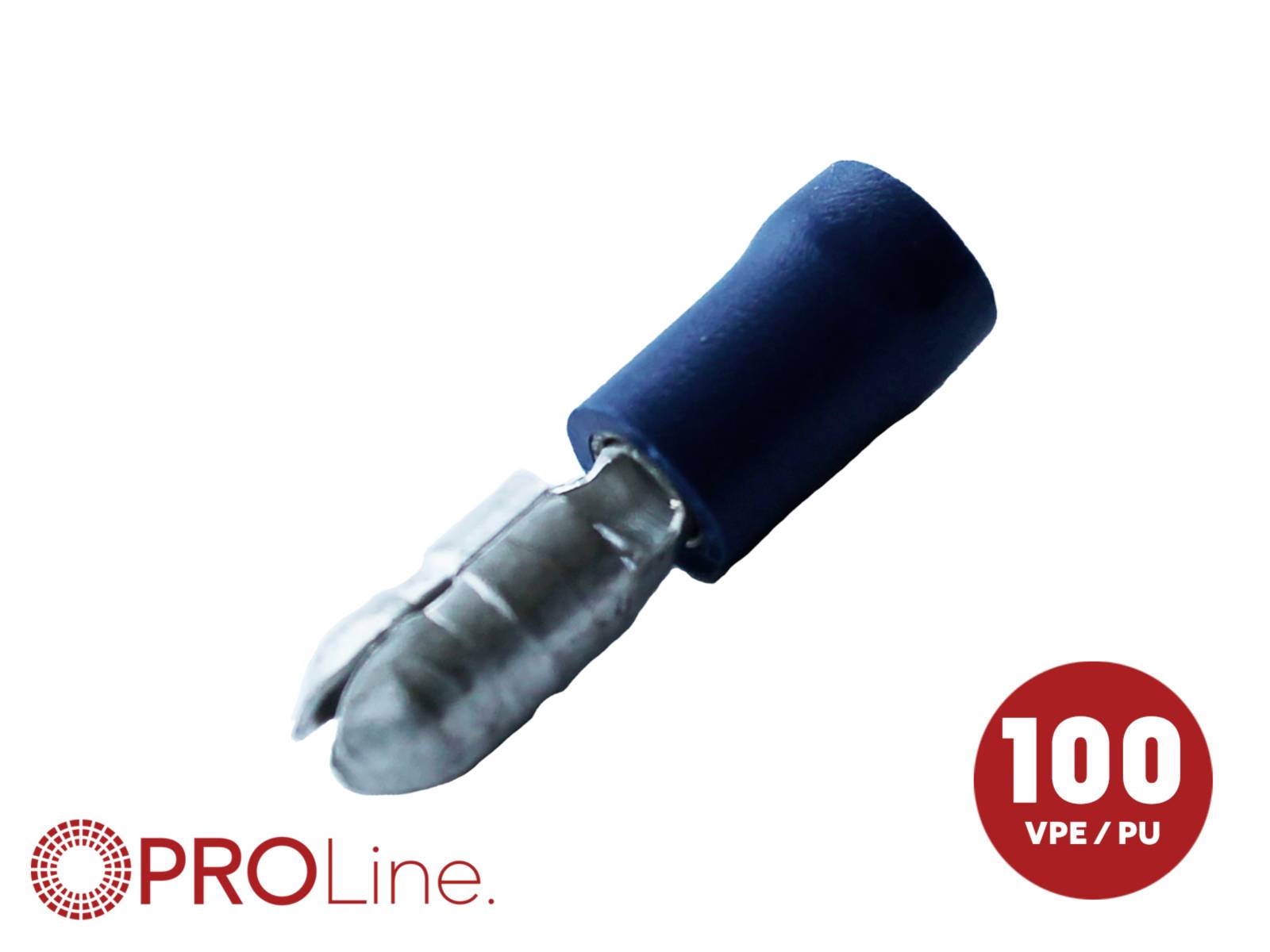

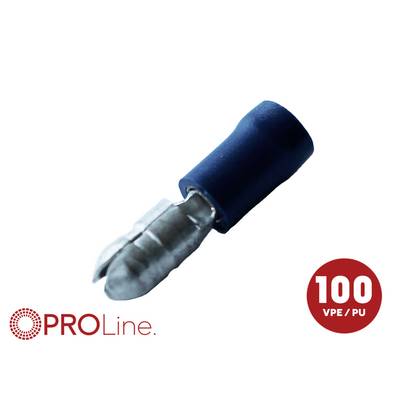

ACV 340025-2-0-p Bullet connector Pin diameter: 5.0 mm Insulated Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector
Pin Ø
5.0 mm
Insulation type
Insulated
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
4% = € 0.28
€ 6.43
5
6% = € 0.40
€ 6.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 340025-2-0-p round connector 5.0 mm, insulated brass
- The round butt connector geometry makes it easy to plug in and makes inLine connections easier during installation. Vinyl PVC insulation provides electrical separation and makes handling easier, WAS increases safety in the connection of flexible conductors. The electrolytically tin-plated brass contact ensures uniform electrical transfer and contributes to long-term conductivity in crimp connections. The pin in the Bullet-design with a defined diameter enables fast plugging and unplugging and thus simplifies the maintenance and modular wiring work.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector
- AWG max.
14
- AWG (min.)
16
- Pin Ø
5.0 mm
- Insulation type
Insulated
- Factory colour
Blue
- Content
1 pc(s)
- Manufacturer part #
340025-2-0-p
- Type
340025-2-0-p
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595150 ACV 340025-2-0-p Bullet connector Pin diameter: 5.0 mm Insulated Blue 1 pc(s) Piece
Description
This connector is a crimp connection cable for connecting two conductors by means of a cylindrical plug-socket connection. The installation is done by stripping the conductor, inserting the wire into the insulated sleeve and then pressing the contact with a suitable crimping tool to create a gas tight connection. After crimping, the pin is firmly inserted in the mating sleeve and thus provides a circuit of HER. At the same time it enables a quick separation if needed. Its design is suitable for common automotive wiring and general wiring where regular access is required for assembly or maintenance. The insulating sleeve supports correct alignment and strain relief during use.
This text is machine translated.
This text is machine translated.
Features
- Pin diameter 5.0 mm
- Wire cross-section: 1.5–2.5 mm²
- AWG range: 16–14
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation color: Blue
- Temperature range: -10 °C to +75 °C
- Packaging type: Individual
- Connector type: Round connector
- Connector characteristics: UL-listed; high tensile strength; corrosion protection; mechanical stability
