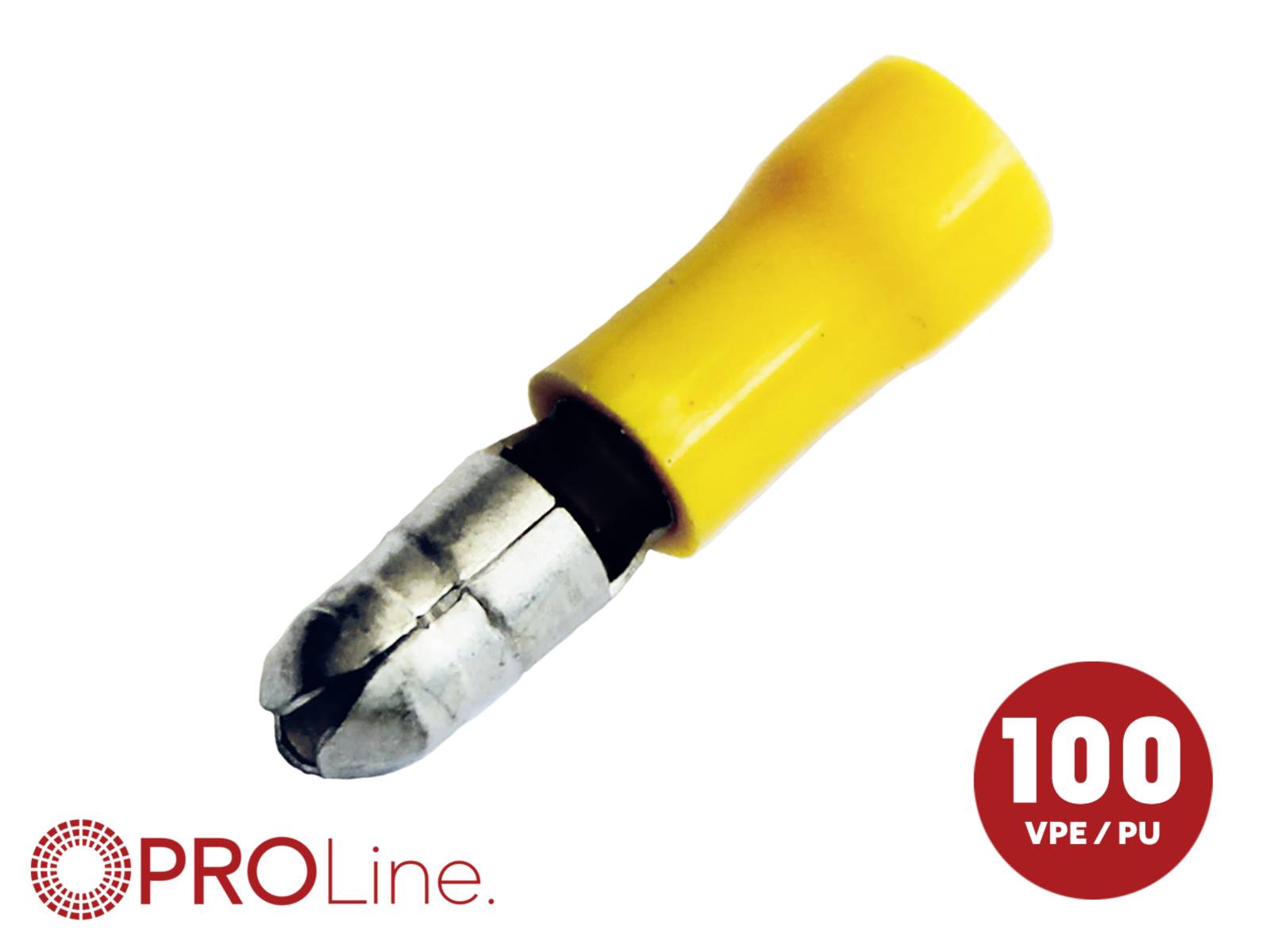

ACV 340025-3-0-p Bullet connector + butt connectors 4.0 mm² 6.0 mm² Pin diameter: 5.0 mm Insulated Yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector
Min. cross section
4.0 mm²
max. cross section
6.0 mm²
Pin Ø
5.0 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
4% = € 0.41
€ 9.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 340025-3-0-p round connector 5 mm, insulated, vinyl PVC
- The round blunt geometry with a pin diameter of 5 mm enables simple plug connection for quick single wire connections.
- The insulating vinyl sleeve improves handling and reduces the risk of exposed conductors during installation. The compatible cross-section range supports conductors with a cross-section of 4.0–6.0 mm² and thus enables the use with common cable cross-sections for safe crimping.
- The electrolytically tin-plated brass contact ensures a conducting continuity and increases resistance to surface corrosion in connected circuits.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector
- Min. cross section
4.0 mm²
- max. cross section
6.0 mm²
- AWG max.
10
- AWG (min.)
12
- Pin Ø
5.0 mm
- Insulation type
Insulated
- Factory colour
Yellow
- Features
+ butt connectors
- Contact material
Brass tin plated
- Insulation material
Full PVC insulation
- Content
1 pc(s)
- Manufacturer part #
340025-3-0-p
- Type
340025-3-0-p
- Cross-section range
4.0 - 6.0 mm²
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595151 ACV 340025-3-0-p Bullet connector + butt connectors 4.0 mm² 6.0 mm² Pin diameter: 5.0 mm Insulated Yellow 1 pc(s) Piece
Description
This plug connector serves as single core crimp terminal for fast electrical connections. A cylindrical pin snaps into a matching sleeve to indicate contact HER. During installation, the conductor is inserted into the terminal and compressed while the insulating sheath isolates the connection. The metal contact directs the current and the outer sleeve separates adjacent conductors. It is suitable for Ideal for environments with repeated mounting operations where reliable mechanical contact and simple wiring changes are required. Typical applications are cable harnesses and splices in vehicles and equipment, where replacement and easy inspection are a priority.
This text is machine translated.
This text is machine translated.
Features
- Pin diameter 5.0 mm
- Wire cross-section: 4.0–6.0 mm²
- AWG range: 12–10
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation color: Yellow
- Temperature range: -10 °C to +75 °C
- Connector type: Round butt connector
