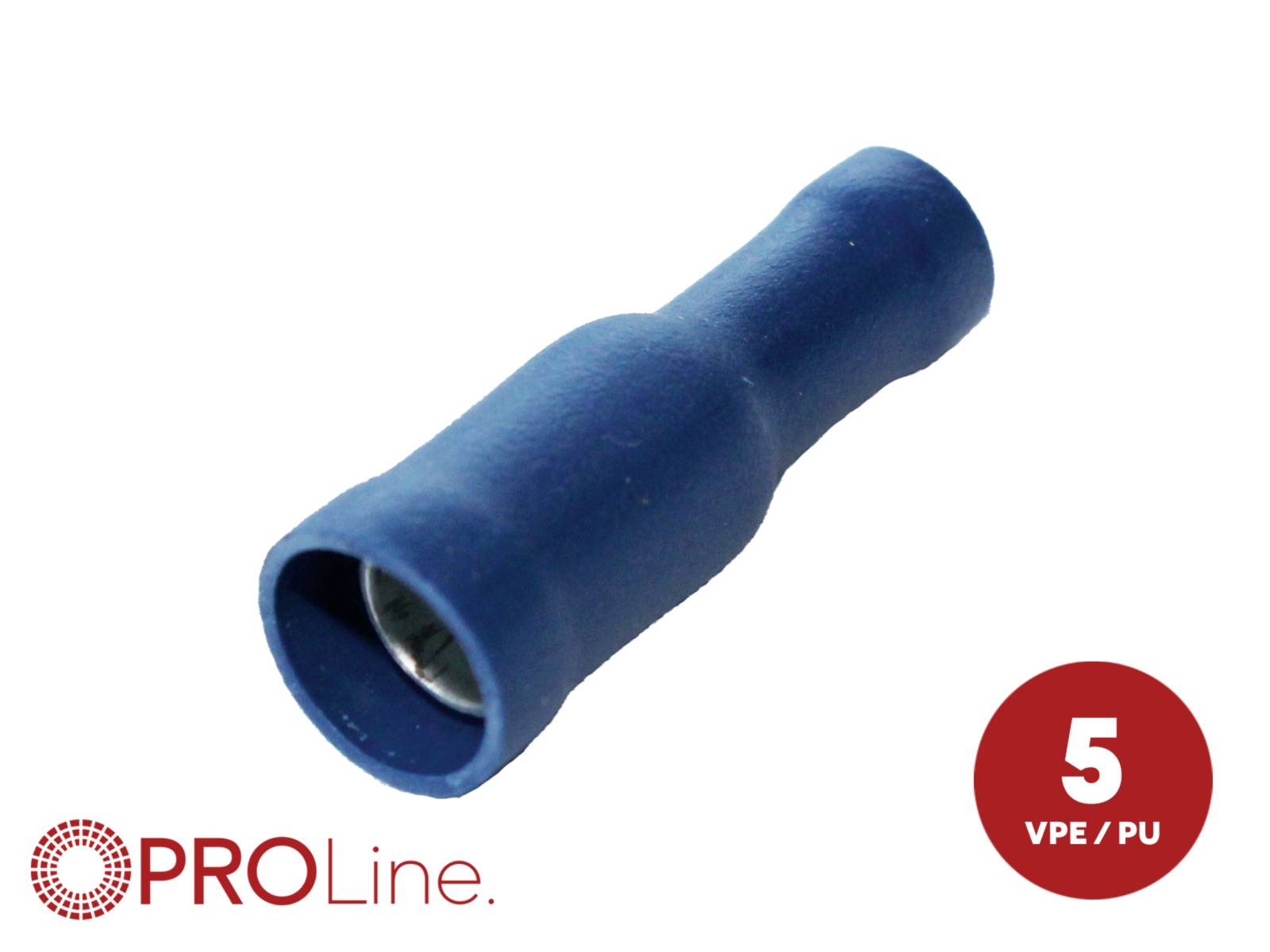

ACV 340034-1-5-p Bullet connector retainer 1.5 mm² 2.5 mm² Pin diameter: 3.9 mm Insulated Blue, Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bullet connector retainer
Min. cross section
1.5 mm²
max. cross section
2.5 mm²
Pin Ø
3.9 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
5
5% = € 0.11
€ 1.98
10
7% = € 0.15
€ 1.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 340034-1-5-p round plug 3.9 mm, insulated brass
- The geometry of the round butt connector makes it easy to connect and disconnect wires during maintenance.
- The 3.9 mm socket offers a defined contact area for round pin connections, thus ensuring a reliable electrical contact. The insulating vinyl sleeve provides strain relief, reduces the risk of exposed conductors and simplifies manual installation. The Easy Entry construction minimizes the fraying of the wires when inserted and ensures a safe stop even with vibrations.
Technical specifications
- Packaging type
Piece
- Product type
Bullet connector retainer
- Min. cross section
1.5 mm²
- max. cross section
2.5 mm²
- AWG max.
14
- AWG (min.)
16
- Pin Ø
3.9 mm
- Insulation type
Insulated
- Factory colour
Blue
Red
- Contact material
Brass tin plated
- Insulation material
Full PVC insulation
- Content
1 pc(s)
- Support sleeve
Yes
- Manufacturer part #
340034-1-5-p
- Type
340034-1-5-p
- Cross-section range
1.5 - 2.5 mm²
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595152 ACV 340034-1-5-p Bullet connector retainer 1.5 mm² 2.5 mm² Pin diameter: 3.9 mm Insulated Blue, Red 1 pc(s) Piece
Description
This connector serves as a single-pole, electric inLine connection where a counter pin is inserted into a socket to close a circuit. The installation is done by pressing the conductor in the plug connector, then pushing the insulation sleeve over the connection in order to insulate the connection. The socket holds a suitable pin to make the connection. The tin-plated brass contact of the connector ensures a conductive connection between the conductors, while the sheathed body provides mechanical stability and electrical insulation. Thus, it is suitable for cable harnesses and field splices in switch cabinets, car cable harnesses and general electrical assemblies where separable connections are necessary.
This text is machine translated.
This text is machine translated.
Features
- Socket diameter 3.9 mm
- Wire cross-section: 1.5–2.5 mm²
- AWG range: 16–14
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation colors: Blue; red
- Temperature range: -10 °C to 75 °C
- Connector type: Round connector
- Packaging type: Individual
- Connector characteristics: UL-listed; high tensile strength; corrosion protection; mechanical stability
