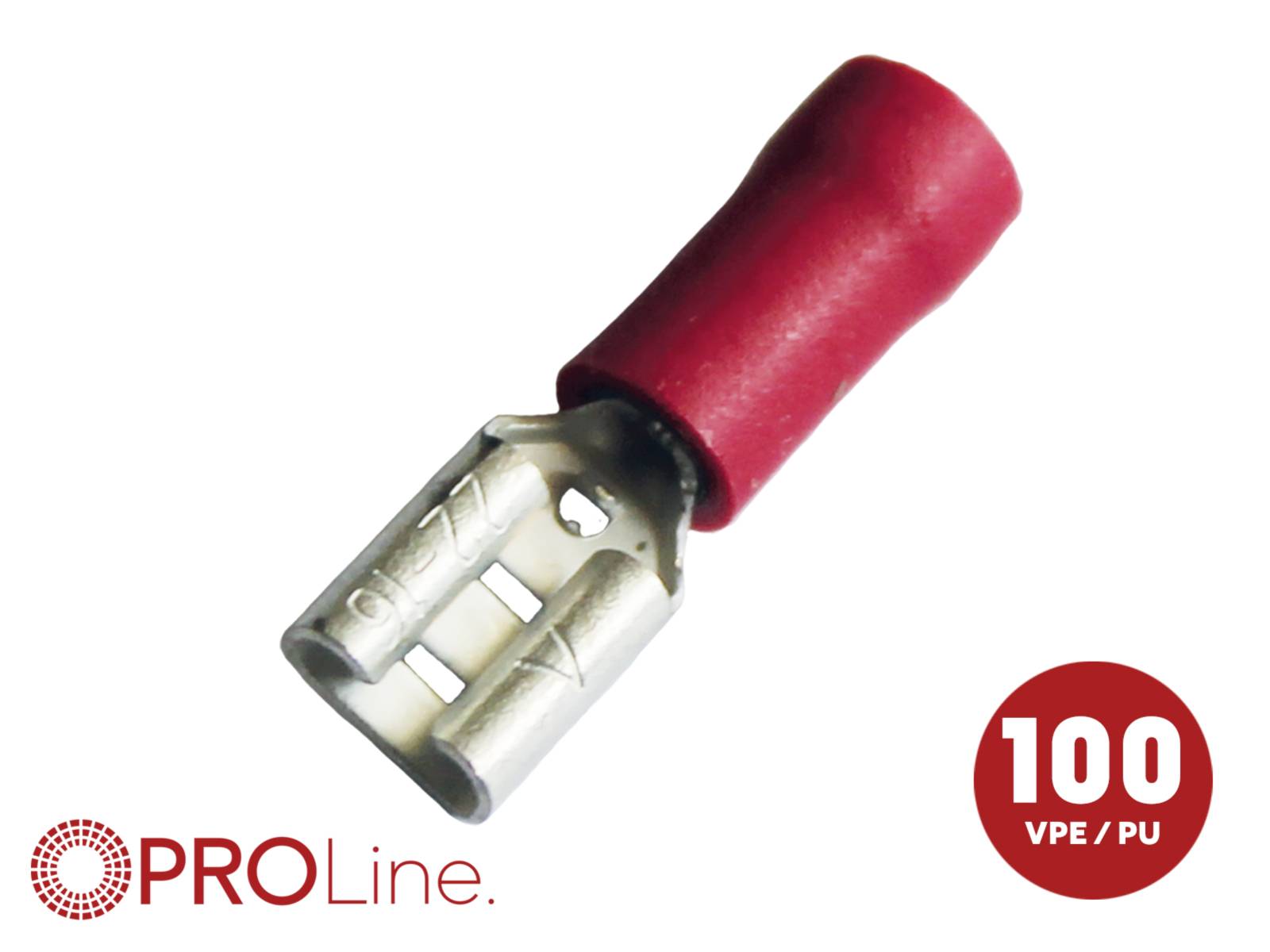

ACV 344801-1-0-p Blade connector Connector thickness: 0.8 mm Partially insulated Red 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Blade connector
Insulation type
Partially insulated
Content
100 pc(s)
Factory colour
Red
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Highlights & Details
ACV 344801-1-0-p flat plug connector with 4.8 mm diameter, electrolytically tin-plated brass
- Red
- x 0.8 mm
- -
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Blade connector
- Factory colour
Red
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Content
100 pc(s)
- Type
Flat container (f)
- AWG max.
16
- AWG (min.)
22
- Manufacturer part #
344801-1-0-p
- Type
344801-1-0-p
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763580 ACV 344801-1-0-p Blade connector Connector thickness: 0.8 mm Partially insulated Red 100 pc(s) Piece
Description
This female spade connector with built-in feeder connector holds mating parts and allows an additional connection via the tap tab. The installation is done by inserting the counterpiece into the sleeve until the contact clicks into place. The partially insulated body of the sleeve leads the conductor and limits the exposed metal. The connector is intended for the inLine wiring and branch lines, where a second branch is required without additional terminals. Its design ensures optimum support and easy insertion and is therefore suitable for Ideal cable harness assembly and field wiring where frequent insertion and compact stacking are common.
This text is machine translated.
This text is machine translated.
Features
- Plug width 4.8 mm
- Plug thickness 0.8 mm
- Insulation material: Vinyl PVC
- Insulation type: Partial insulation
- Contact material: Electrolytically tin-plated brass
- AWG range: 22–16
- Wire cross-section: 0.5–1.5 mm²
- Temperature range: -10 °C to 75 °C
- Factory color: Red
- Packing: Piece
- Plug type: Spade connector
- Type: Flat jack (F)
