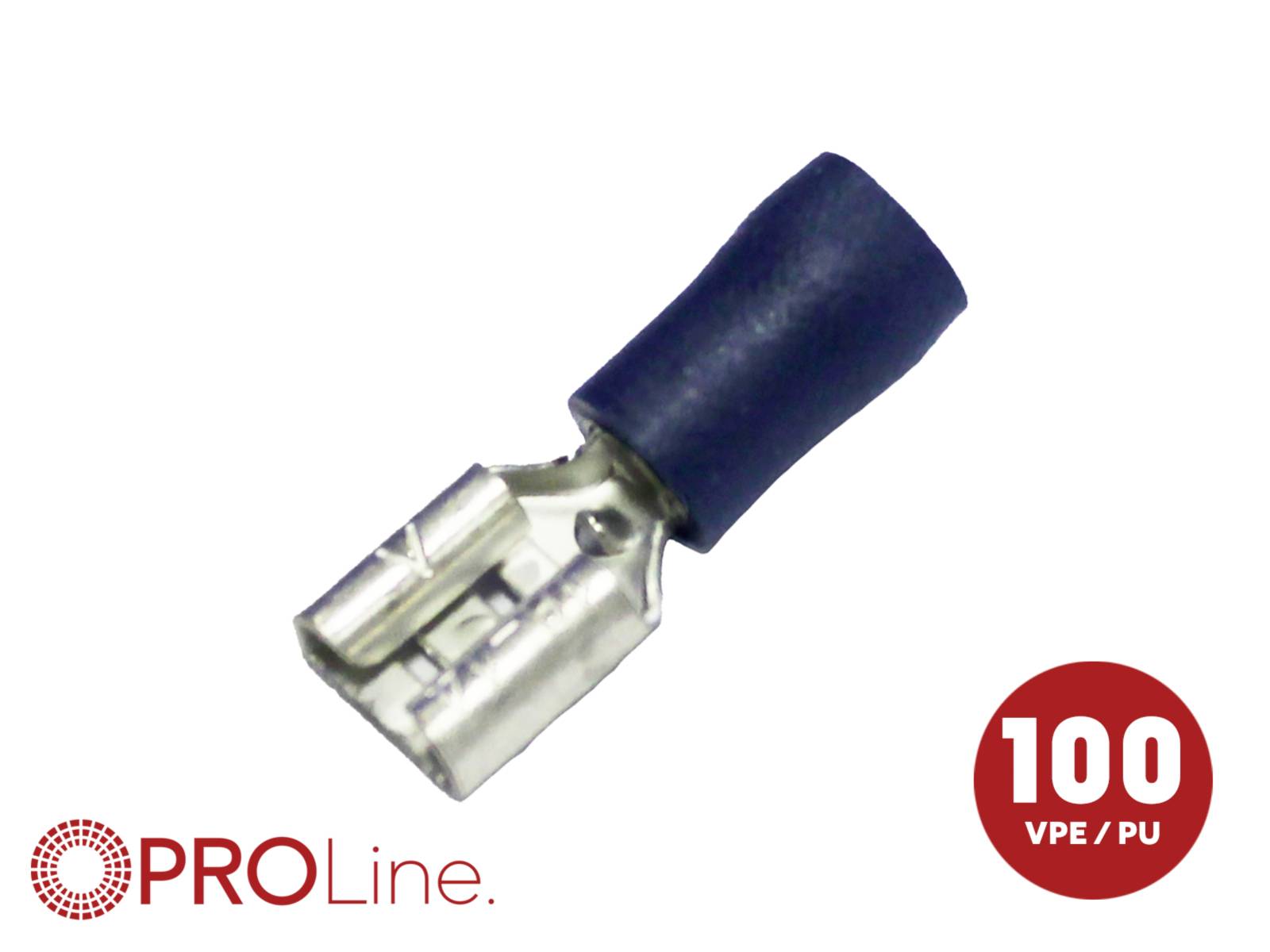

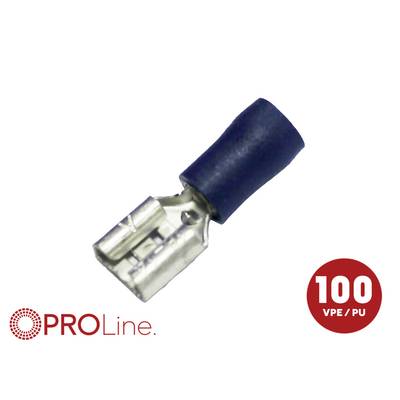

ACV 344801-2-0-p Blade connector Connector thickness: 0.8 mm Partially insulated Blue 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Blade connector
Insulation type
Partially insulated
Content
100 pc(s)
Factory colour
Blue
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Only 3 Set(s) available
Highlights & Details
ACV 344801-2-0-p flat plug connector with 4.8 mm diameter, electrolytically tin-plated brass
- Blue
- x 0.8 mm
- -
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Blade connector
- Factory colour
Blue
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Content
100 pc(s)
- Type
Flat container (f)
- AWG max.
14
- AWG (min.)
16
- Manufacturer part #
344801-2-0-p
- Type
344801-2-0-p
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3760853 ACV 344801-2-0-p Blade connector Connector thickness: 0.8 mm Partially insulated Blue 100 pc(s) Piece
Description
This flat plug socket with integrated branch connector is designed for the inLine connection of lines, when a second cable is needed. It has a suitable flat plug connector and offers an additional branch for parallel circuits. The contact plate transfers the current between the terminals. The installation takes place by inserting an stripped conductor into the insulated sleeve and then pressing with the support sleeve to create a mechanical and electrical connection. The partly insulated design allows it to be laid even in the tightest of spaces and reduces the exposed printed circuit surface. Typical applications include harness modifications, relay and fuse block extensions, and situations where a compact second branch is needed. Operation is stable within the specified temperature range under normal ambient conditions.
This text is machine translated.
This text is machine translated.
Features
- Plug width 4.8 mm
- Plug thickness 0.8 mm
- Minimum cross-section: 1.5 mm²
- Maximum cross-section: 2.5 mm²
- AWG range: 14–16
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Temperature range: -10 °C to 75 °C
- Insulation type: Part-insulated
- Factory color: Blue
- Packaging type: Individual
