ACV 347145-1-5-p Butt joint Insulated Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Length
42 mm
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
3
5% = € 0.21
€ 4.40
5
6% = € 0.29
€ 4.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Only 2 Piece(s) available
Highlights & Details

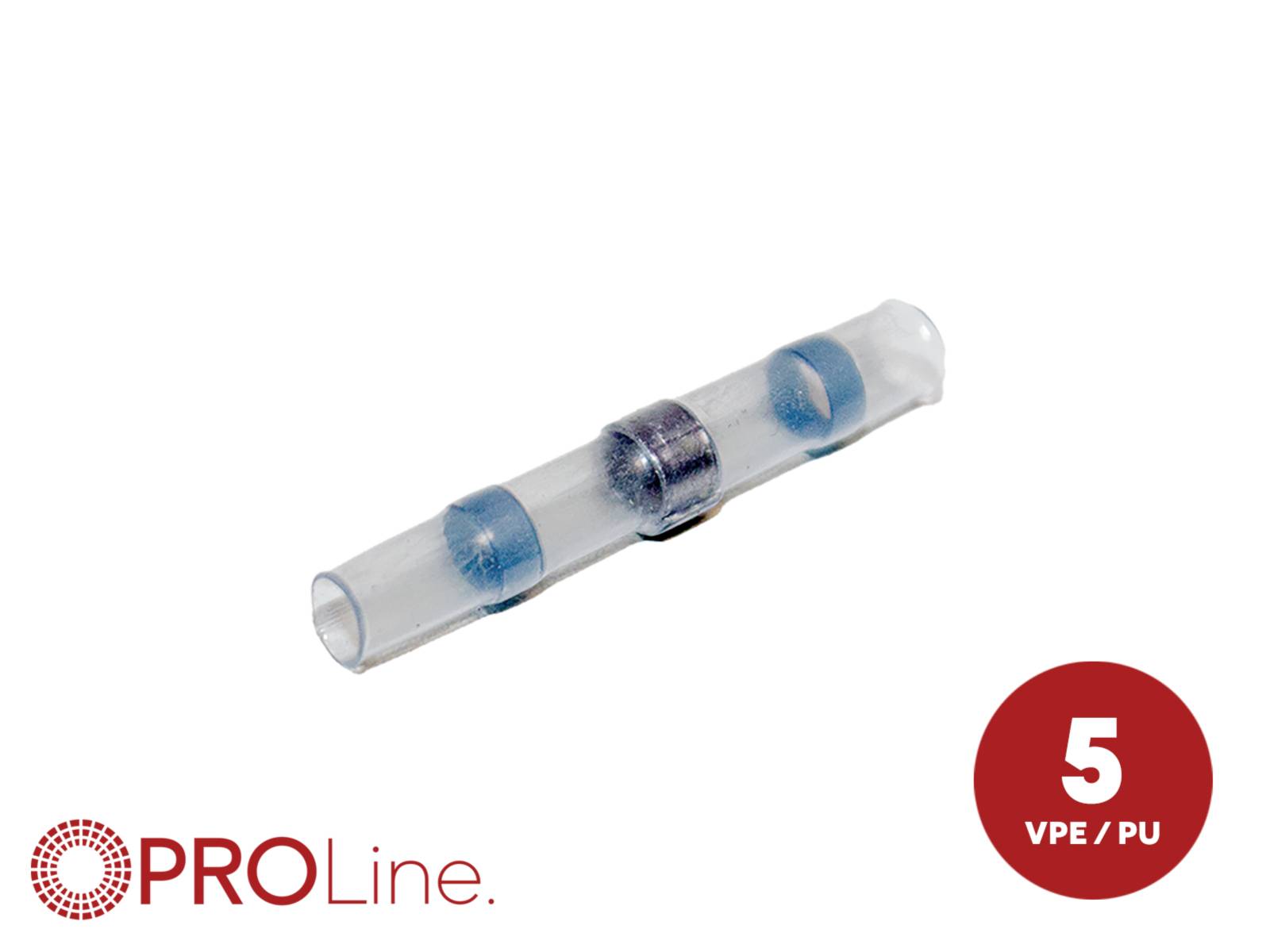

ACV 347145-1-5-p butt connector 42 mm, heat-shrinking soldering link, polyolefin
- The heat-activated soldering ring melts at low temperature and forms an electrical connection, which enables a reliable splice without separate soldering tool. The insulating polyolefin sleeve shrinks during heating and seals the connection, whereby the soldering joint is protected against environmental influences. The semi-transparent sheath permits visual control of the soldering flow and the direction of the conductor during installation. The slim cylindrical shape is suitable for common stranded conductors and enables the easy connection of two cables in series.
Technical specifications
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
Blue
- Insulation type
Insulated
- Length
42 mm
- Content
1 pc(s)
- Manufacturer part #
347145-1-5-p
- Type
347145-1-5-p
- AWG max.
12
- AWG (min.)
14
- Insulation material
Polyolefin
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595173 ACV 347145-1-5-p Butt joint Insulated Blue 1 pc(s) Piece
Description
This butt connector connects two conductors with a pre-positioned soldering insert in a heat-active sleeve. When heated the solder will liquefy and coat the wire ends while the surrounding polymer contracts to form a tightly closing insulation layer. For installation, the stripped conductor is inserted into the ends and heated until the soldering ring flows and the sleeve shrinks. This produces a tight electrical connection. Typical application areas are cable connections in wiring harnesses and general electrical repairs requiring an insulated, compact connection. The connector is suitable for manual use or the use of a hot air blower and is intended for routine electrical maintenance and assembly work in industrial and outdoor environments.
This text is machine translated.
This text is machine translated.
Features
- Length: 42 mm
- Cable cross-section: 1.8 mm²–4.5 mm²
- Wire cross-section: 2.8 mm²–4.0 mm²
- AWG range: 14–12
- Insulation material: Polyolefin
- Insulation type: Insulated
- Shrink connector activation temperature: Min. 140 °C
- Operating temperature range --55°C to +125°C max.
- Factory color: Blue
- Connector category: Heat shrink soldering connector
- Features: Low-temperature soldering ring with flux; dust and moisture proof; semi-transparent sleeve for inspection
