ACV Blade connector Connector thickness: 0.8 mm Partially insulated Blue 1 pc(s) Piece
Item no:
Packaging type
Piece
Product type
Blade connector
Insulation type
Partially insulated
Content
1 pc(s)
Factory colour
Blue
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 346323-2-5-p flat plug connector & piggyback plug connector 6.3 mm flat plug connection flat sleeve electrolytically tin-plated brass
- Blue
- x 0.8 mm
- -
Technical specifications
- Packaging type
Piece
- Product type
Blade connector
- Factory colour
Blue
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Content
1 pc(s)
- Type
Flat plug/sleeve (m/f)
- AWG max.
14
- AWG (min.)
16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595168 ACV Blade connector Connector thickness: 0.8 mm Partially insulated Blue 1 pc(s) Piece
Description

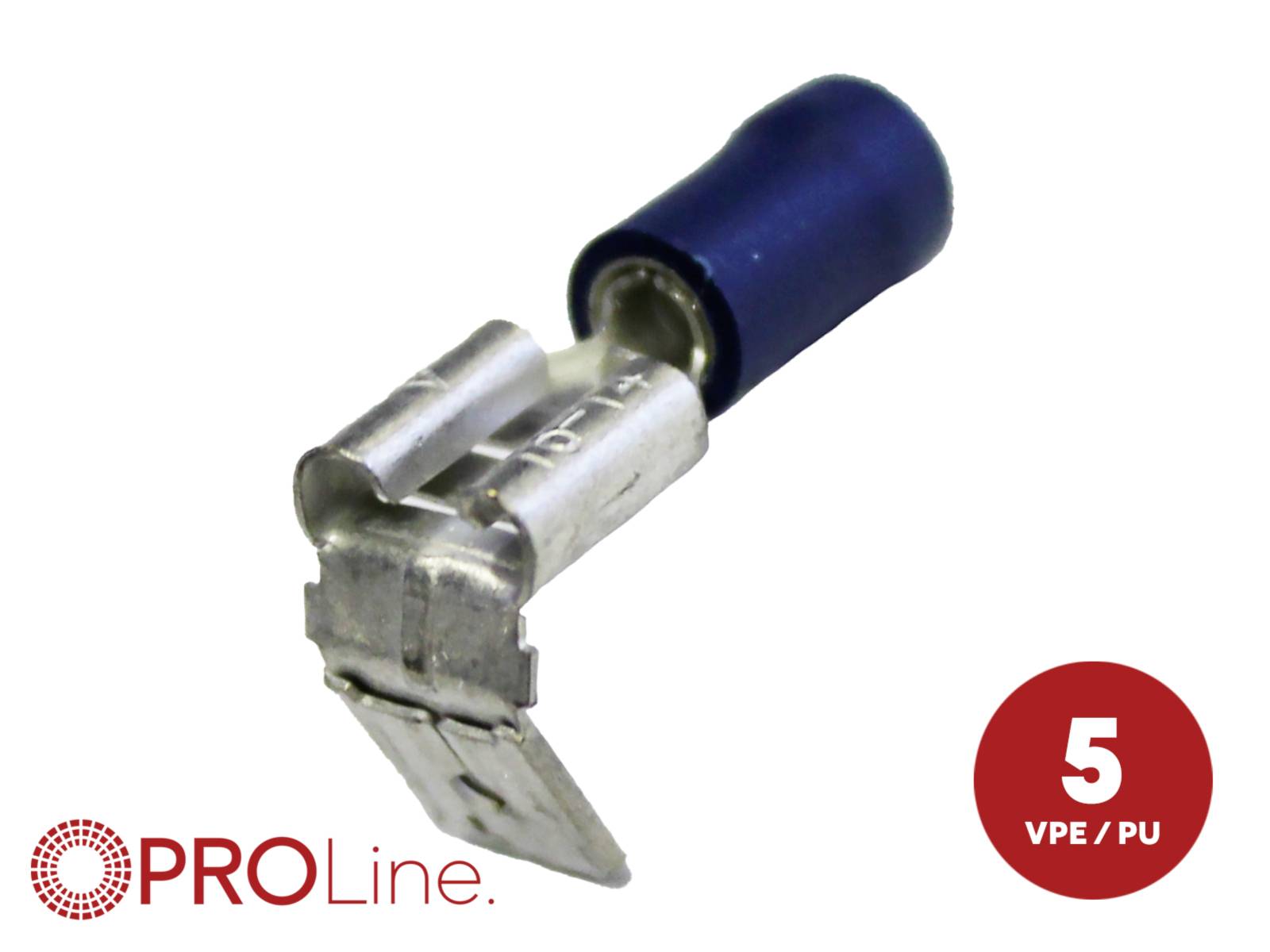

This female spade connector with integrated piggy connector connects the conductor by inserting a flat contact into the matching sleeve. It also has an additional piggyback socket for a second connection. The installation is done by pressing the conductor into the insulated sleeve and inserting the counter-contact for a secure mechanical and electrical connection. The partially insulated case ensures secure holding and strain relief during installation, while the tin-plated brass contact guarantees a low-resistance conductivity. Typical application areas are switch cabinets and cable harnesses, where a simple and space-saving solution is needed for supplying an additional circuit and a direct diversion without additional components is desired.
This text is machine translated.
This text is machine translated.
Features
- Plug width 6.3 mm
- Plug thickness 0.8 mm
- AWG range: 16–14 AWG
- Cross-section range: 1.5–2.5 mm²
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation type: Part-insulated
- Factory color: Blue
