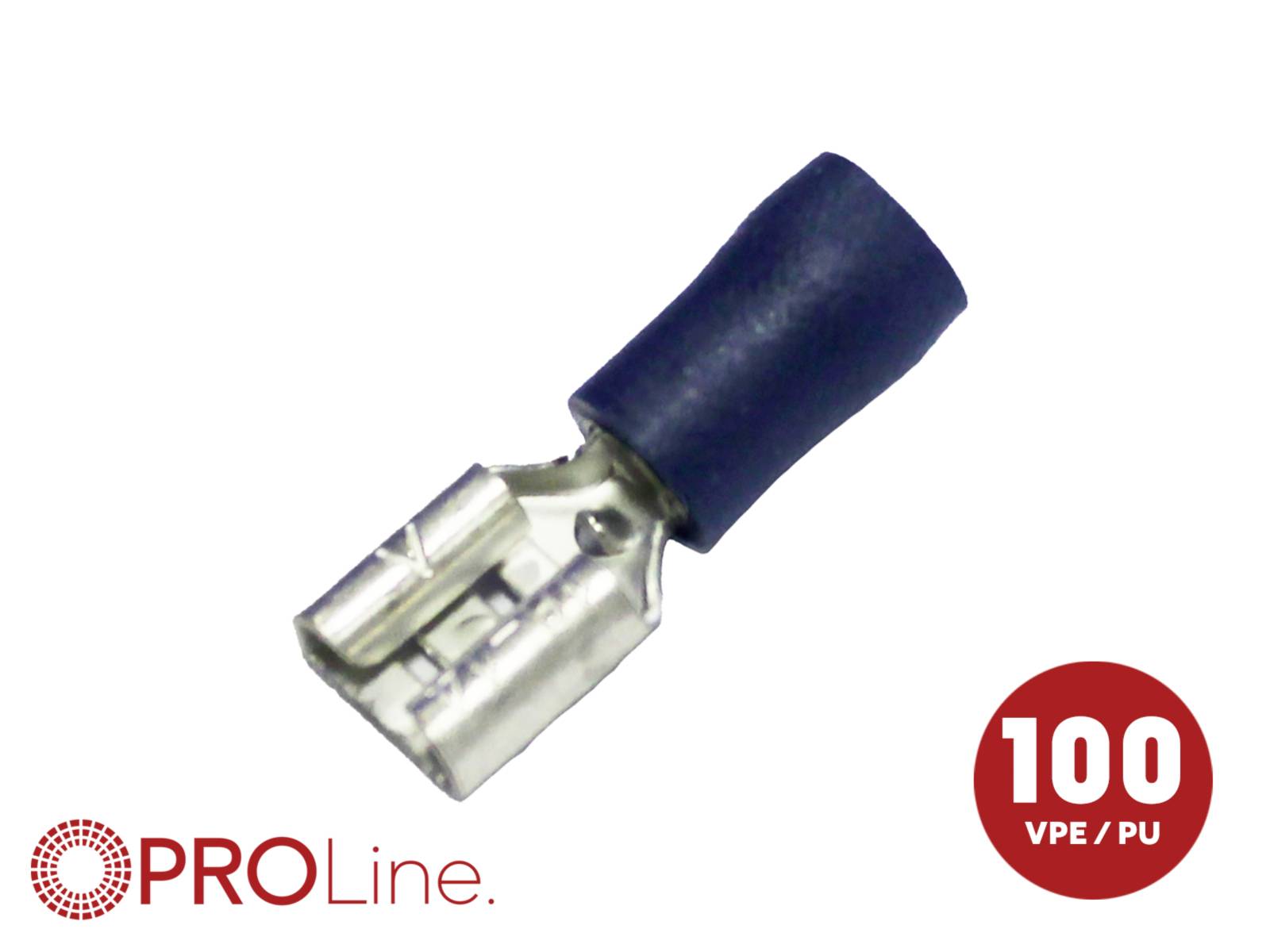

ACV Blade connector Connector thickness: 0.8 mm Partially insulated Blue 1 pc(s) Piece
Item no:
Packaging type
Piece
Product type
Blade connector
Insulation type
Partially insulated
Content
1 pc(s)
Factory colour
Blue
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 348003-2-0-p flat plug connector with 8.0 mm diameter, electrolytically tin-plated brass
- Blue
- x 0.8 mm
- -
Technical specifications
- Packaging type
Piece
- Product type
Blade connector
- Factory colour
Blue
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Content
1 pc(s)
- Type
Flat container (f)
- AWG max.
14
- AWG (min.)
16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595176 ACV Blade connector Connector thickness: 0.8 mm Partially insulated Blue 1 pc(s) Piece
Description
This female spade connector with integrated branch connector is used to accept a matching flat plug and offers an additional branch for a second connection. During installation, the stripped conductor is inserted into the PVC insulation and connected to the contact, creating a mechanical and electrical connection. The support sleeve serves for the positioning of the conductor and distributes the tensile forces. The assembly is used in low-voltage cable harnesses and for general automotive electrical connections where a compact, stacked connection is required. The function is determined by the straight-line contact surface, which enables fast insertion and removal as well as simple replacement or reconfiguration during operation.
This text is machine translated.
This text is machine translated.
Features
- Plug width 8.0 mm
- Plug thickness 0.8 mm
- AWG Range: 16–14 (min.–max.)
- Cross-section range: 1.5–2.5 mm²
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation type: Part-insulated
- Temperature range: -10 °C to 75 °C
