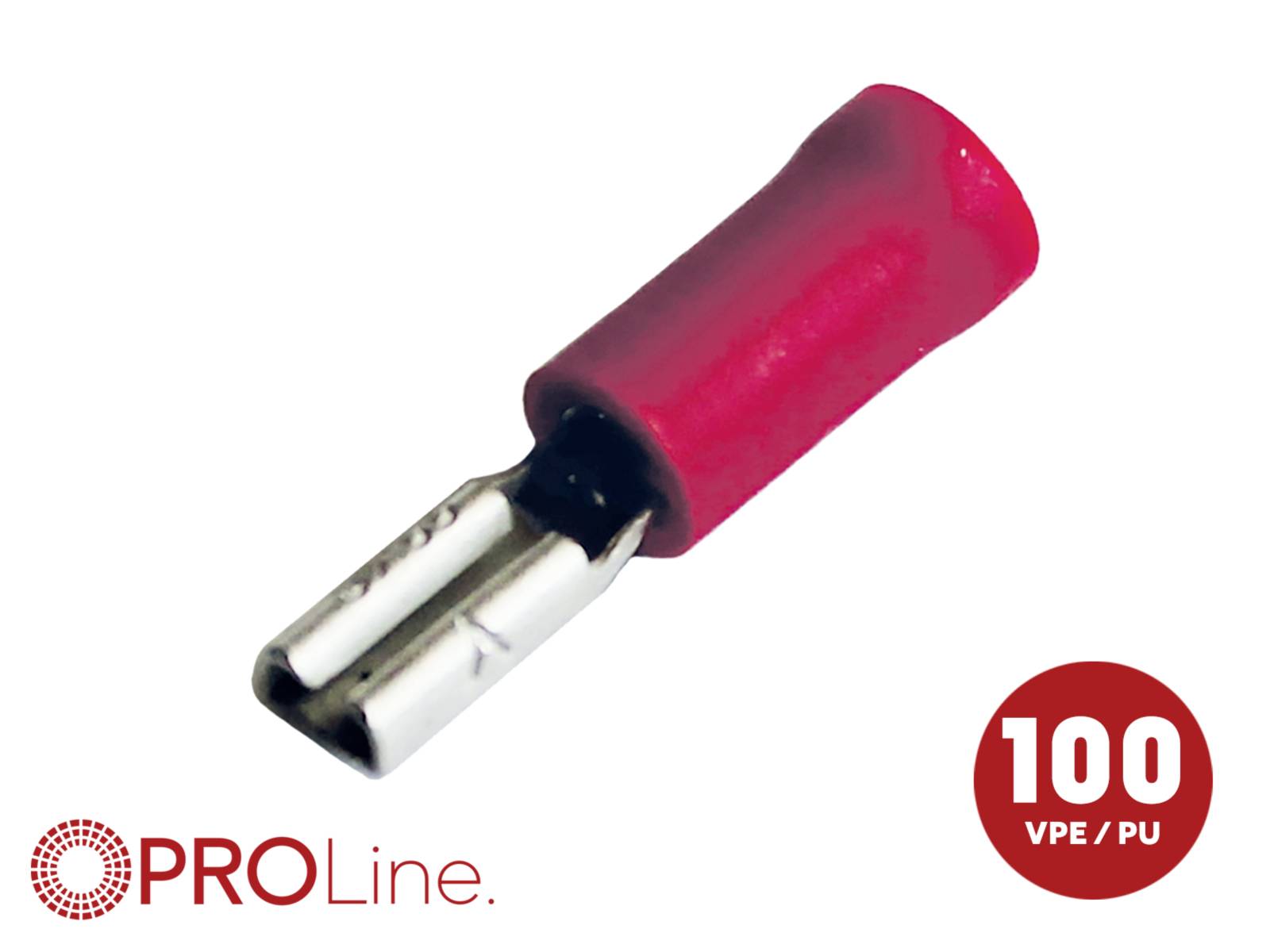

ACV Blade connector Connector thickness: 0.8 mm Partially insulated Red 1 pc(s) Piece
Item no:
Packaging type
Piece
Product type
Blade connector
Insulation type
Partially insulated
Content
1 pc(s)
Factory colour
Red
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 342801-1-0-p flat plug connector with 2.8 mm diameter, electrolytically tin-plated brass
- Red
- x 0.8 mm
- -
Technical specifications
- Packaging type
Piece
- Product type
Blade connector
- Factory colour
Red
- Connector thickness
0.8 mm
- Support sleeve
Yes
- Insulation type
Partially insulated
- Content
1 pc(s)
- Type
Flat container (f)
- AWG max.
16
- AWG (min.)
22
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595160 ACV Blade connector Connector thickness: 0.8 mm Partially insulated Red 1 pc(s) Piece
Description
This female spade connector with integrated branch connector is a two-part crimp connection that receives a matching flat contact and also offers an additional connection for an additional lead. The contact connects the flat contact and thus provides a circuit HER. The branch connector serves as parallel contact for an auxiliary conductor. Both ends are fixed to the wire with a single crimp connection. The installation is done by pressing the conductor into the sleeve body and inserting the matching flat contact in the blade receptacle. The support sleeve holds the conductor in place and prevents it from coming loose due to vibrations. Typical applications include cable extensions, auxiliary cables in electrical cabinets and signal feeders in automotive and industrial technology, where a compact, stackable connection is required.
This text is machine translated.
This text is machine translated.
Features
- Plug width 2.8 mm
- Plug thickness 0.8 mm
- AWG range: 22–16 AWG
- Cross-section range: 0.5–1.5 mm²
- Insulation material: Vinyl PVC
- Contact material: Electrolytically tin-plated brass
- Insulation: Partly insulated
- Operating temperature range: -10 °C to 75 °C
