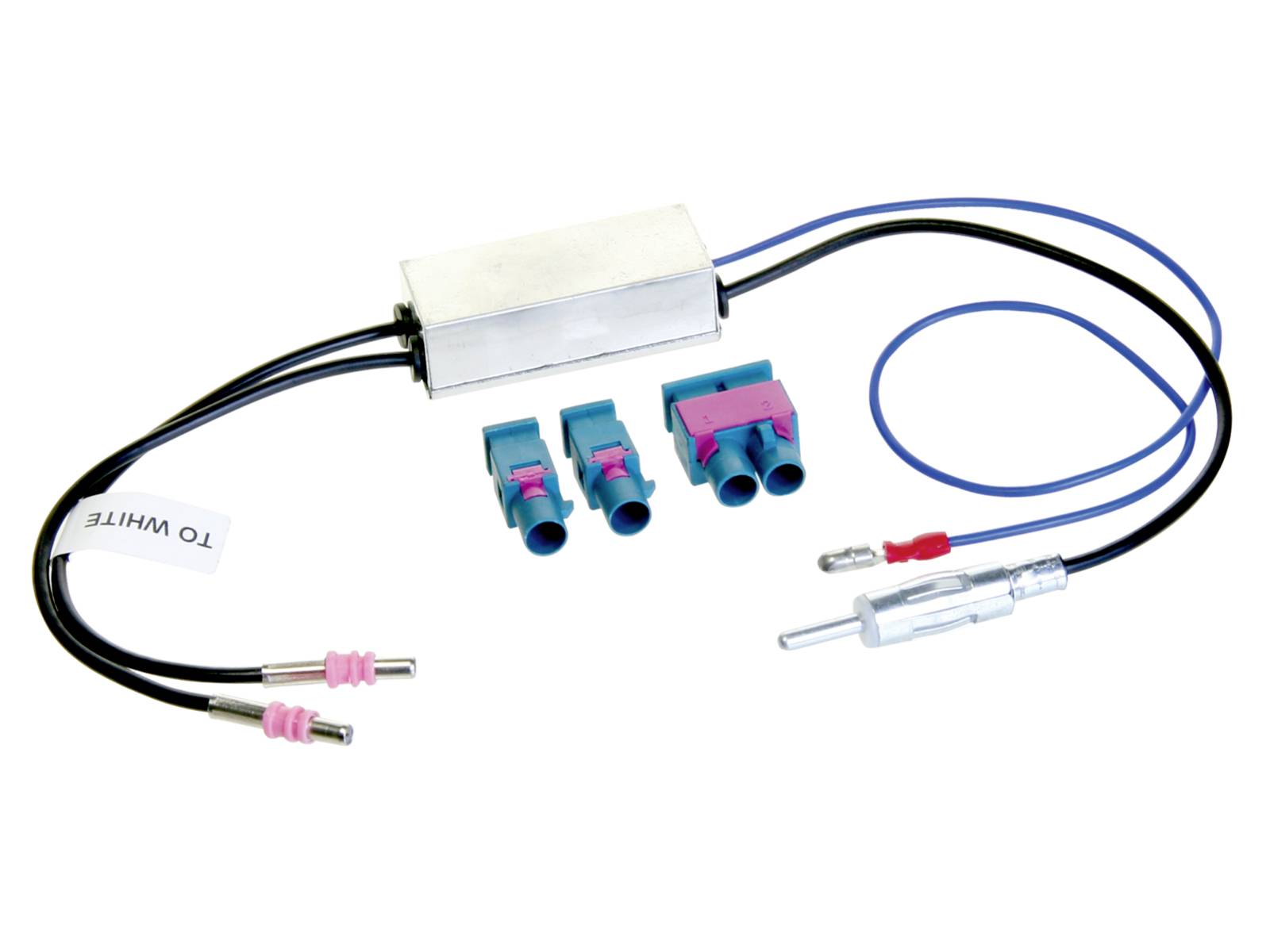

ACV Car antenna adapter SMBA-(FAKRA) Z plug Blue 1524-70
EAN:
Part number:
Item no:
3 Piece(s)
Sales and shipping:
Number
Total (€ 12.60 / piece)
€
Only 3 Piece(s) available
Highlights & Details
ACV 1524-70 car radio antenna adapter 20 cm Fakra Z to DIN blue
- The Fakra Z-plug to DIN plug enables direct connection between the original vehicle cabling and retrofit radios. This simplifies installation and reduces the need for adapters.
- The 20 cm cable length allows a flexible laying in the dashboard and ensures a proper cable management when retrofitting.
- The phantom power supply ensures the antenna is supplied, if required, and hence uninterrupted reception with active antennas.
- The blue factory color underlines the OEM appearance and facilitates quick identification within the vehicle wiring harness.
Technical specifications
- Product type
Car antenna adapter
- Version
Adapter cable
- Connections
SMBA-(FAKRA) Z plug
- Factory colour
Blue
- Connection type
DIN connector
- Length
20 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3594975 ACV Car antenna adapter SMBA-(FAKRA) Z plug Blue 1524-70
Description
This car radio antenna adapter converts a Fakra Z-Z interface into a DIN plug, thus allowing the electrical connection between vehicle antennas and retrofitted car radios. During installation, the adapter is plugged between the vehicle's Fakra Z socket and the DIN antenna input of the radio. It transmits HF-signals and at the same time transmits the necessary phantom power for active antenna elements. Thanks to its compact cable design, the Ideal is suitable for laying behind consoles and dashboard, where space is limited. Typical applications include retrofitting radios in vehicles with original Fakra connectors, restoring antenna power after removing the dashboard, and supporting systems that require permanent phantom power for antenna operation.
This text is machine translated.
This text is machine translated.
Features
- Cable length: 20 cm.
- Connection type: Fakra Z (plug) to DIN (plug)
- Cable version: Adapter cable
- Colour: Blue
- Cable characteristics: High contact reliability; phantom power; compatible with OEM systems
- Product category: Car antenna adapter
- Manufacturer number: 1524-70
