ACV Ring terminal Cross section (max.)=2.5 mm² Hole Ø=6.5 mm Insulated Blue 1 pc(s) Piece
Item no:
Packaging type
Piece
Product type
Ring terminal
Thread size
M6
Hole Ø
6.5 mm
Insulation type
Insulated
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Only 2 Piece(s) available
Highlights & Details

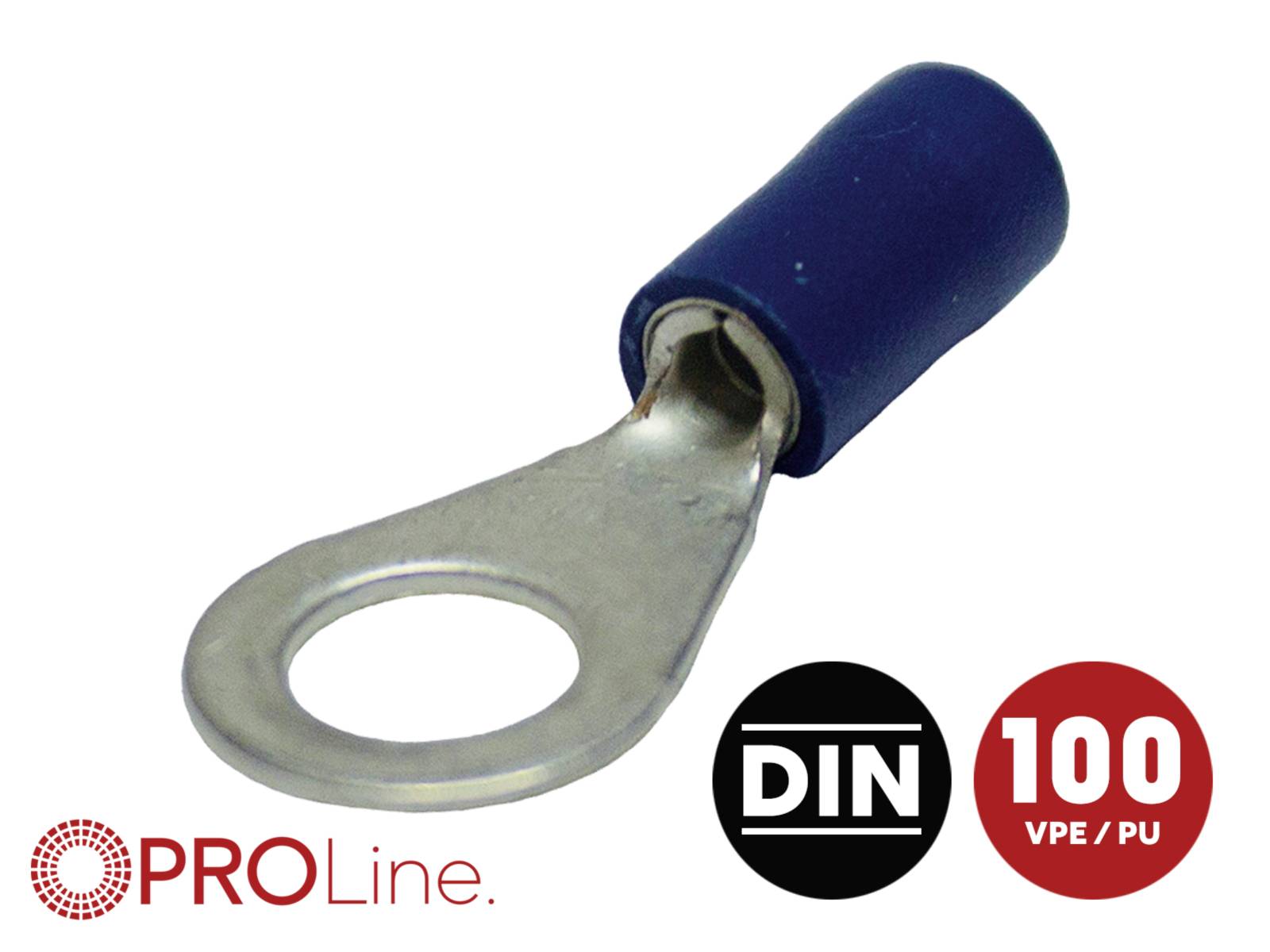

ACV 346550-2-0-p ring terminal 6,5Ø M6 vinyl PVC blue
- 1.5 - 2.5 mm²
Technical specifications
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M6
- Hole Ø
6.5 mm
- Insulation type
Insulated
- Factory colour
Blue
- Content
1 pc(s)
- AWG max.
14
- AWG (min.)
16
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Insulation material
PVC
- Dimensions
26.5 mm
- Cross-section range
1.5 - 2.5 mm²
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595171 ACV Ring terminal Cross section (max.)=2.5 mm² Hole Ø=6.5 mm Insulated Blue 1 pc(s) Piece
Description
This ring terminal connects a conductor to a bolt by compressing the conductor in the insulated sleeve casing and pushing the ring over the mounting point. The installation takes place by inserting the stripped conductor into the vinyl sleeve and then pressing for a mechanical and electrical connection. The tin-plated copper eyelet reduces the contact resistance at the terminal. The profiled design facilitates the insertion of the conductors during assembly and is suitable for wiring control cabinets and machine connections. The operating behavior remains stable in typical electrical installation environments and enables routine maintenance and replacement work without special tools.
This text is machine translated.
This text is machine translated.
Features
- Length: 26.5 mm.
- Length till the middle of the ring 21.0 mm
- Width 11.0 mm
- Hole diameter: 6.5 mm
- M6 thread size
- Cross-section (max.): 2.5 mm²
- Min Cross-section: 1.5 mm²
- AWG range: 16–14
- Contact material: Electrolytically tin-plated copper
- Insulation material: Vinyl PVC
- Insulation color: Blue
- Temperature range: -10 °C to +75 °C
- Connection type: Ring terminal
- DIN 46234 standard cover
- Packing: Piece
- Compliance notes: REACH and RoHS compliant
