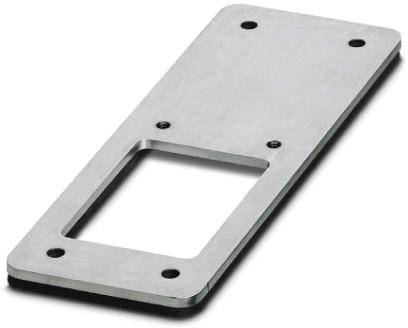

Rectangular metal plate with a rectangular cut-out in the centre and four mounting holes at the corners.

Image similar

Rectangular metal plate with a rectangular cut-out in the centre and four mounting holes at the corners.

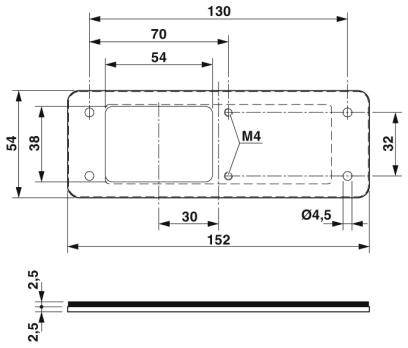

Technical Drawing: Rectangular Metal Plate with M4 Thread and Holes. Dimensions: 130x38 mm, comprising various distances and diameters.

1/2

Image similar

Packaging type

Piece

Product type

Adapter plate

Type

HC-B24/6-ADP-SS

Manufacturer part #

1034215

Content

1 pc(s)

Datasheet (PDF)

Deutsch (Deutschland)

Phoenix Contact

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Height: 5 mm
Width 53 mm
Length 151 mm.
Mounting instructions: Torque of mounting screws 1 ... 2 Nm
Drill hole diameter 5.5 mm
Horizontal drill hole spacing 130 mm
Vertical hole spacing 32 mm
Design: B24

Packaging type: Piece

Type: HC-B24/6-ADP-SS

Product type: Adapter plate

Manufacturer part #: 1034215

Content: 1 pc(s)

Material: Stainless steel

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2137629 Adapter HC-B24/6-ADP-SS Phoenix Contact Content: 1 pc(s) Adapter plate

User & Safety Instructions

User & Safety Instructions 2137629 Adapter HC-B24/6-ADP-SS Phoenix Contact Content: 1 pc(s) Adapter plate

Description

Adapter plate, design: B24 to B6
