Adels-Contact 601103 LED 3050 Distributor box flexible: 0.34-0.5 mm² fixed: 0.34-0.5 mm² Number of pins: 2 1 pc(s) Light
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Distributor box
Cross section (flexible) (min.)
0.34 mm²
Cross section (flexible) (max.)
0.5 mm²
Cross section (inflexible) (min.)
0.34 mm²
Datasheet (PDF)
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
Highlights & Details
Distribution box for LED spots
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Distributor box
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
0.5 mm²
- Cross section (inflexible) (min.)
0.34 mm²
- Cross section (inflexible) (max.)
0.5 mm²
- Number of pins
2
- Factory colour
Light grey
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Content
1 pc(s)
- Manufacturer part #
601103
- Connection
Cut & Clip
- Insulation material
PA 6.6
- Nominal voltage
60 V DC
- RoHS-compliant
Yes
- Temperature range
+100 °C
- Connector clip features
Latch
Documents & Downloads
Datasheet
Datasheet 409161 Adels-Contact 601103 LED 3050 Distributor box flexible: 0.34-0.5 mm² fixed: 0.34-0.5 mm² Number of pins: 2 1 pc(s) Light
User & Safety Instructions
User & Safety Instructions 409161 Adels-Contact 601103 LED 3050 Distributor box flexible: 0.34-0.5 mm² fixed: 0.34-0.5 mm² Number of pins: 2 1 pc(s) Light
Description

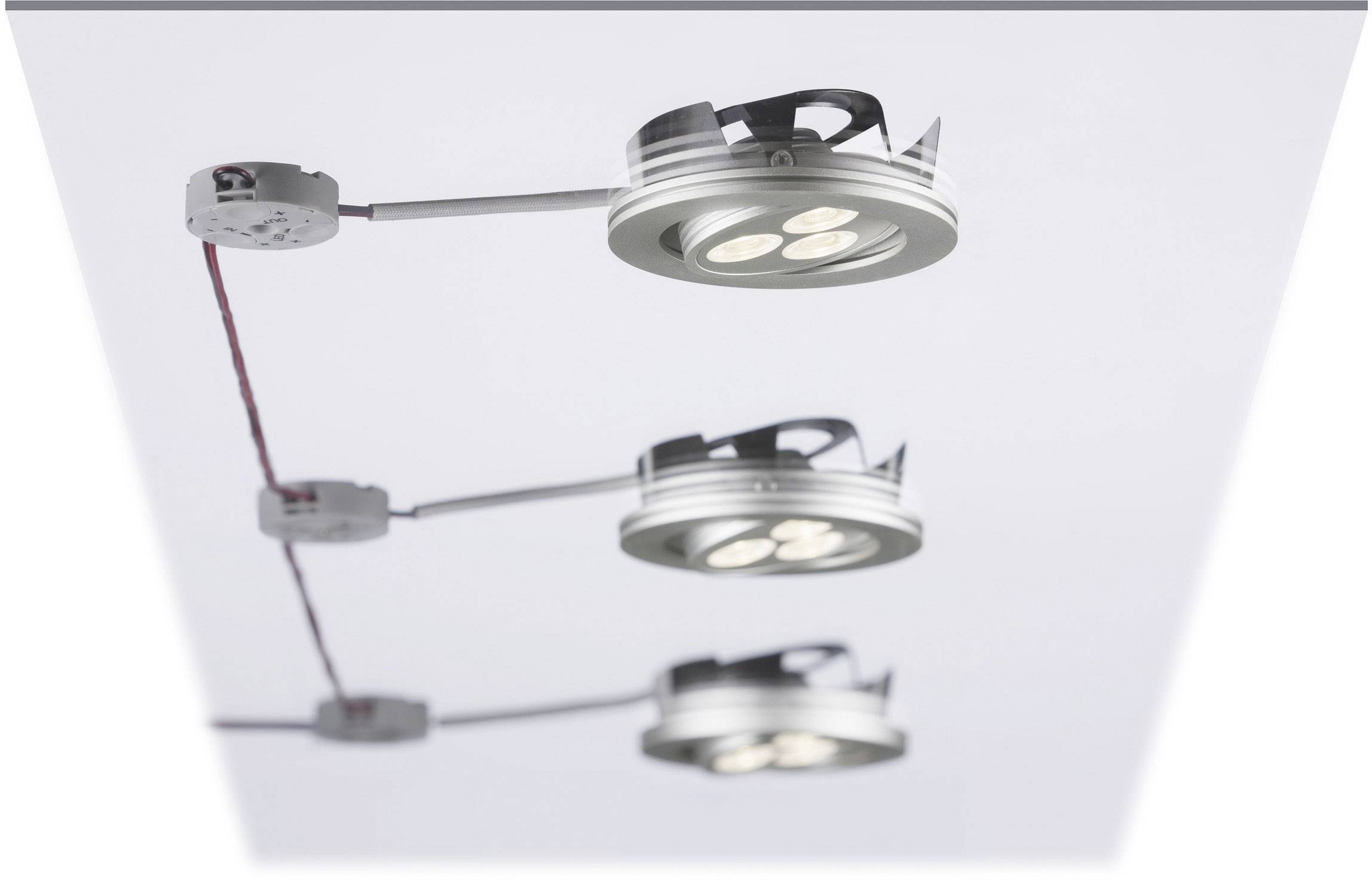

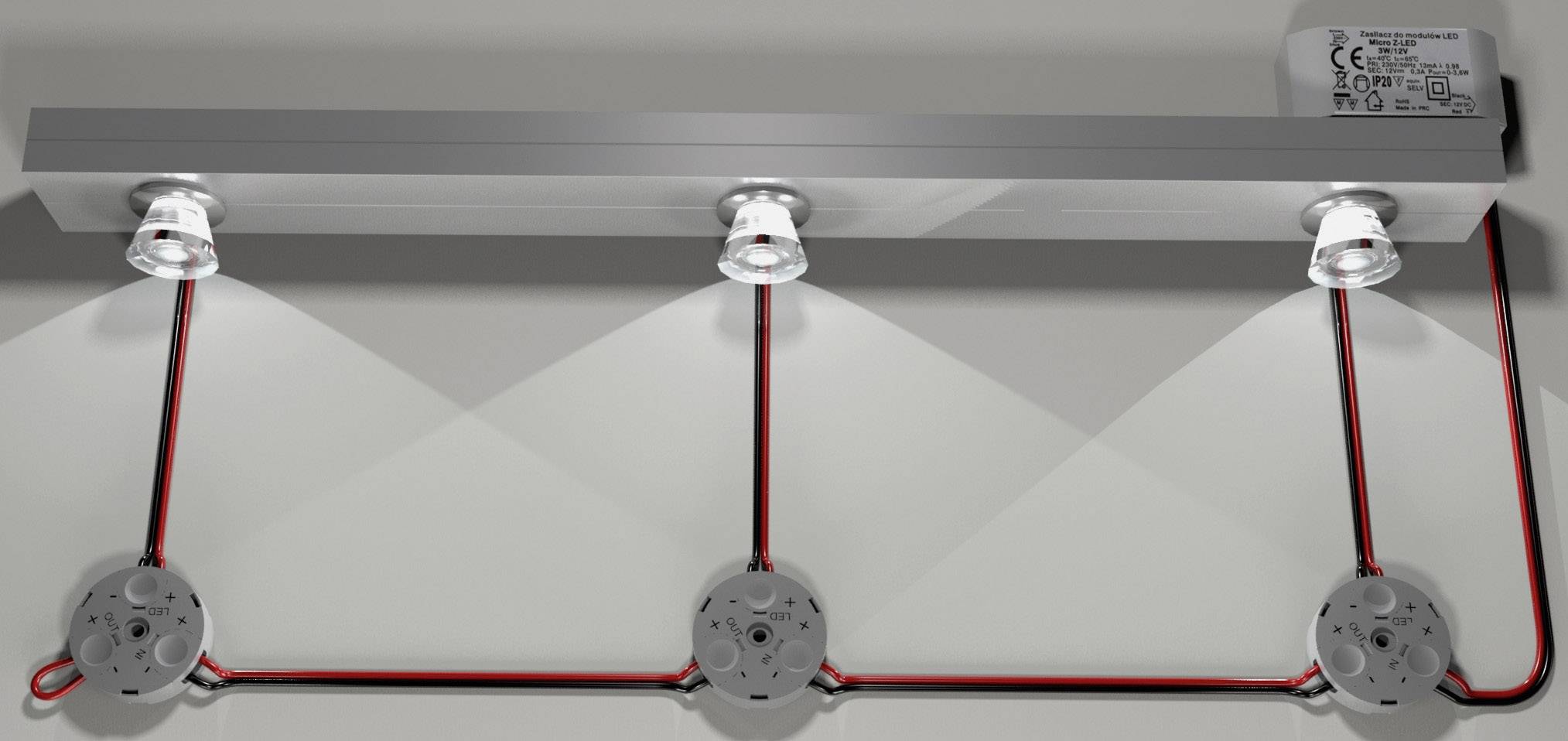

The patented solution terminaLED ® is when connecting in series LED spots, e.g. in kitchens, furniture or sale displays. The 2-wire is inserted without stripping in the box and with a finger press connected: from the LED driver for the first, second,…, last module - done! The benefits compared to conventional connection technologies are obvious: no distributor with star-shaped wiring, no planning and ordering effort as cable lengths for installation, less material and labor costs.
