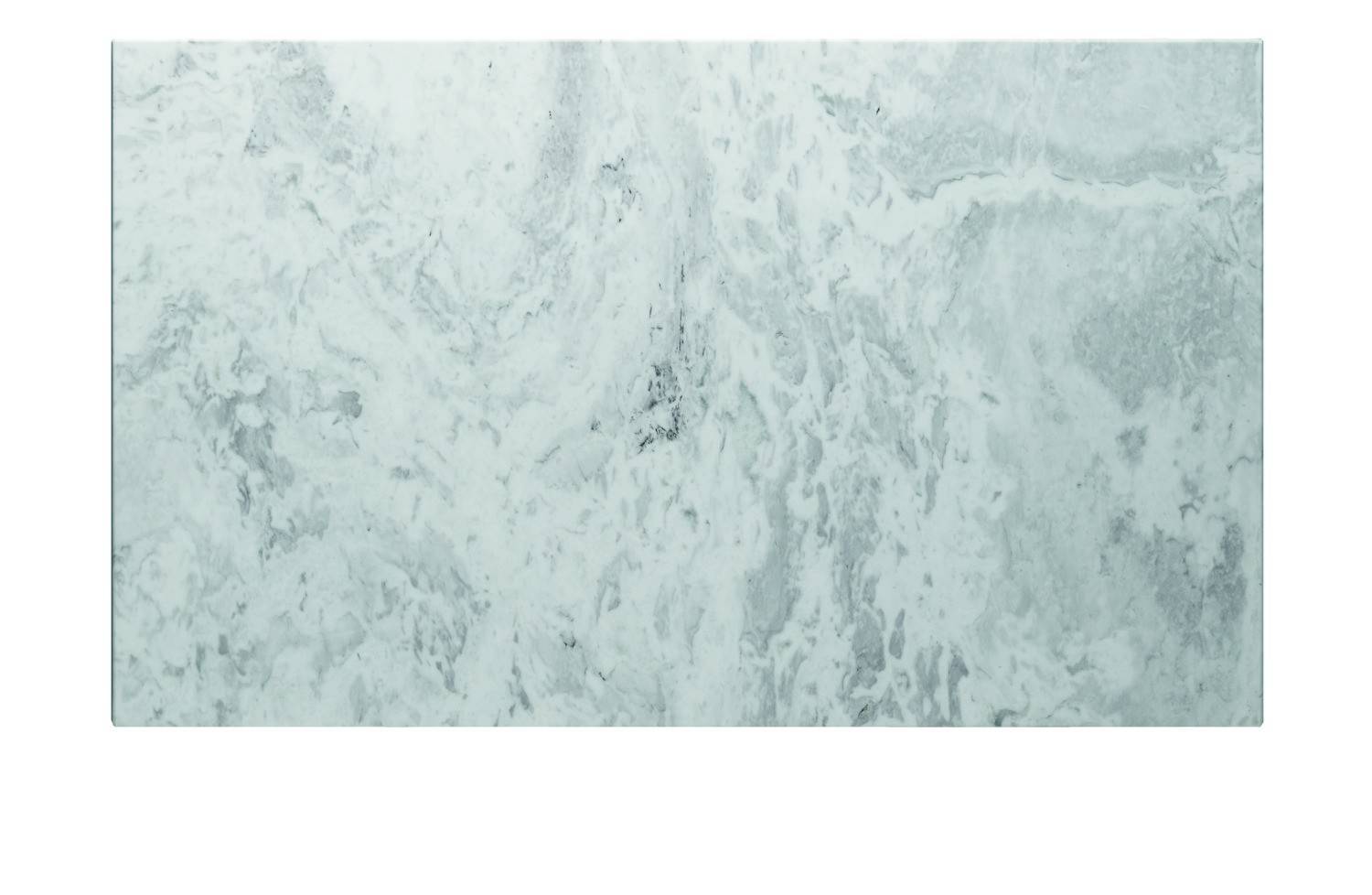

AEG 189878 Natural stone heater 189878 Marble
EAN:
Part number:
Item no:
Technical specifications
- Design: Marble
- Connected load 0.8 kW
- Width 1000 mm
- Height: 500 mm
- Depth: 70 mm
- Weight: 44 kg
- Heating system: Heating cable
- With insulation plate: Yes
- Mounting type: Horizontal/vertical
- Protection class (IP) IP66
- Protection class: II
- With overheating protection: Yes
- Concealed wall bracket: Yes
- Product type
Natural stone heater
- Operating voltage
0 V
0.8 kW
- Timer
Yes
- Heater features
Overheating protection
IP66
- Protection class
II
- Factory colour
Marble
- Dim
(L x W x H) 1000 x 1000.00 x 500.00 mm
- Weight
44.00 kg
- Type
Marble
Doesn't apply
- Width
1000.00 mm
- Height
500.00 mm
- Length
1000 mm
- Depth
70.00 mm
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141747 AEG 189878 Natural stone heater 189878 Marble
Description
Application Wall-hanging radiation heating is an efficient transition heating. It also covers the additional heat requirement in the living area, in the bathroom and corridor as well as in the work areas. Comfort features Natural stone heating is a natural product with an individual character. Each device is unique in color and marble. The high-quality natural stone panel with heat conductor embedded at the rear offers a large radiation-effective surface. Installation The heat return plate for wall mounting is included. The maintenance-free heater can be installed vertically or horizontally, wall fixing points are not visible from the front. With connection cable for permanent connection. The natural stone heating system must be controlled by a controller which has an electronic room temperature control with weekday control and adaptive control of the start of heating. Safety overheating protection by two safety temperature monitors
