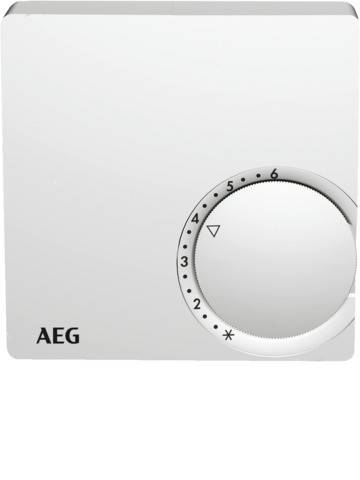

AEG 223297 223297 Temperature controller Surface-mount others 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design: Other
- Power supply type 230 V AC
- With receiver: No.
- Measuring range 5 - .30 ° C
- External sensor: No.
- Thermal feedback: Parallel
- Control characteristics: Other
- Suitable for heating: Yes
- Number of Heating Outputs: 1
- Suitable for cooling: No.
- Adjustable difference: No.
- Temperature read: No.
- With noise level indicator: No.
- Sensor/sensor type: Bimetal
- Mounting type: Surface-mounted
- With display: No.
- Operation: Rotation
- Hidden operation: No.
- With drinking water circuit: No.
- Contact type: Closer (NO)
- Max. Contact voltage 230 V.
- Max. Contact load 16 A.
- Protection class (IP) IP30
- Explosion-proof: No.
- Colour: white
- Height: 25.5 mm
- Width 75 mm
- Depth: 25.5 mm
- Power consumption in standby mode (solststandby): 0 W.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Temperature controller
- Operation type
thermal
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Heaters
- Mounting type
Surface-mount
- Operating voltage
230 V AC
- Nighttime drop
Yes
- Factory colour
White
- Width
75.00 mm
- Height
25.50 mm
not cloud-enabled
IP30
- Dim
(W x H x D) 75.00 x 25.50 x 25.50 mm
- Type
others
- Contact type
1 maker
- Min. temperature setting
5 °C
- Depth
25.50 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141725 AEG 223297 223297 Temperature controller Surface-mount others 1 pc(s)
Description
Application The room temperature controller for surface mounting is equipped with a bi-metal controller with thermal feedback and a connection terminal for temperature reduction via an external timer.
This text is machine translated.
This text is machine translated.
