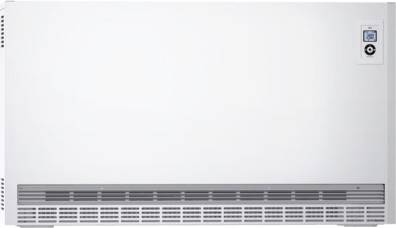

AEG 238692 Storage heater 238692 White
EAN:
Part number:
Item no:
Technical specifications
- Version: Standard memory
- Connected load 3.8..5 kW
- Rated connection power 5 kW
- Connection voltage 400 V
- With pre-assembled heater: Yes
- With electronic charge regulator: Yes
- AC control system can be selected: Yes
- Can be connected to DC control system: Yes
- Fault indicator: Yes
- With thermal relay: No.
- Fluff filter in the air suction area: Yes
- Number of selectable power levels: 4
- Colour: white
- Width 1130 mm
- Height: 650 mm
- Depth: 275 mm
- Weight 56 kg.
- With additional heater: No.
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- With static discharge: Yes
- With temperature controller: Yes
- Product type
Storage heater
- Operating voltage
400 V
- Switching stages
4
5 kW
- Timer
Yes
- Heater features
Insulated
- Factory colour
White
- Dim
(L x W x H) 1130 x 1130.00 x 650.00 mm
- Weight
56.00 kg
- Type
Standard memory
Doesn't apply
- Width
1130.00 mm
- Height
650.00 mm
- Length
1130 mm
- Depth
275.00 mm
- Nominal voltage
400 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141739 AEG 238692 Storage heater 238692 White
Description
Application The compact heat storage unit is installed on the floor and is suitable as a full heating system for homes or commercial premises. The device is used with low-tariff models with lock times. Comfort features The integrated electronic charge regulator with C-Plus technology charges the memory fully automatically and as needed without additional control units. Operation via display with simple programming and easy to set room temperature. The integrated room temperature controller has a programmable week timer with two preset and one individually programmable time program. The comfort temperature is reached in the timer mode time-accurate thanks to the adaptive control with learning function. The user can activate an energy-saving function to detect an open window. Programmable comfort and lowering temperature. The connected load can be reduced in four stages. The control input is designed for AC signals, a control input for DC signals is available as optional accessories. An additional heater can be optionally integrated. High-quality heat insulation technology for high heat retention capacity. The heater comes with a lint filter and is very quiet. Installation Setup takes place directly on the floor or floor-free on floor consoles. Only one type of kernels. The electric connection is easily accessible in Nicks due to the foldable connection panel. The connection is made directly using an NYM cable. A permanent control voltage is required. Safety Built-in protection temperature limiter.
