AEG 238961
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Other
- Nominal diameter: DN 15
- Pipe outer diameter of all connections 20 mm
- Connection: External thread
- Max. Tank capacity: 75 kW
- Design: Without mixed battery
- Print level item: PN 10
- Surface protection: Galvanised/electrolytically
- With couplings: No.
- With crimping set: No.
- With siphon: No.
- Interchangeable reversing flap: No.
- Shutter cock: No.
- Length of connection 1 100 mm
- Working length of connection 1: 100 mm
- Product type
Valve
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141755 AEG 238961
Description

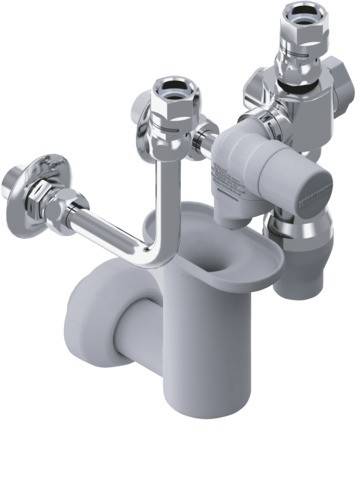

Application Security Group for pressure-resistant, closed wall storage. The delivery includes a shut-off valve, the backflow prevention, a pressure reducer and a removable membrane safety valve, with which a exceeding of the permitted operating pressure is prevented. The safety group is installed according to the specification simply in front of the hot water storage tank in the cold water supply line. For quick and easy maintenance, the safety valve can be ventilated via a rotary switch. The pressure reducing valve reduces too high the inlet pressure of the cold water line to the required system pressure.
This text is machine translated.
