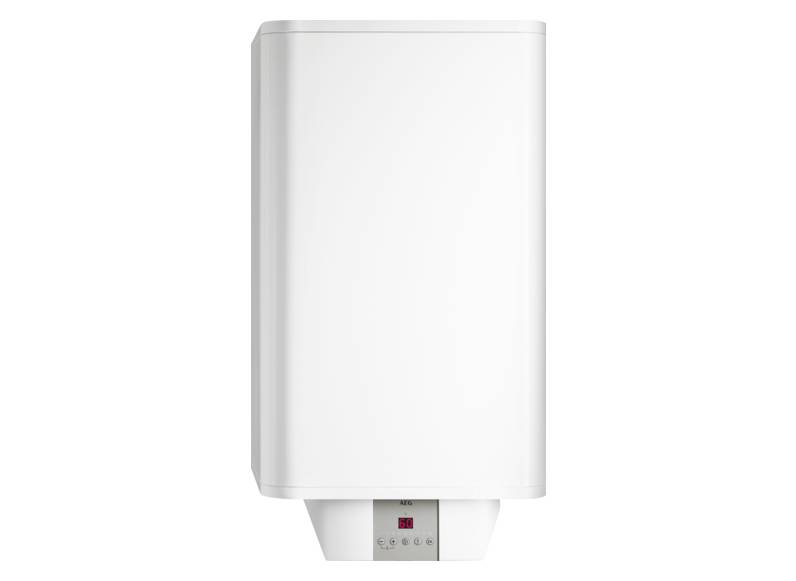

AEG DEM 30 ComfortEL DEM 30 ComfortEL Warm water tank A (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency rating: B
- Energy efficiency class spectrum: A to G.
- Material jacket: Steel
- Tank volume: 30 l
- Material of the boiler: Steel
- Rated output: 6 kW
- Connection voltage 230/.400 V
- Three-phase version: Yes
- Mains frequency: 50/60 Hz.
- Execution form: Hanging
- Socket/under-frame boiler: No.
- With night-time switching: Yes
- Duo version: No.
- Suitable for boiling water: No.
- Warm up time from 10 °C to 65 °C: 19.8 min
- PTO at 60°C, continuous operation 23.5 l/min.
- Wall setup: Yes
- Horizontal placement: No.
- Vertical placement: Yes
- With temperature display: Yes
- With temperature limit: Yes
- With circulation connection: No.
- Max. Permissible operating pressure: 6 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: Yes
- With cleaning opening: No.
- Protective anode: Yes
- Height: 696 mm
- Width 380 mm
- Depth: 392 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 21.5 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 21.5 mm
- Protection class (IP): IP25
- Energy efficiency Hot water: 39%
- Tap profile S
- Product type
Warm water tank
- Operating voltage
0 V
6 kW
IP25
- Width
380.00 mm
- Height
696.00 mm
- Depth
392.00 mm
- Manufacturer
AEG
A (A - G)
- Material
Steel
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141774 AEG DEM 30 ComfortEL DEM 30 ComfortEL Warm water tank A (A - G)
Description
Application The wall storage devices are universally suitable for open or closed operation. The closed, pressure-resistant devices can be used in single or dual-circuit mode or in boiler mode with different connection capacities. The temperature is infinitely adjustable via a dial.Efficiency The electronic system with smart control offers three ECO energy-saving programs. The display shows the target temperature, a temperature limit can be set. For increased hot water requirements, the rapid heating can be activated via a button in the two-circuit or boiler mode. Low power losses due to good heat insulation made from polyurethane hard foam, which can also be recycled. Installation Selectable power consumption. Fast and easy mounting with the height-adjustable universal wall suspension. The common wall storage devices can be replaced quickly and easily. The devices are suitable for connection to DVGW-tested plastic pipes. Anti-corrosion protection by the inner steel container, which is protected with special direct enamel and by the maintenance-free and automatically controlled external current anode. The stainless steel heat flange is suitable for the single-circuit, two-circuit or boiler operation. Automatic protection against frost for the container.
