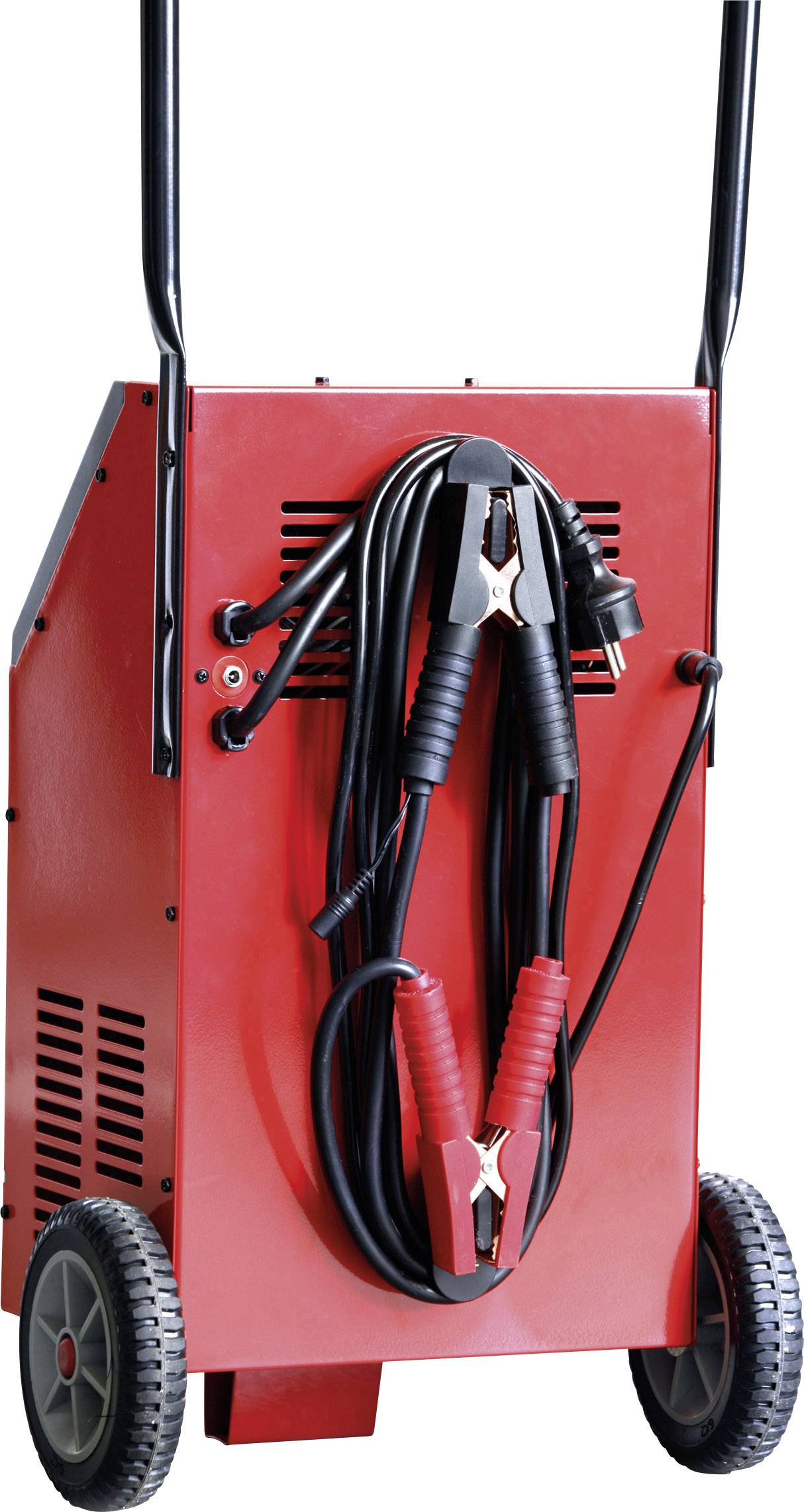

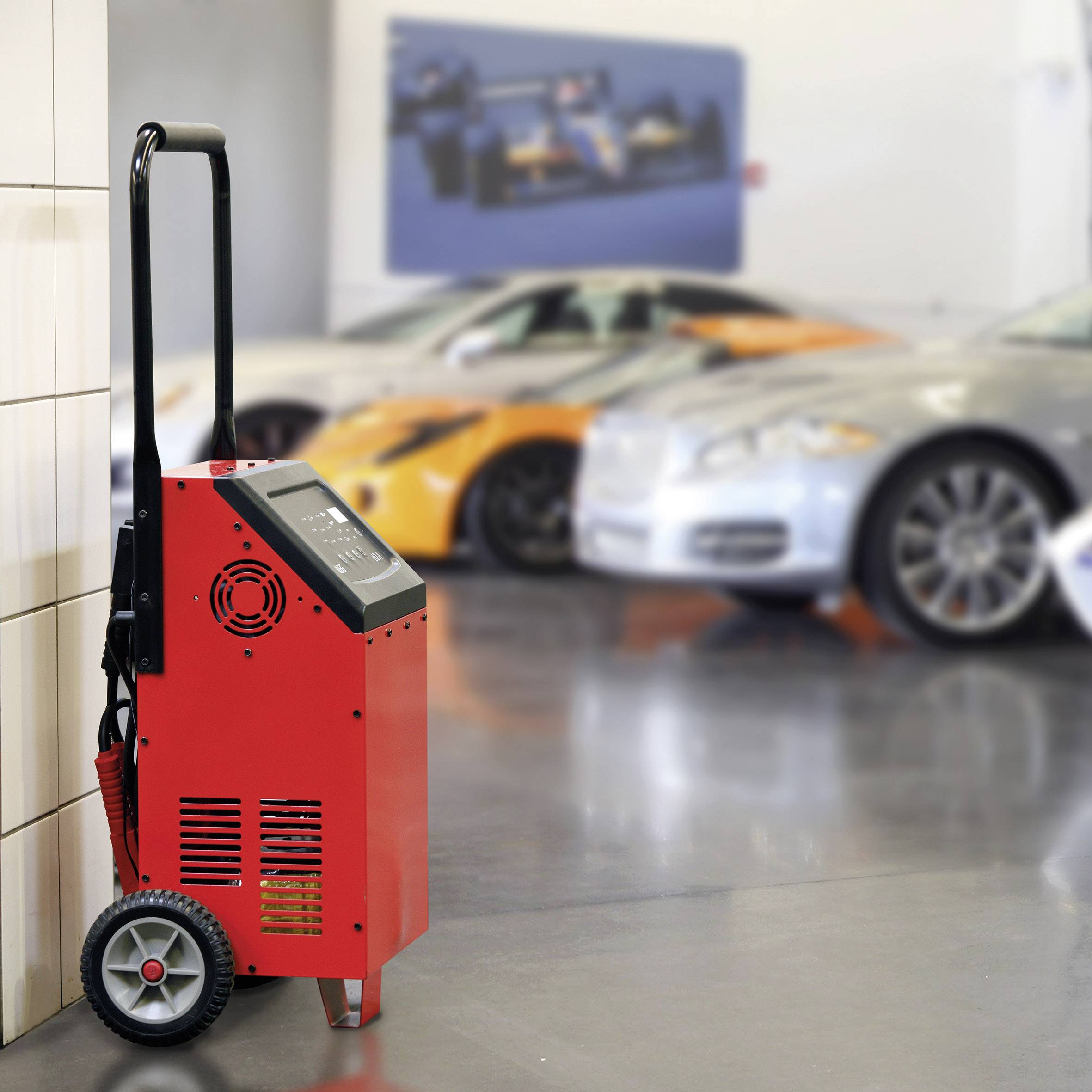

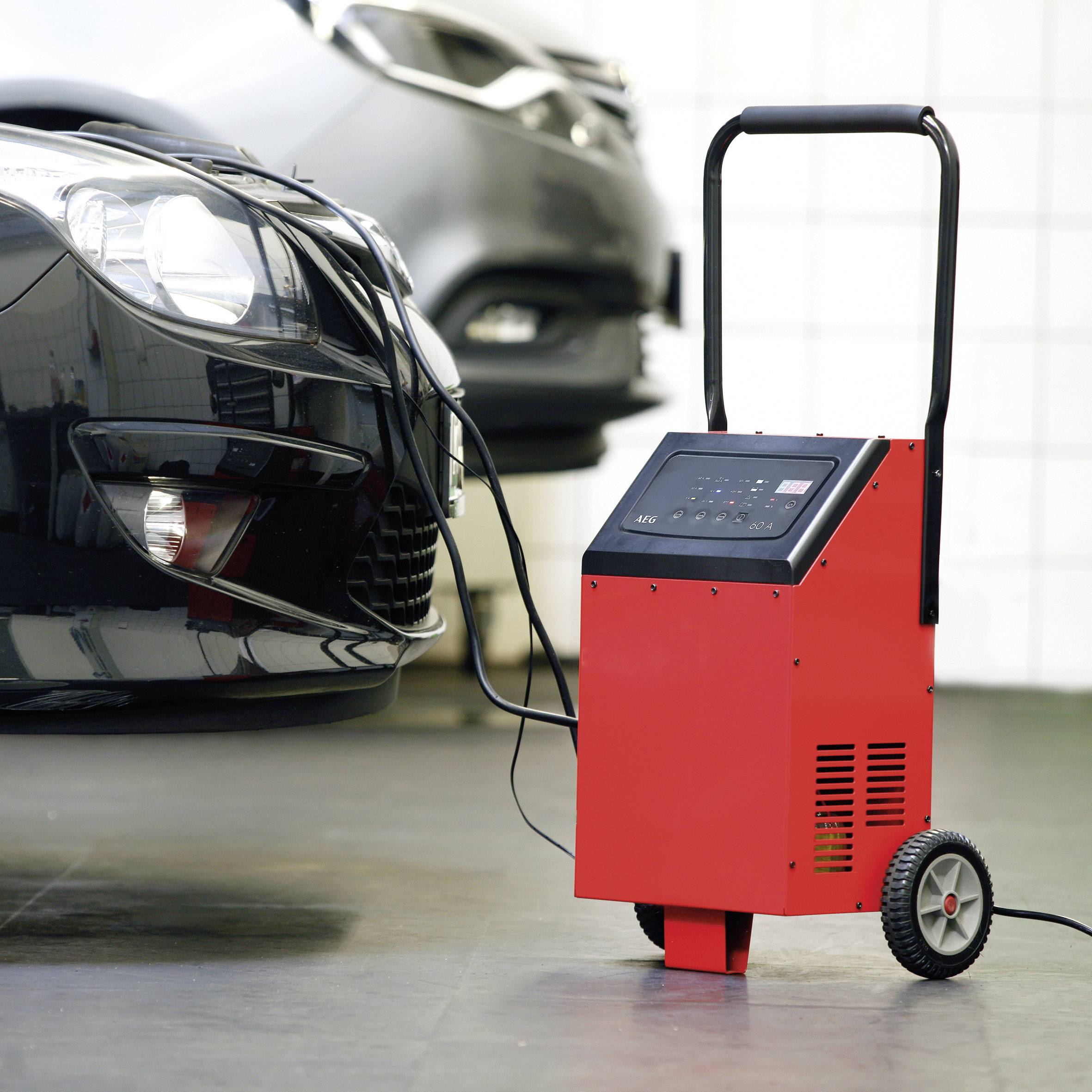

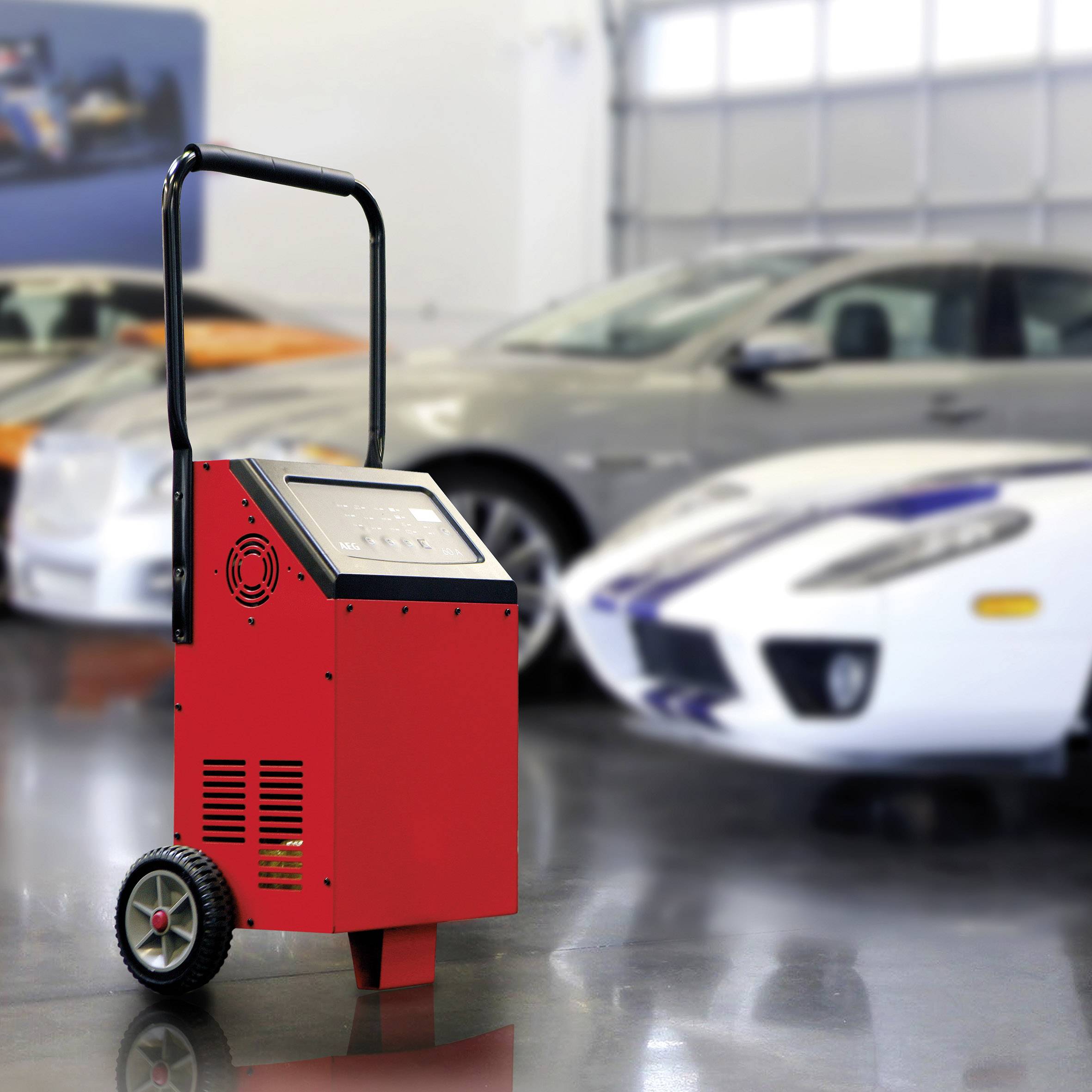

AEG LT 60 10091 Industrial charger 60 A
EAN:
Part number:
Item no:
Number
Total (€ 491.60 / piece)
€ 491.60
plus VAT.
Only 1 Piece(s) available
Highlights & Details
AEG LT 60 10091 Industrial charger 60 A
- For all common 12 and 24 V car batteries
- Intelligent 9-stage automatic charging cycle
- Rescue function, especially for deep-discharged batteries, starting from 1.5 V activated
- Power Supply transforms the charger for power supply, thereby, the charger supplies a fixed voltage of 13.6 V +/-0.3 V and a maximum current of 30 A
- Temperature-controlled charging characteristic with sensor in the minus pliers, for optimal determination of the battery temperature
- With jump start function up to 540 A
- Especially powerful workshop charger with up to 60 A charging current
Technical specifications
- Input voltage: 230 V AC, 50 Hz
- Eingansstrom: 15 A
- Output voltage: 12V/24DC
- Max. charging voltage 12 V: 14.7 V
- Charging voltage max: 24 V: 29.4 V
- Power supply: 12.6 V 30A
- Jump start function: 12 V: 540 A max. 180 A (5 seconds)
- Recommended battery capacity: 240 Ah
- Recommended battery capacity at trickle: 880 Ah
- Ambient temperature: -20 °C to +40 °C
- For batteries with a capacity: 10 Ah - 600 Ah
- Product type
Industrial charger
- Dim
(L x W x H) 570 x 375 x 320 mm
- Suitable for
Lead acid
SLA
VRLA AGM
- Weight
18.5 kg
- Features
Jump start
- Charging current at 12 V
60 A
- Charging current at 24 V
20 A
- Width
375 mm
- Height
320 mm
- Length
570 mm
IP20
- Jump start current (12 V)
540 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1884928 AEG LT 60 10091 Industrial charger 60 A
Description
The microprocessor charger LT60 from AEG is suitable for all common 12 and 24 V car batteries. It has an intelligent 9-stage automatic charging cycle and a temperature-controlled charging characteristic with sensor in the minus pliers, for optimal determination of the battery temperature. With jump start function up to 540 A. Power Supply transforms the charger for power supply, thereby, the charger supplies a fixed voltage of 13, 6V +/-0, 3 V and a maximum current of 30 A. Rescue function, especially for deep-discharged batteries, already has 1, 5 V is activated. Especially powerful workshop charger with up to 60 A charging current.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Charger LT60 including pola circuit cable with

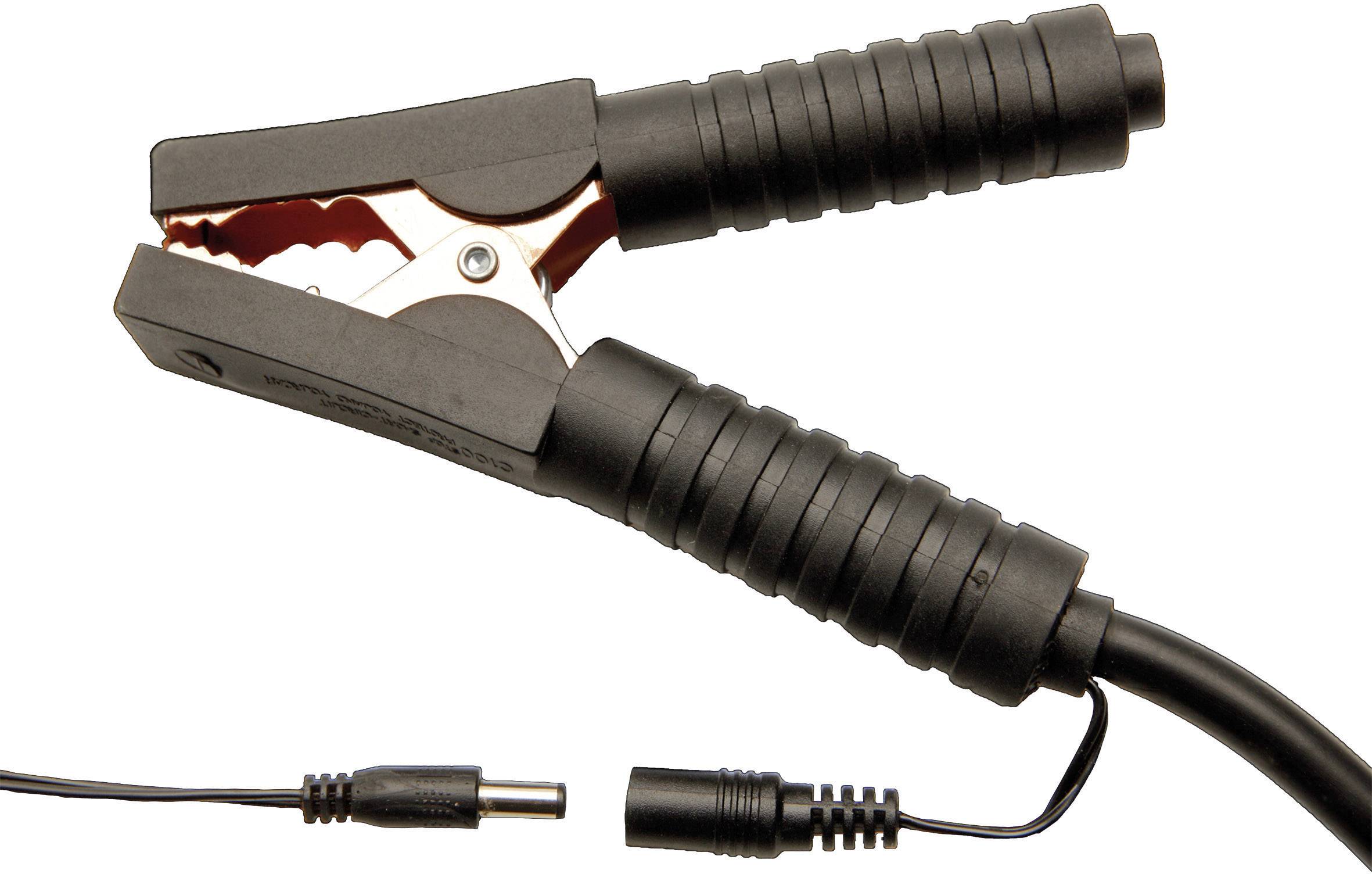

- Terminals
- Connection cable temperature sensor
- 6 screws 3 x 15 mm
- Handle
- User manual
