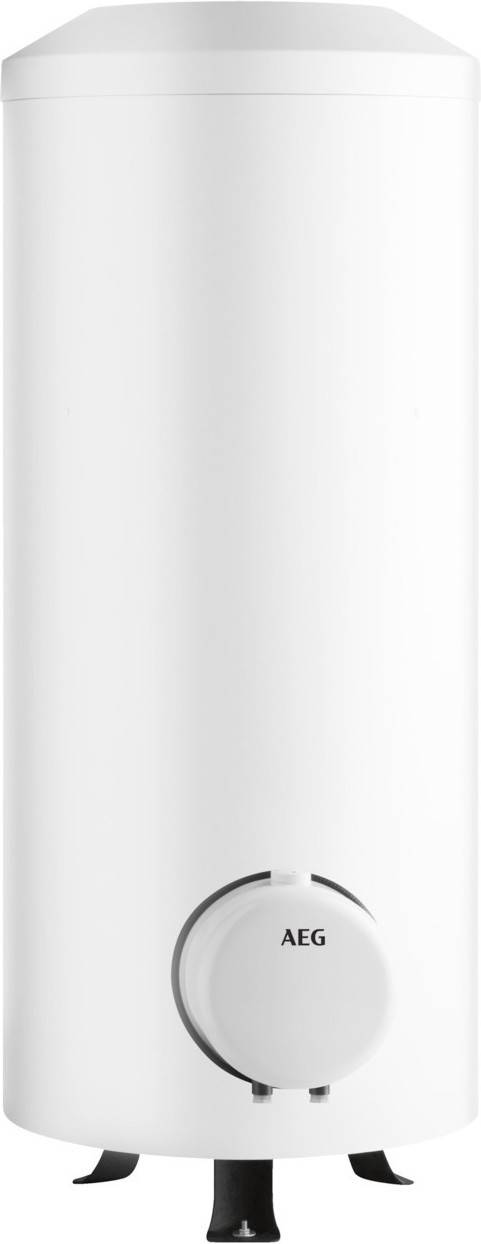

AEG STM 20 STM 20 Storage heater C (A+ - F)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class C
- Energy efficiency class spectrum: A to G.
- Material jacket: Steel
- Tank volume: 200 l
- Material of the boiler: Steel
- Rated output: 6 kW
- Connection voltage 230/.400 V
- Three-phase version: Yes
- Mains frequency: 50/60 Hz.
- Design: Stand model
- Socket/under-frame boiler: No.
- With night-time switching: Yes
- Low pressure version: No.
- Duo version: No.
- Suitable for boiling water: No.
- PTO at 60°C, continuous operation 30 l/min.
- Wall installation: No.
- Horizontal placement: No.
- Vertical placement: Yes
- With temperature display: No.
- With temperature limit: No.
- With circulation connection: Yes
- Max. Permissible operating pressure: 6 bar
- With fitting: No.
- With pressure reducing valve: No.
- With thermometer: No.
- With cleaning opening: No.
- Protective anode: Yes
- Height: 1570 mm
- Width 630 mm
- Depth: 730 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1/2 in. (15)
- Outer tube diameter of cold drinking water: 21.5 mm
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1/2 in. (15)
- Hot drinking water outside tube diameter: 21.5 mm
- Circulation line connection: Outer thread
- Nominal diameter of circulation pipe: 1/2 in. (15)
- Pipe outer diameter Circulation pipe: 21.5 mm
- Protection class (IP): IP25
- Energy efficiency Hot water: 39%
- Tap profile XL
- Product type
Storage heater
- Operating voltage
0 V
6 kW
IP25
- Width
630.00 mm
- Height
1570.00 mm
- Depth
730.00 mm
- Manufacturer
AEG
C (A+ - F)
- Material
Steel
- Nominal voltage
0 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141752 AEG STM 20 STM 20 Storage heater C (A+ - F)
Description
Application The splash-proof storage tanks are suitable for the central hot-water supply of single and two-family houses and commercial enterprises. The pressure-resistant, closed devices can be used alternatively in one-circuit or two-circuit mode with different connection capacities. Comfort features The temperature is continuously adjusted by means of a dial control, for which an energy-saving position is also available. If there is a high demand for warm water, the rapid heating can be started via a button in two-circuit mode. Efficiency Low energy losses due to good heat insulation made from polyurethane hard foam, which can also be recycled. Safety The high-quality magnesium anode as well as the inner steel container with its coating made of special direct enamel ensure corrosion protection.
