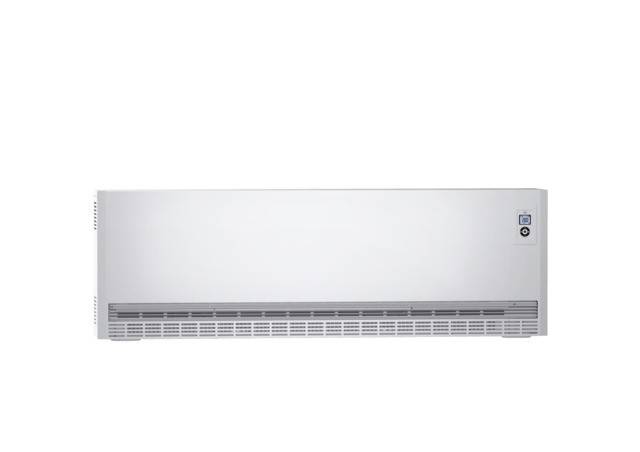

AEG WSP 5011 N Storage heater WSP 5011 N White
EAN:
Part number:
Item no:
Technical specifications
- Design: Low-memory
- Connected load 3.79999999..5 kW
- Rated connection power 5 kW
- Connection voltage 400 V
- With pre-assembled heater: Yes
- With electronic charge regulator: Yes
- AC control system can be selected: Yes
- Can be connected to DC control system: Yes
- Fault indicator: Yes
- With thermal relay: No.
- Fluff filter in the air suction area: Yes
- Number of selectable power levels: 4
- Colour: white
- Width 1480 mm
- Height: 490 mm
- Depth: 275 mm
- Weight 59 kg.
- With additional heater: No.
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- With static discharge: Yes
- With temperature controller: Yes
- Product type
Storage heater
- Operating voltage
400 V
- Switching stages
4
5 kW
- Timer
Yes (built-in)
- Heater features
Built-in thermostat
- Factory colour
White
- Dim
(W x H x D) 1480.00 x 490.00 x 275.00 mm
- Weight
59.00 kg
- Type
Low memory
Doesn't apply
- Width
1480.00 mm
- Height
490.00 mm
- Depth
275.00 mm
- Nominal voltage
400 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3141743 AEG WSP 5011 N Storage heater WSP 5011 N White
Description
Application The low heat storage system can be used as a full heating system for homes and commercial premises if low-tariff models with closed-off periods are used. The device is floor-mounted and is particularly suitable for alcoves with low window parapet.Comfort features The integrated electronic charging controller with C-Plus technology ensures fully automatic and demand-dependent charging without the need for additional control devices. The device is operated via a display with simple programming and the easy-to-set room temperature. The integrated room temperature controller is equipped with a programmable week timer with two preset and one individually programmable time program. The comfort temperature is reached in the timer-mode through the adaptive control with learning function at exact time. The user can activate an energy-saving function to detect an open window. Programmable comfort and lowering temperature. The connected load can be reduced in four stages. The device has a control input for AC signals, a control input for DC signals is possible with optional accessories. An additional heater can be integrated. High-quality heat insulation technology for a high heat retention capacity. The heat accumulator is equipped with a lint filter in the air intake as standard. Particularly quiet operation thanks to the tangential fan used. Installation The heat storage tank is either placed directly on the floor or on consoles without floor. Thanks to the folding connection panel, the electrical connection is also possible in niche areas. The connection is made directly using an NYM cable. A permanent control voltage is required. Safety Built-in protection temperature limiter.
