Aerotec 69002064 Pallet truck Load capacity (max.) 25000 kg Yoke length 1150 mm Upstroke (max.) 200 mm
EAN:
Part number:
Item no:
Highlights & Details

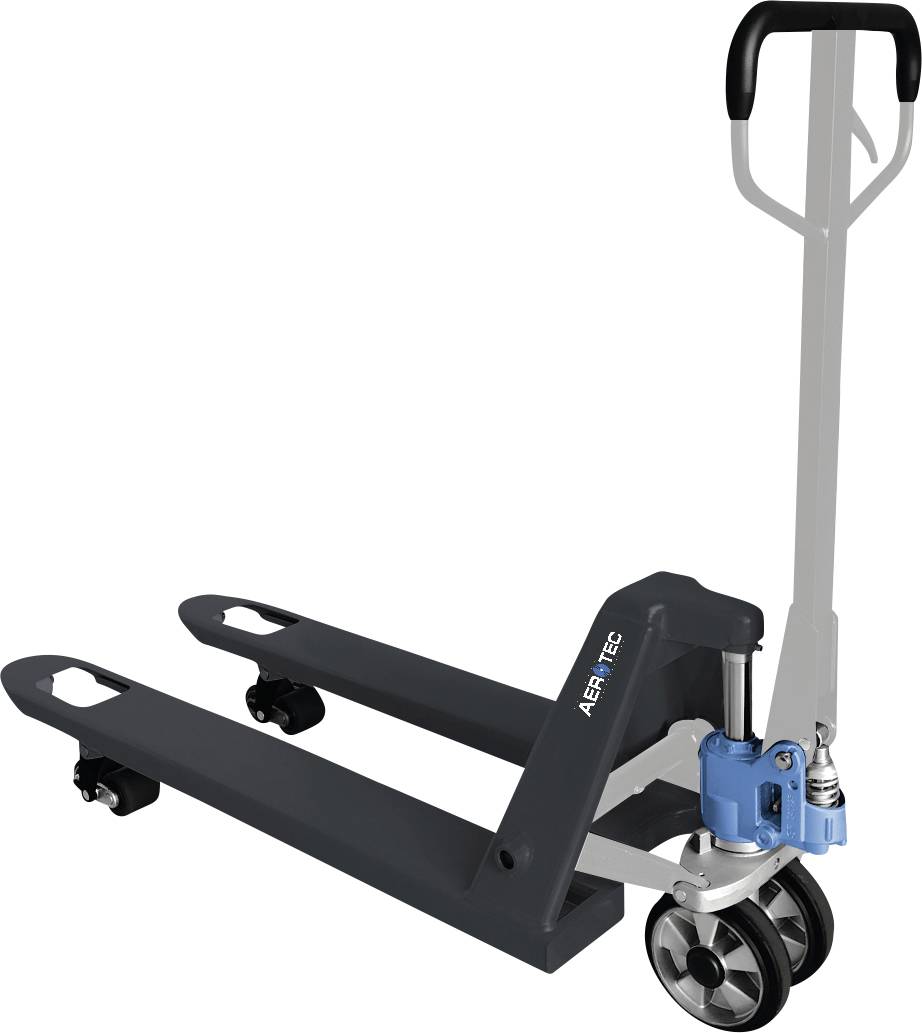

Aerotec PHWA 2508 Profi-pallet truck
- Lifting, lowering and neutral position can be operated via one-hand lever
- Comes with a foot release lever for flexible lowering of loaded pallets by foot
- Low-friction hydraulic pump with hard chrome-plated piston and relief valve
- Lowering speed adjustable in a continuously variable manner using a sensitive drain valve
- Light method even of heavy loads thanks to extra-soft aluminum casters with full rubber surfaces and polyurethane tandem rollers
- Robust ball bearings in all wheels and wheels
- Steel frame and fork in very stable and torsion resistant shell construction
- Ergonomically shaped tongue with plastic jacket on grip
- Feed and return rollers for easy retraction and extension of pallets
Technical specifications
- Bearing width 540 mm
- Turning radius 1390 mm
- Steering angle 210 degrees
- Stroke per pump movement 9 mm
- Product type
Pallet truck
- Max. load capacity
25000 kg
- Dim
(L x W x H) 1480 x 540 x 1240 mm
- Weight
64 kg
- Yoke length
1150 mm
- Upstroke (max.)
200 mm
- Upstroke (min.)
85 mm
- Width
540 mm
- Height
1240 mm
- Length
1480 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3630450 Aerotec 69002064 Pallet truck Load capacity (max.) 25000 kg Yoke length 1150 mm Upstroke (max.) 200 mm
Description
This high-quality pallet truck offers a reliable and efficient solution for the in-house transport of pallets and heavy loads. The practical one-hand lever makes it easy to control the functions of lifting, lowering and neutral position simply and intuitively. In addition, a standard foot release lever enables the flexible lowering of the loaded pallets, which significantly increases the working comfort.
Equipped with a smooth-running hydraulic pump, which has a hard chrome-plated piston and a pressure relief valve, this pallet truck guarantees a long service life and safe control. The lowering speed can be regulated continuously thanks to a sensitive drain valve, WAS enables a precise working.
The easy procedure, even with heavy loads, is made easier by extra-soft aluminum swivel rollers with full rubber support surfaces and robust polyurethane tandem fork rollers. All wheels and casters are equipped with robust ball bearings that ensure particularly smooth operation.
In addition, the lift truck features a particularly stable and rigid steel frame in shell construction that ensures durability and safety. The ergonomically shaped drawbar with a plastic jacket on the handle allows for a comfortable and secure grip, while the entry and discharge rollers make it easier to open and extend pallets in particular.
This text is machine translated.
Equipped with a smooth-running hydraulic pump, which has a hard chrome-plated piston and a pressure relief valve, this pallet truck guarantees a long service life and safe control. The lowering speed can be regulated continuously thanks to a sensitive drain valve, WAS enables a precise working.
The easy procedure, even with heavy loads, is made easier by extra-soft aluminum swivel rollers with full rubber support surfaces and robust polyurethane tandem fork rollers. All wheels and casters are equipped with robust ball bearings that ensure particularly smooth operation.
In addition, the lift truck features a particularly stable and rigid steel frame in shell construction that ensures durability and safety. The ergonomically shaped drawbar with a plastic jacket on the handle allows for a comfortable and secure grip, while the entry and discharge rollers make it easier to open and extend pallets in particular.
This text is machine translated.
Features
- Steering roller material rubber
- Fork roller material Polyurethane
