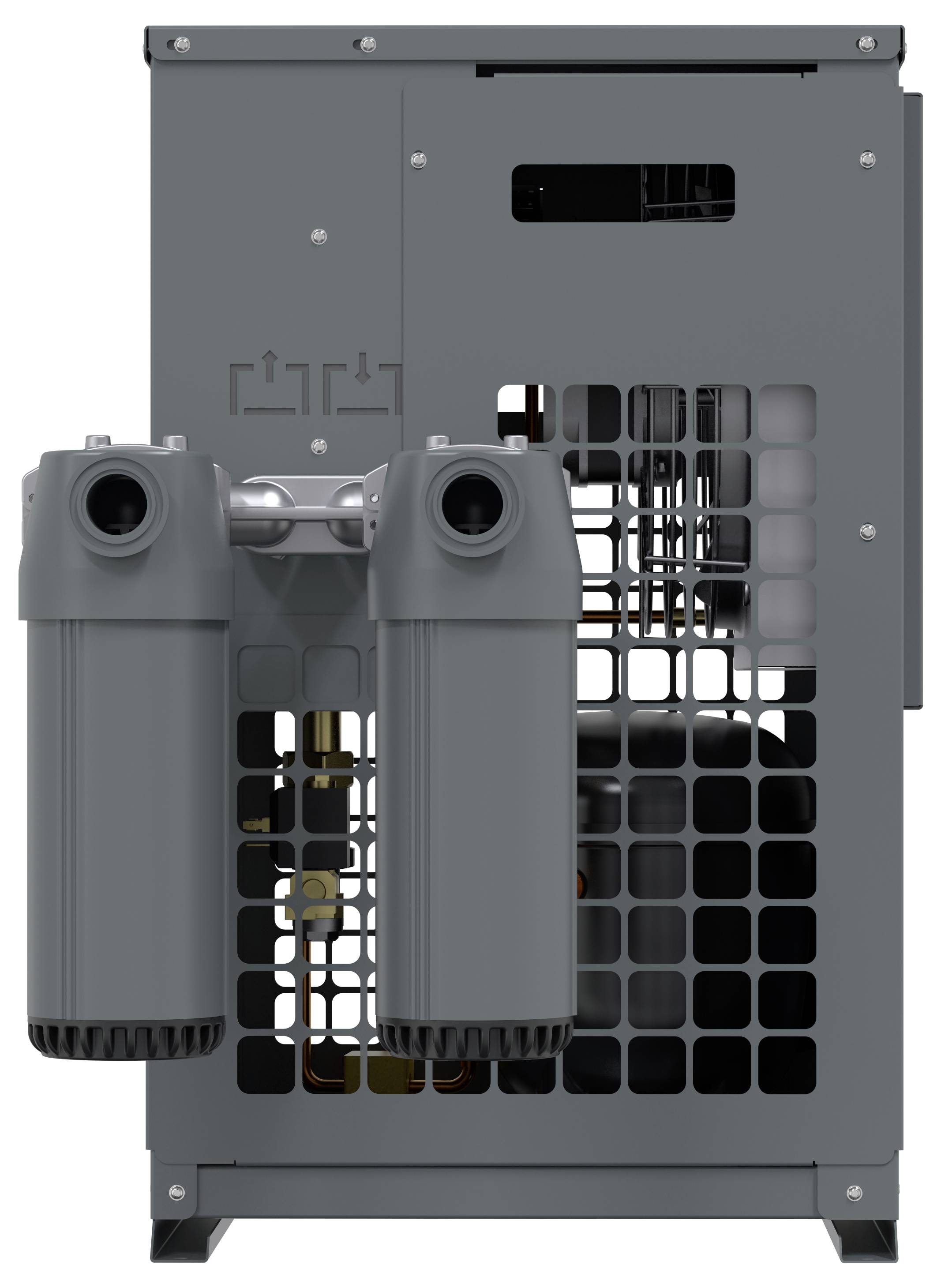

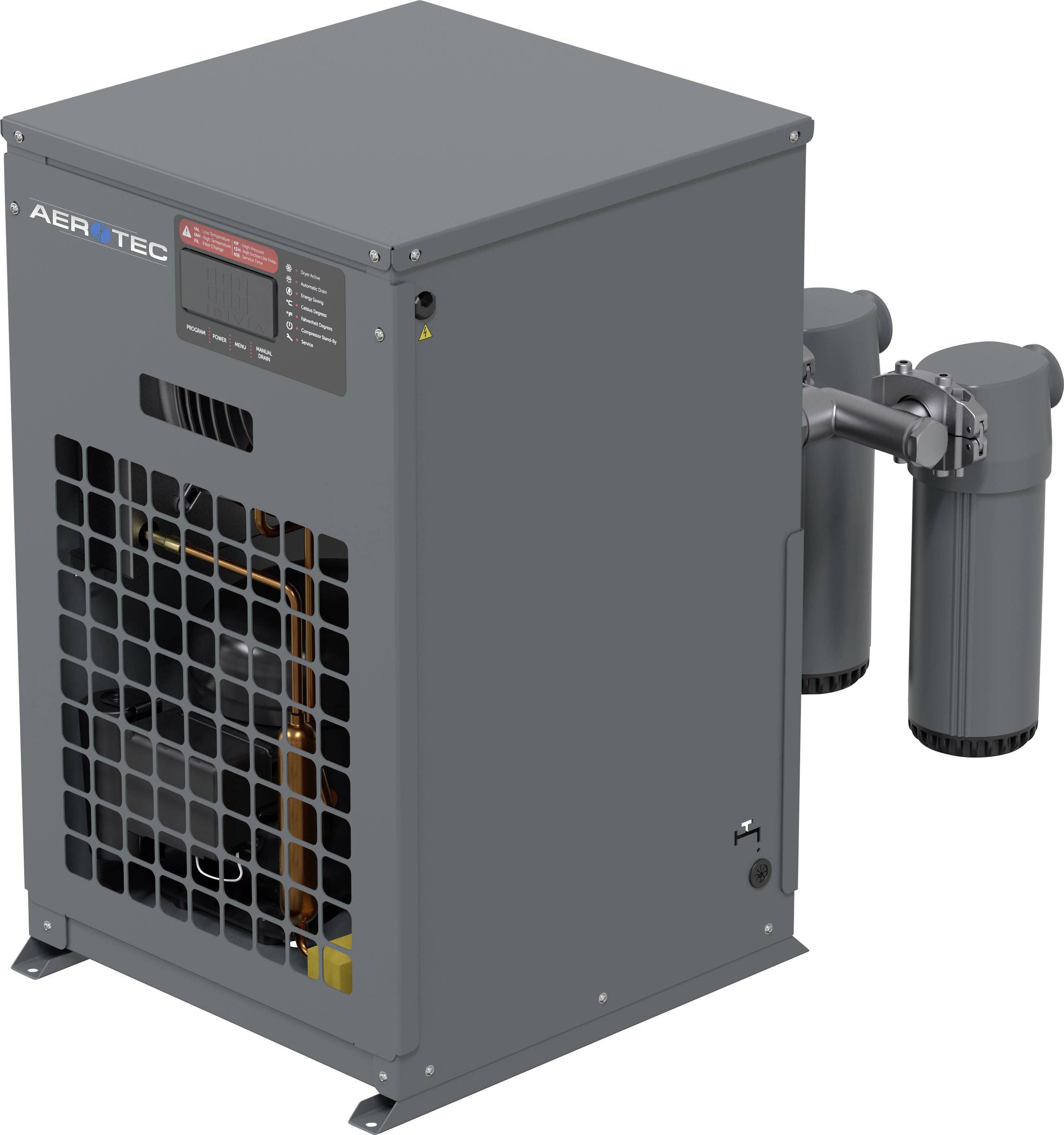

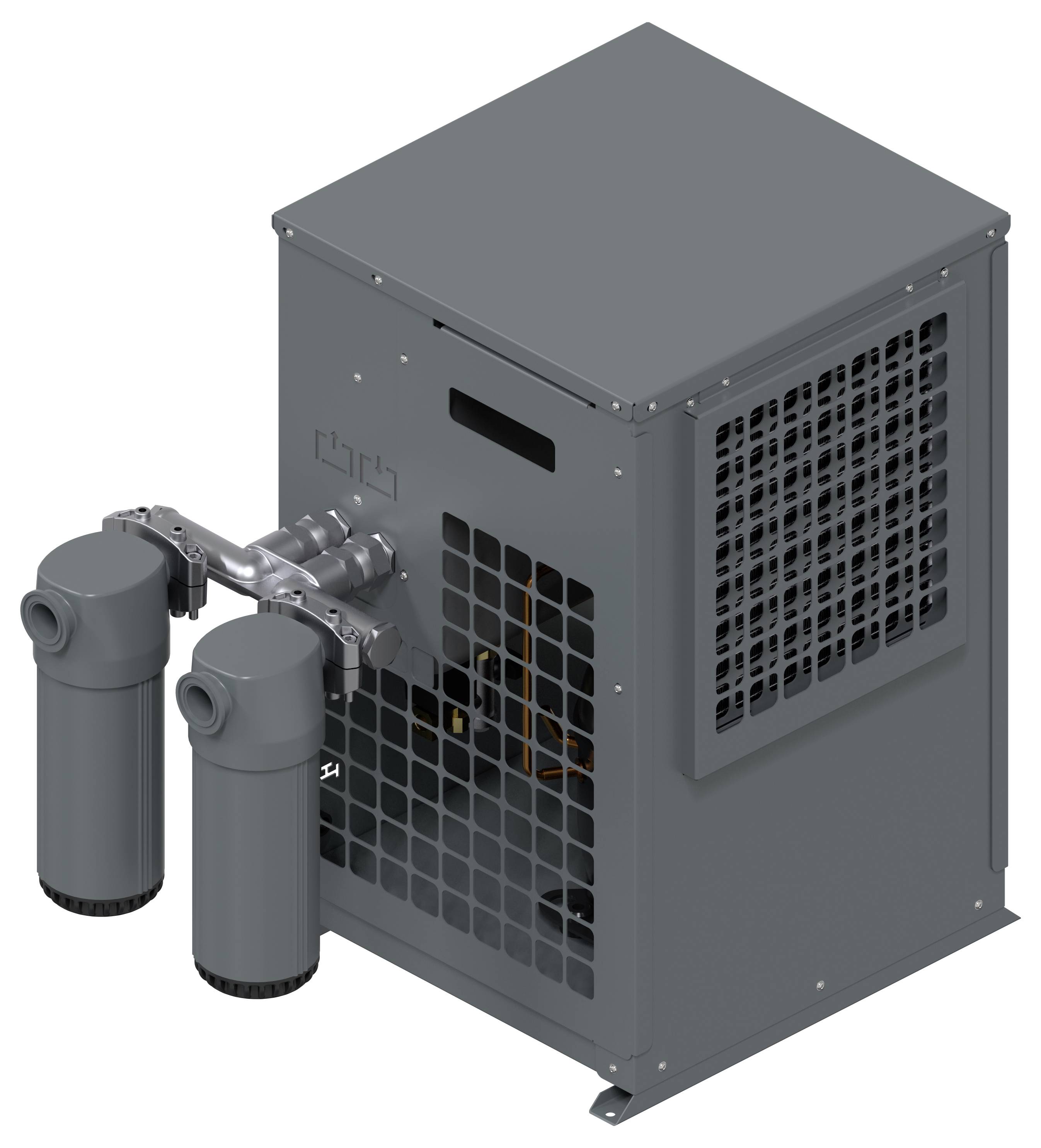

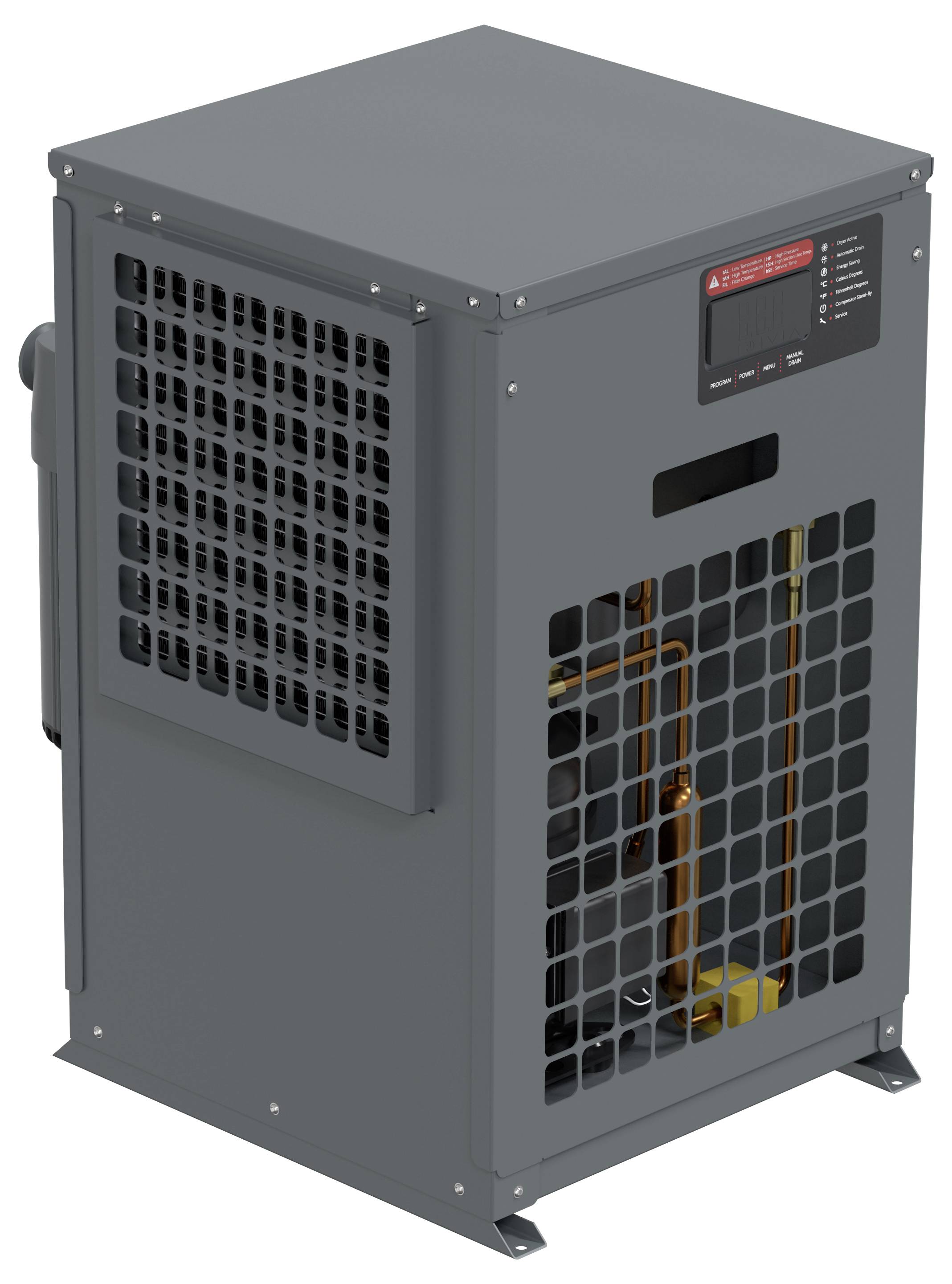

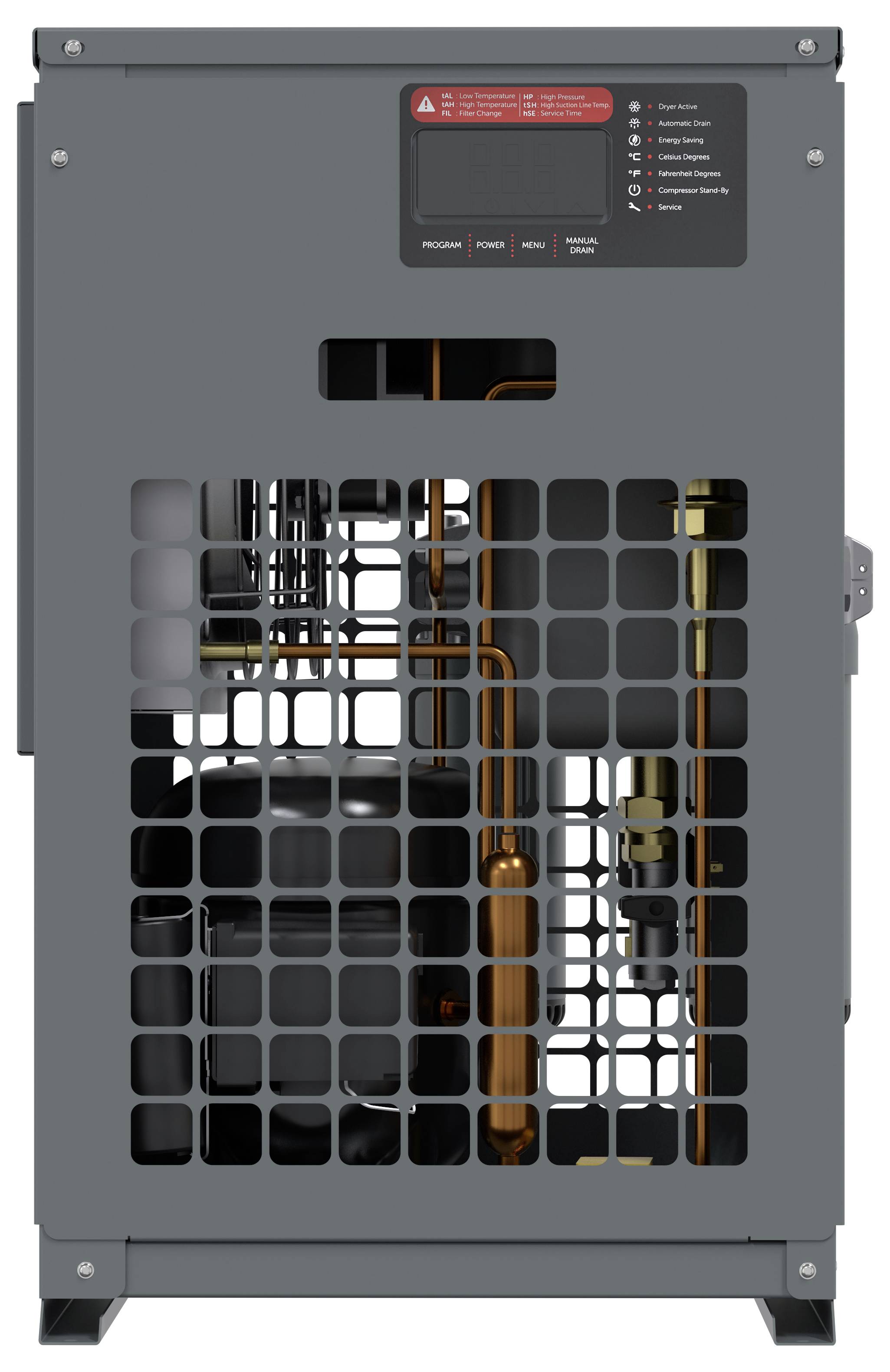

Aerotec Aerotec Aerodry 500 Pneumatic refrigerated air dryer 14 bar
EAN:
Part number:
Item no:
Technical specifications
- Max pressure 14 bar
- Power consumption 0.6 kW
- Max. Compressed air intake temperature 60 degrees Celsius
- Ambient temperature range 5 - 50 degrees Celsius
- Connection voltage 230 V.
- Network frequency 50 Hz
- Product type
Pneumatic refrigerated air dryer
- Air consumption
500 l/min
- Max. operating pressure
14 bar
- Weight
21 kg
- Connector
1/2" (12,7 mm)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3720868 Aerotec Aerotec Aerodry 500 Pneumatic refrigerated air dryer 14 bar
Description
Owing to the click system covers each side part can be unlocked quickly and easily without tools. There is a constant pressure dewpoint within the operating range. The dryers are standard including pre-filters and micro-filters. This results in lower installation costs for the ISO 8573-1 / 1.4.1 standard. The filter change interval is displayed in the control system. Our refrigeration dryers are equipped with a new high-quality discharge unit which has been integrated on the controller. As such, faults are directly transmitted - for perfect efficiency and operational safety.
