Buy Aerotec Air compressor 2010199 15 bar

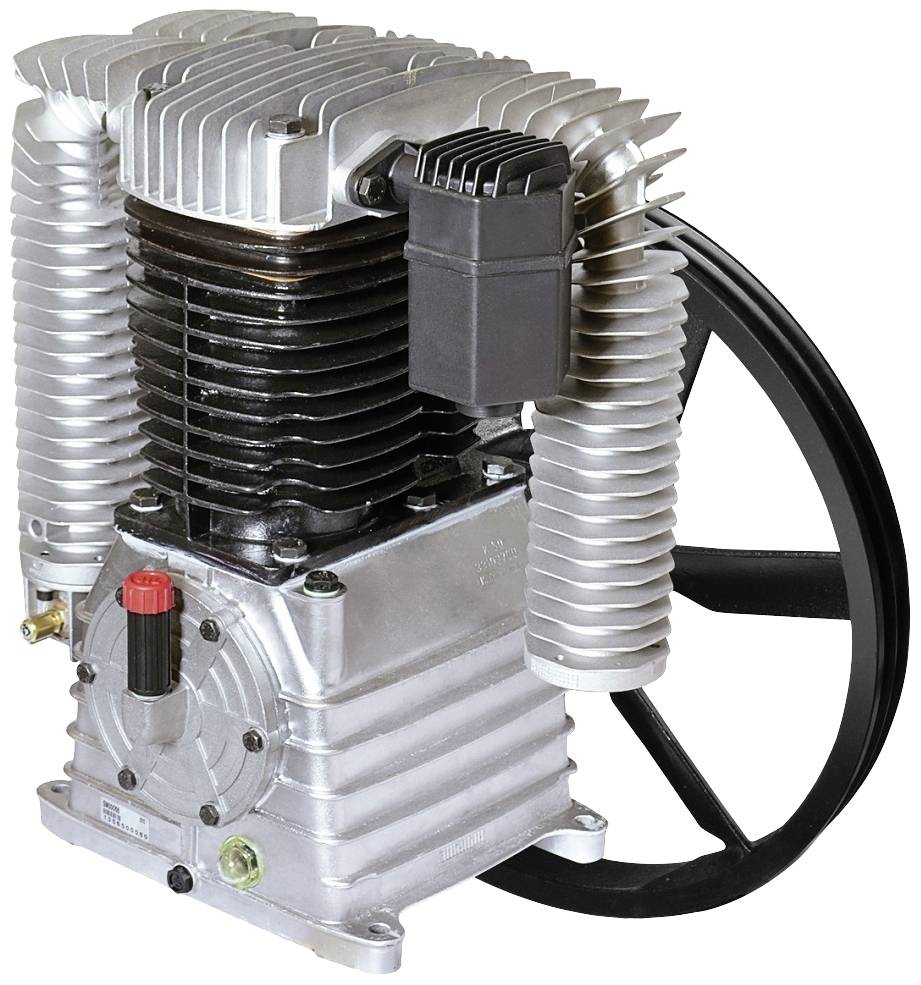

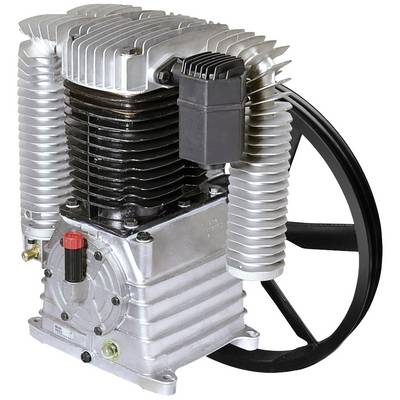

Piston compressor with multiple cooling fins and a black wheel on the right. Primarily used in machinery or workshops.

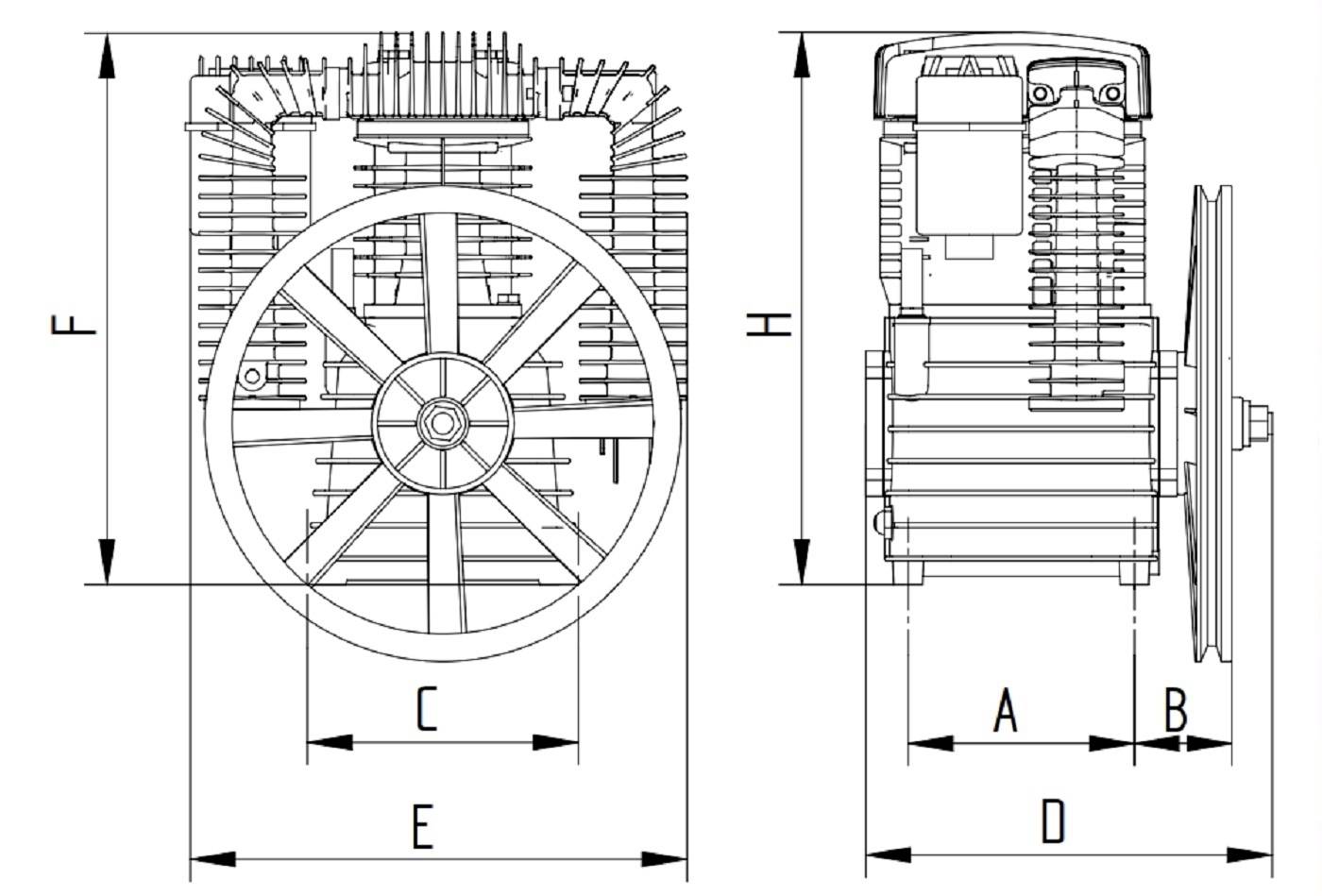

'Technical drawing of an electric motor with dimensions F, H, C, E, A, and B. Shows side and front view of the motor.'

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Air compressor

No. of cylinders: 2 pc(s)

: 7.5 kW
10 W

Vaccum power: 1200 l/min

Flow rate: 950 l/min

Operation pressure: 15 bar

Rotational speed (max.): 1400 U/min

Operating voltage: 400 V

Length: 660 mm

Width: 460 mm

Height: 420 mm

Weight: 71500 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996993 Aerotec Air compressor 2010199 15 bar

User & Safety Instructions

User & Safety Instructions 2996993 Aerotec Air compressor 2010199 15 bar

Description

This industrial unit with V-belt drive is particularly robust and is particularly designed for the demanding applications for trade and industry. Equipped with massive stainless steel valves, cylinder heads made of cast iron and die-cast coal-cast crankshaft casing with inner coating is perfectly suitable to master the hard professional application.
