Buy Aerotec Air compressor 2010200 15 bar

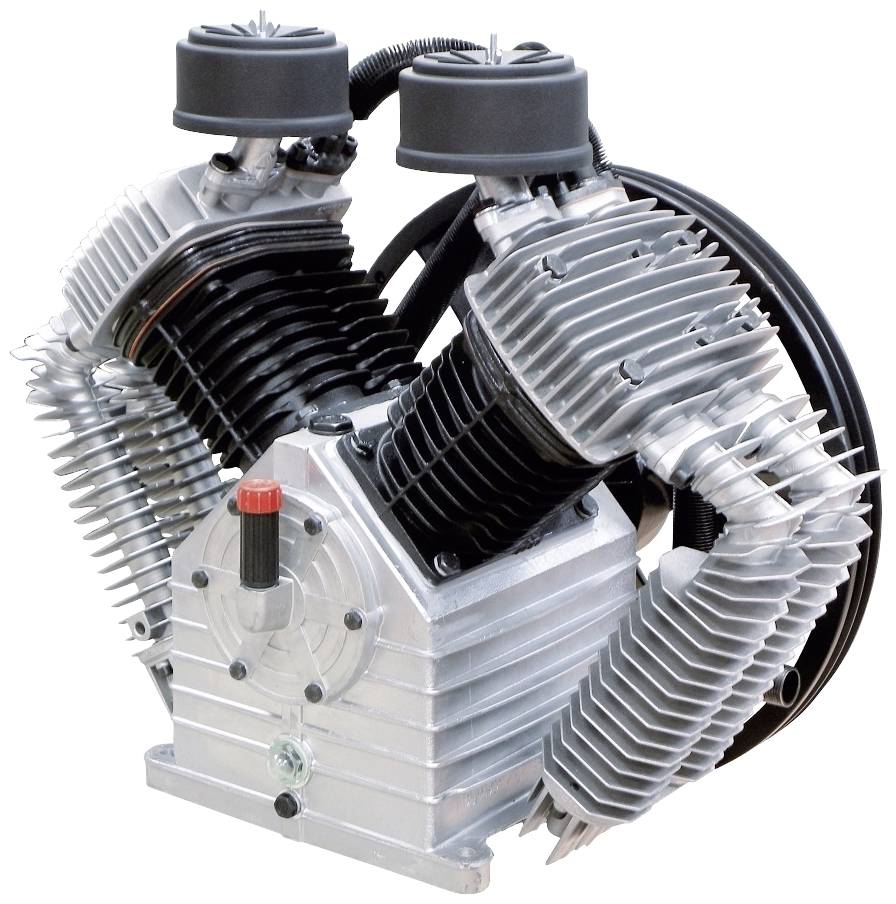

A silver V-engine with two black cylinders and cooling fins. Two round air filters on top. A red button at the front of the motor.

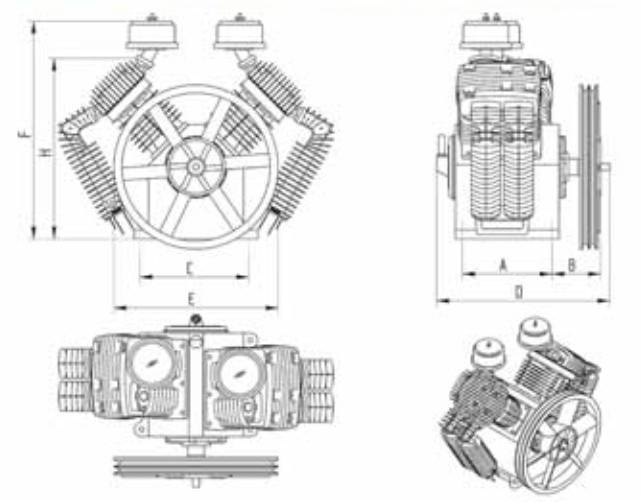

Technical drawing of a V-engine with multiple views, dimensions, and details of the cylinder arrangement and engine components.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Air compressor

No. of cylinders: 4 pc(s)

: 7.5 kW
10 kW

Vaccum power: 1600 l/min

Flow rate: 1300 l/min

Operation pressure: 15 bar

Rotational speed (max.): 1400 U/min

Operating voltage: 400 V

Length: 600 mm

Width: 735 mm

Height: 445 mm

Weight: 81000 g

Documents & Downloads

Datasheet

Datasheet 2996994 Aerotec Air compressor 2010200 15 bar

User & Safety Instructions

User & Safety Instructions 2996994 Aerotec Air compressor 2010200 15 bar

Description

This industrial unit with V-belt drive is particularly robust and is particularly designed for the demanding applications for trade and industry. Equipped with massive stainless steel valves, cylinder heads made of cast iron and die-cast coal-cast crankshaft casing with inner coating is perfectly suitable to master the hard professional application.

This text is machine translated.
