Buy Aerotec Air compressor 2010299 15 bar

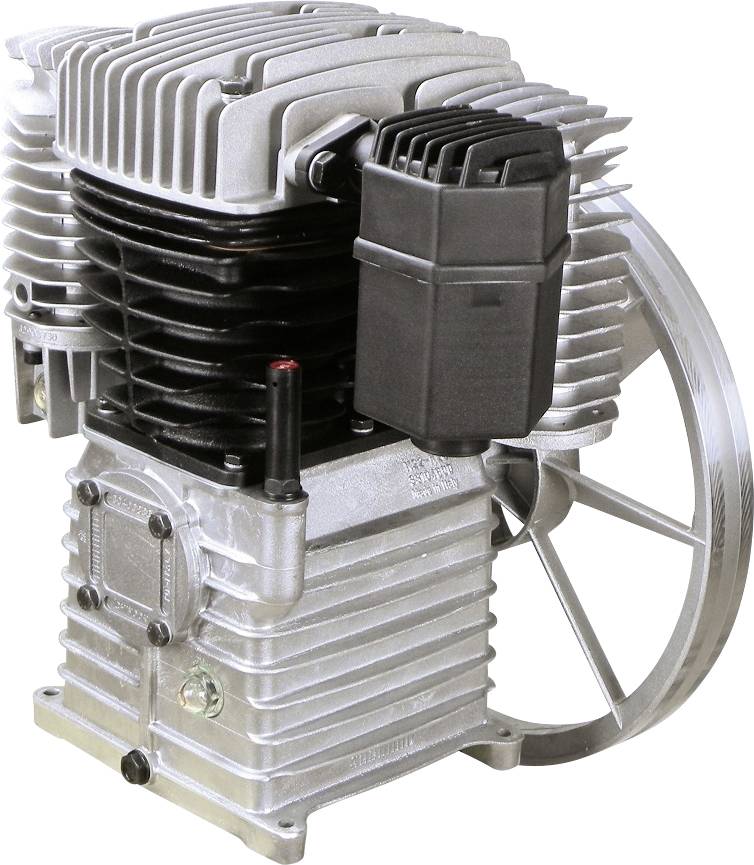

Metal air compressor pump with finned cylinder head, black motor housing, and large flywheel on a white background.

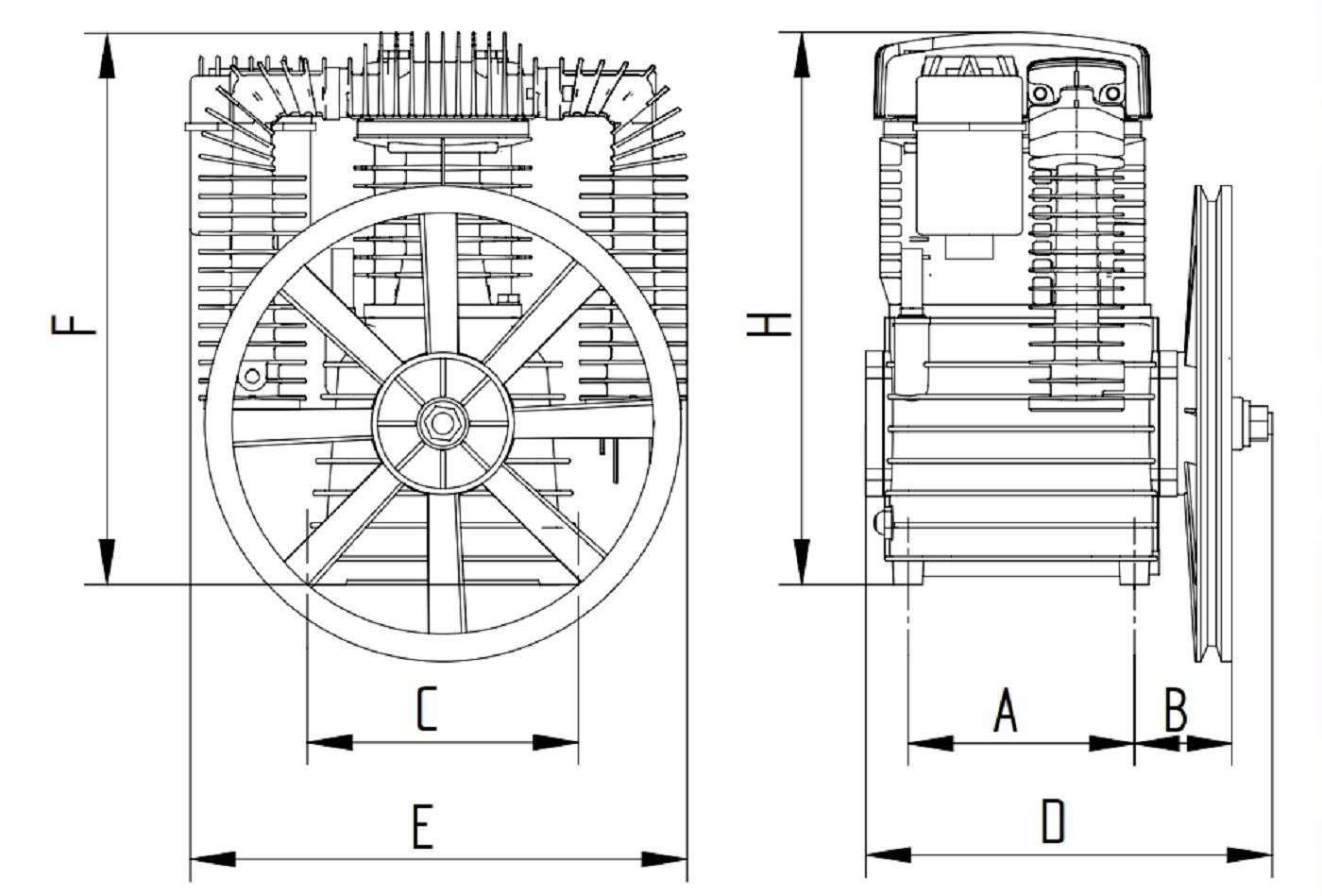

Technical drawing of an electric motor with dimensional specifications. Left: Front view with wheel (F, C, E). Right: Side view (A, B, H).

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Air compressor

No. of cylinders: 2 pc(s)

: 3 kW
4 kW

Vaccum power: 510 l/min

Flow rate: 410 l/min

Operation pressure: 15 bar

Rotational speed (max.): 1400 U/min

Operating voltage: 400 V

Length: 422 mm

Width: 415 mm

Height: 310 mm

Weight: 24000 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996991 Aerotec Air compressor 2010299 15 bar

User & Safety Instructions

User & Safety Instructions 2996991 Aerotec Air compressor 2010299 15 bar

Description

This industrial unit with V-belt drive is particularly robust and is particularly designed for the demanding applications for trade and industry. Equipped with massive stainless steel valves, cylinder heads made of cast iron and die-cast coal-cast crankshaft casing with inner coating is perfectly suitable to master the hard professional application.

This text is machine translated.
