Aerotec Air compressor 201401091 330 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Air compressor
- No. of cylinders
4 pc(s)
3 kW
- Flow rate
100 l/min
- Operation pressure
330 bar
- Rotational speed (max.)
2100 U/min
- Operating voltage
400 V
- Length
580 mm
- Width
410 mm
- Height
410 mm
- Weight
42000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996999 Aerotec Air compressor 201401091 330 bar
User & Safety Instructions
User & Safety Instructions 2996999 Aerotec Air compressor 201401091 330 bar
Description

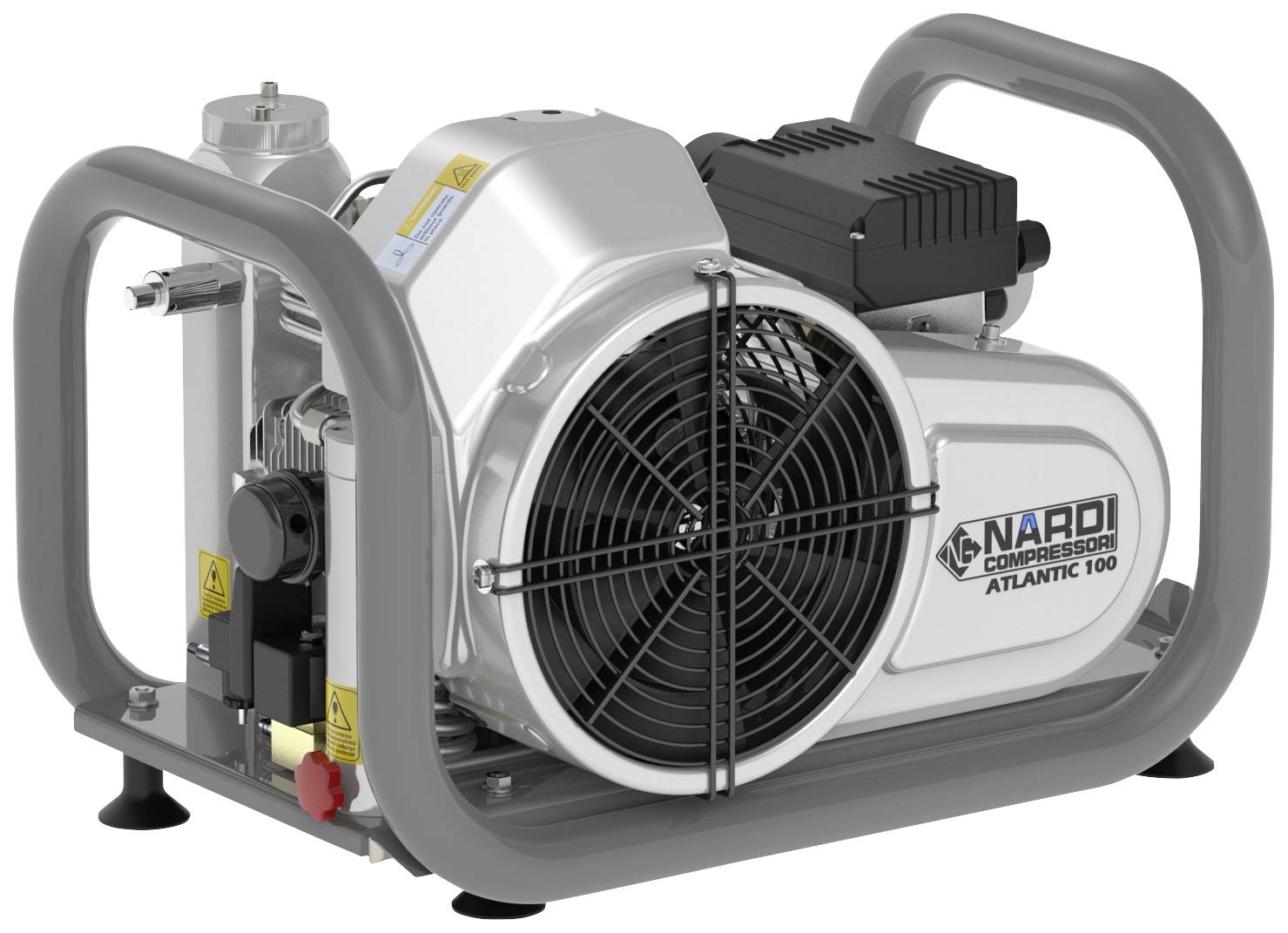

The portable air compressors are for diving schools, professional divers and commercial operators of filling stations, which are particularly important for the robustness of a compressor. Especially light through the aluminum frame, thus best protection against corrosion! With its stainless steel finish, it can withstand even the toughest conditions. The built-in hour meter enables exact adherence to service intervals. Ideal also for filling nail cartridges and suitable for shooting.
This text is machine translated.
This text is machine translated.
Features
- All parts are provided with an epoxy coating to achieve exceptional corrosion resistance
- The cooling coils of the individual compression stages help to achieve optimum condensate separation
- Needle roller bearing for low-vibration operation
- Optional pressure-free condensate drain
- Drive via V-belt
Scope of delivery
- Charging valve
- Filling hose
