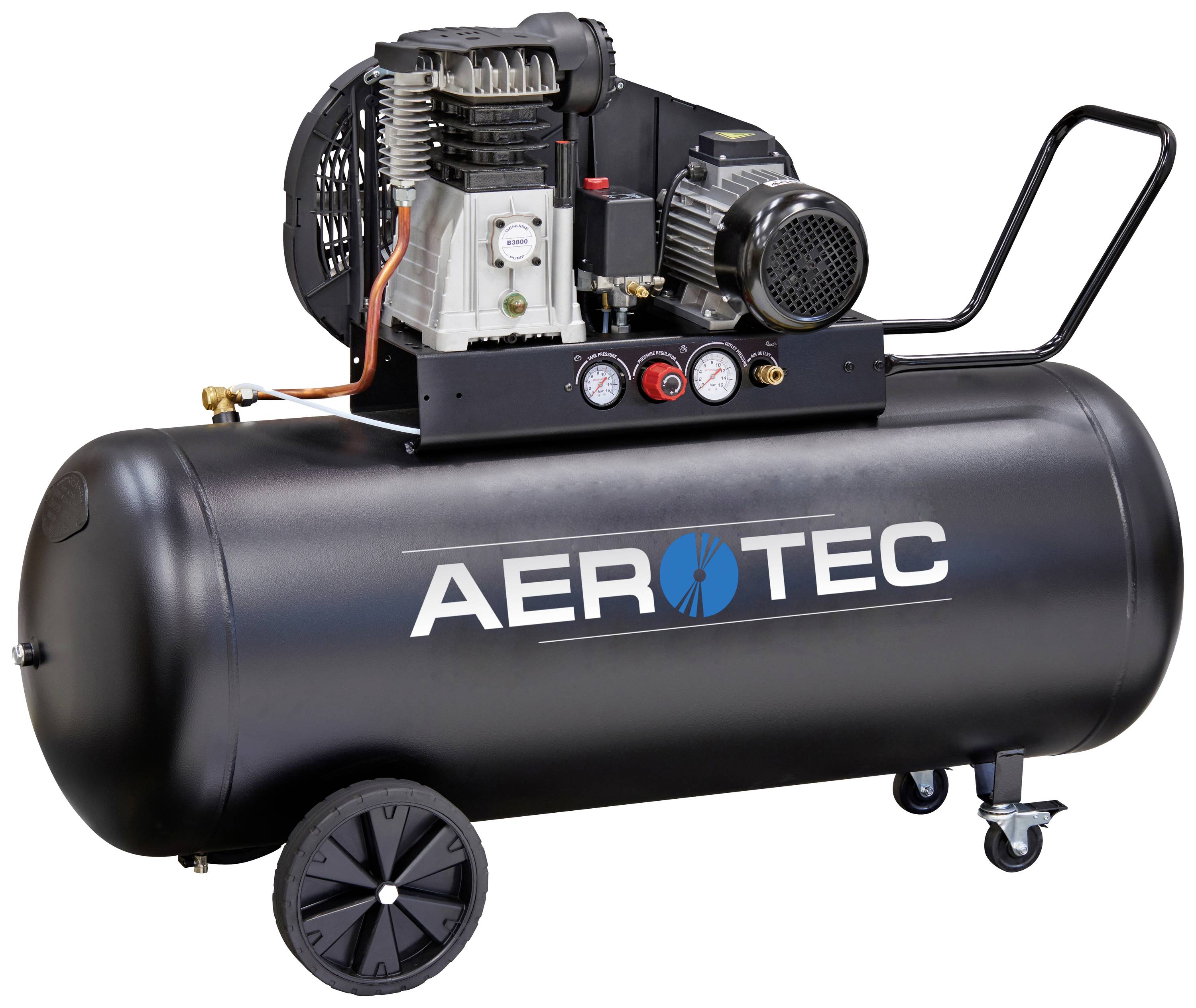

Aerotec Air compressor 251200002 200 l 10 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Aerotec 600-200 s-TECH CT4 - 400 V
- Boiler volume: 200 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
3 kW
- Vaccum power
550 l/min
- Flow rate
330 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1400 U/min
- Boiler volume
200 l
- Operating voltage
400 V
- Length
1440 mm
- Width
480 mm
- Height
1130 mm
- Weight
131000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996982 Aerotec Air compressor 251200002 200 l 10 bar
User & Safety Instructions
User & Safety Instructions 2996982 Aerotec Air compressor 251200002 200 l 10 bar
Description
The TECHLINE models have a protected pressure gauge and control unit. The 63 mm large boiler pressure and release manometer are mounted in the console including a large pressure controller. This allows the user to view all the necessary pressure information at a single glance and actively protects the steel console against damage. The addition S means that the compressor is equipped with a new suction filter system which reduces the suction noise to a minimum. This creates a very pleasant background noise.
This text is machine translated.
This text is machine translated.
Features
- Mobile piston compressor in oil-lubricated version
- Slow-running, V-belt driven 2 cylinder 1 stage series-unit
- Startup-relief via pressure switch control

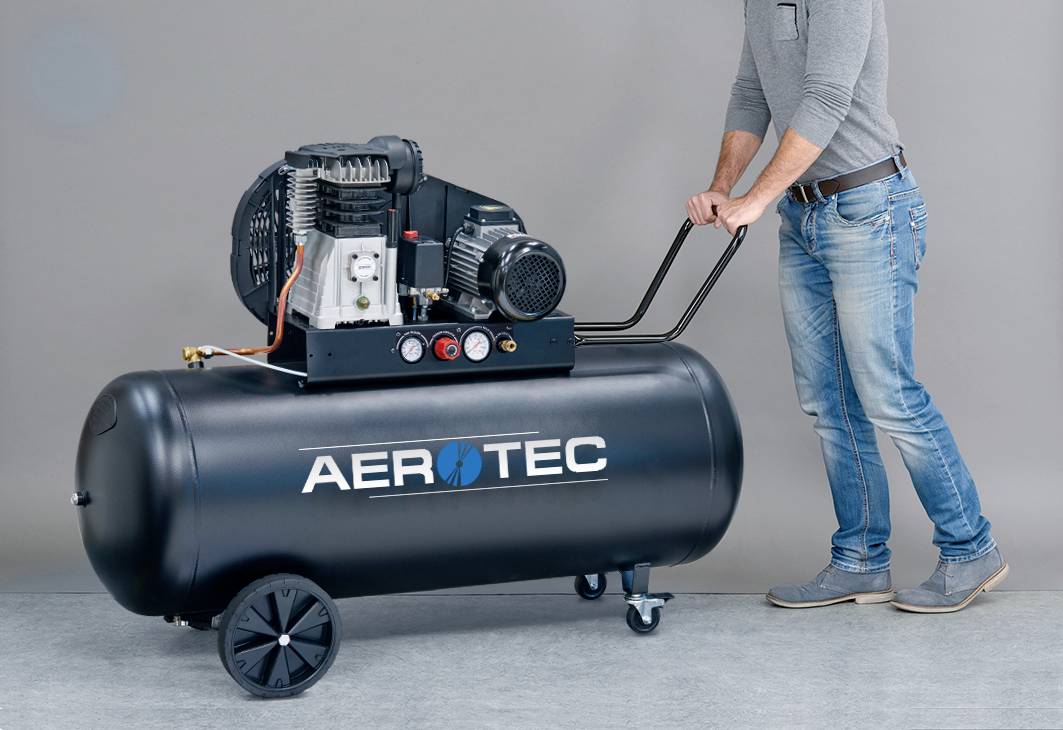

- With large profiled, ball-bearing hard rubber wheels and casters for easy handling
- The condensate is drained by ball valve
- Delivery inclusive of phase changing plug
