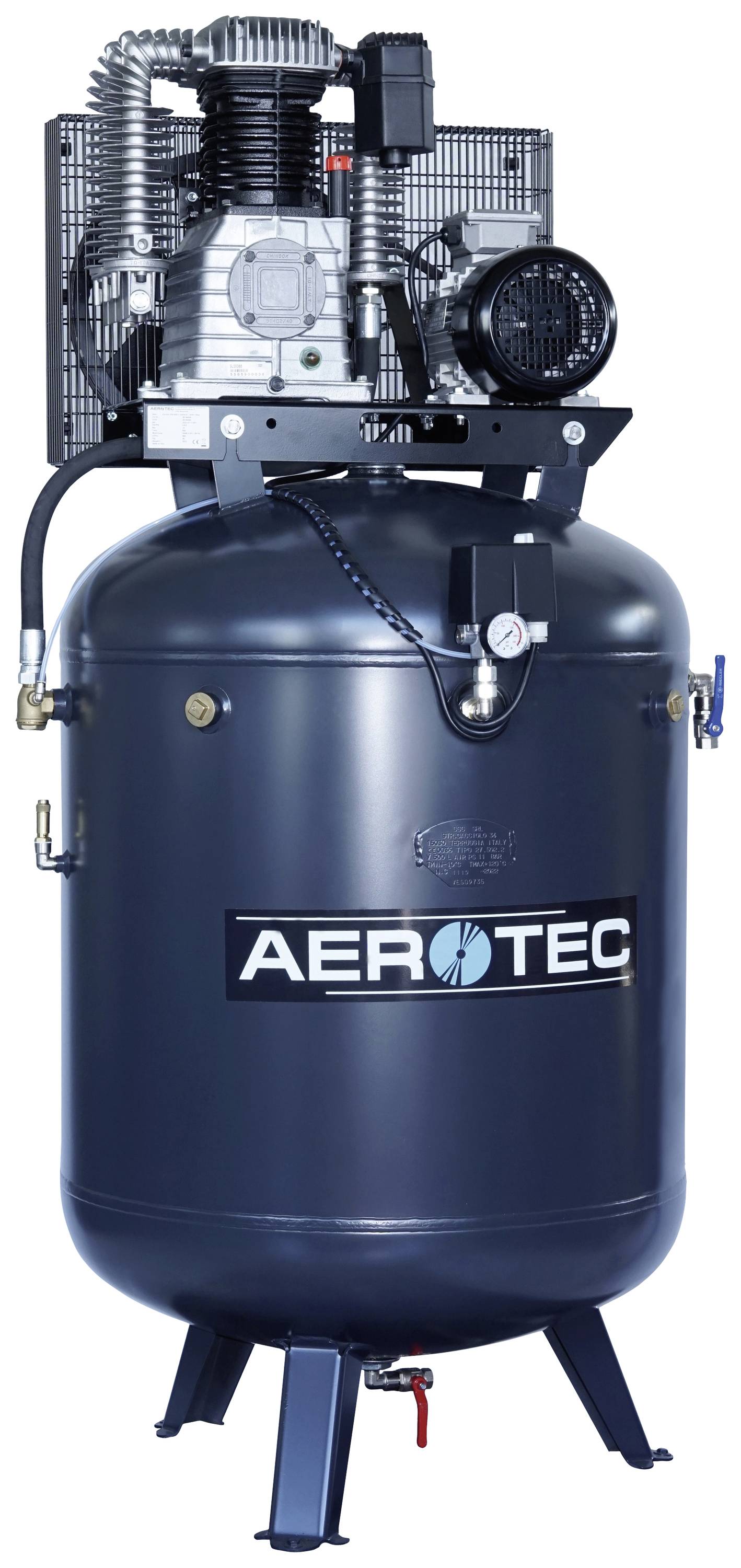

Aerotec Air compressor 25150001 500 l 15 bar
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Aerotec 820-500 l standing - 4 kW - 15 bar
- Boiler volume: 500 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
4 kW
- Vaccum power
650 l/min
- Flow rate
470 l/min
- Operation pressure
15 bar
- Rotational speed (max.)
900 U/min
- Boiler volume
500 l
- Operating voltage
400 V
- Length
2270 mm
- Width
860 mm
- Height
1710 mm
- Weight
235000 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996986 Aerotec Air compressor 25150001 500 l 15 bar
User & Safety Instructions
User & Safety Instructions 2996986 Aerotec Air compressor 25150001 500 l 15 bar
Description
Features
- Piston compressor in oil-lubricated version
- The all-rounder for the workshop with large, tank volume
- Fan belt operated 2 cylinder 2 stage series-unit
- Starting relief via Condor pressure switch control
- The condensate is drained by ball valve
- Motor for industrial use
- This text is machine translated.
