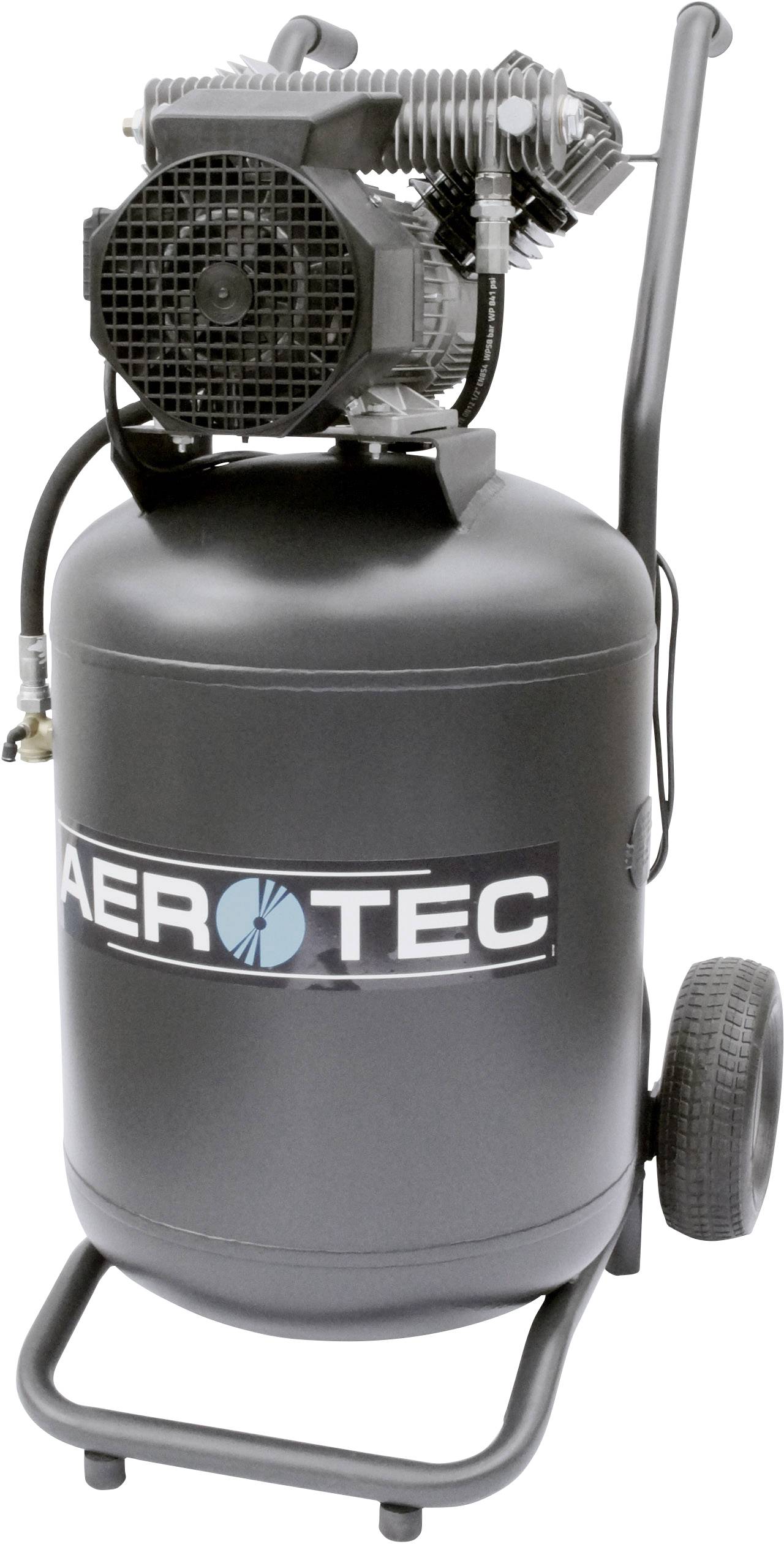

Aerotec Air compressor 430-90 WORKER 90 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
AEROTEC 430-90 WORKER- 400 Volt
- Boiler volume: 90 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2 pc(s)
1.8 kW
- Vaccum power
390 l/min
- Flow rate
250 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1400 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- Length
600 mm
- Width
750 mm
- Height
1150 mm
- Weight
75 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187827 Aerotec Air compressor 430-90 WORKER 90 l 10 bar
Description
This special direct-driven oil-lubricated compressor with 1-stage industrial unit is a mix of an assembly compressor and a stationary system. The 430-90 WORKER is extra quiet and suitable for the toughest conditions in the trade.
This text is machine translated.
This text is machine translated.
Features
- The sack truck system enables easy and fast transport
- Very space-saving due to its compact design
- Perfectly suitable on the construction site or for use on service vehicles
- With 90 liter powder-coated compressed air tank
- Incl. Filter pressure regulator with quick coupling NW 7.2
- Direct-driven 2-cylinder long-life unit
- Start-up relief via Condor pressure switch
- The condensate is drained by means of a ball valve
- Robust professional compressor.
