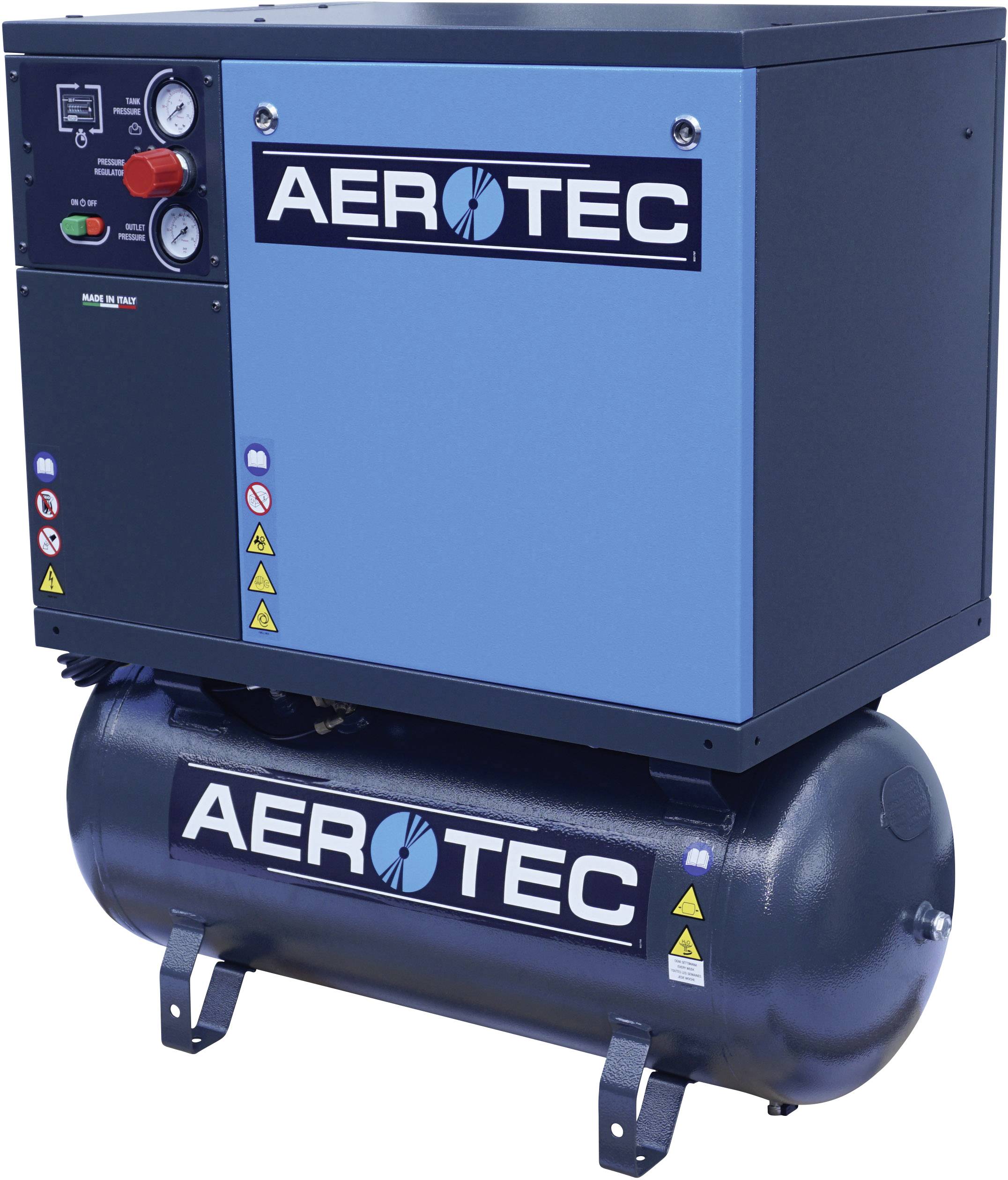

Aerotec Air compressor 520-90 SUPERSILENT 90 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details
AEROTEC 520-90 SUPERSILENT - 400V
- Boiler volume: 90 l
Technical specifications
- Product type
Air compressor
- No. of cylinders
2
2.2 kW
- Vaccum power
450 l/min
- Flow rate
295 l/min
- Operation pressure
10 bar
- Rotational speed (max.)
1250 U/min
- Boiler volume
90 l
- Operating voltage
400 V
- Length
780 mm
- Width
510 mm
- Height
1030 mm
- Weight
135 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187828 Aerotec Air compressor 520-90 SUPERSILENT 90 l 10 bar
Description
Features
- Space-saving SILENT compressor in oil-lubricated design
- Slow running, V-belt driven 2 cylinders 1 step series unit
- Fully enclosed SILENT system optimally suitable for the interior
- Maintenance-friendly through removable casing parts
- Starting relief via solenoid valve control
- The condensation water can be drained from the outside via a drain plug
- With internal fans, in order to ensure an optimum operating temperature.
- This text is machine translated.
